Solid Carbide Compression Spiral Bits for CNC Nesting Operation

46372 Solid Carbide Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Shank x 3 Inch Long CNC Nesting Router Bit

#46372

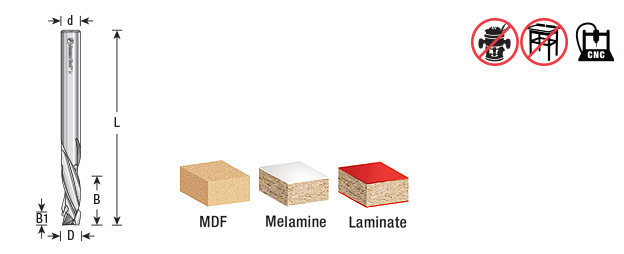

Specification
(D) Diameter1/2
(B) Cutting Height1-1/4
B123/64
(d) Shank1/2
Overall Length (L)3
Max RPM28,000
Flutes3

New generation of spiral tools for nesting operation on a CNC machine. Nesting refers to the process of laying out cutting patterns to minimize the raw material waste.

Excellent for cutting:
  • MDF
  • Melamine
  • Laminate
  • Laminated Plywood
  • Composites
  • Oriented Strand Board (OSB)*
  • Particle Board
  • Veneered Plywood



*Oriented Strand Board is an engineered wood particle board.

Featuring:


  • High clearance geometric shape for maximum feed rate
  • Free chip flow
  • Superior cut quality

Vectric compatible tool file for 46372 available for download, click here.

Solid Carbide Compression Spirals for Nesting Speed and Feed Chart

Download PDF
