Solid Carbide Ball Nose Spiral Up-Cut Router Bits

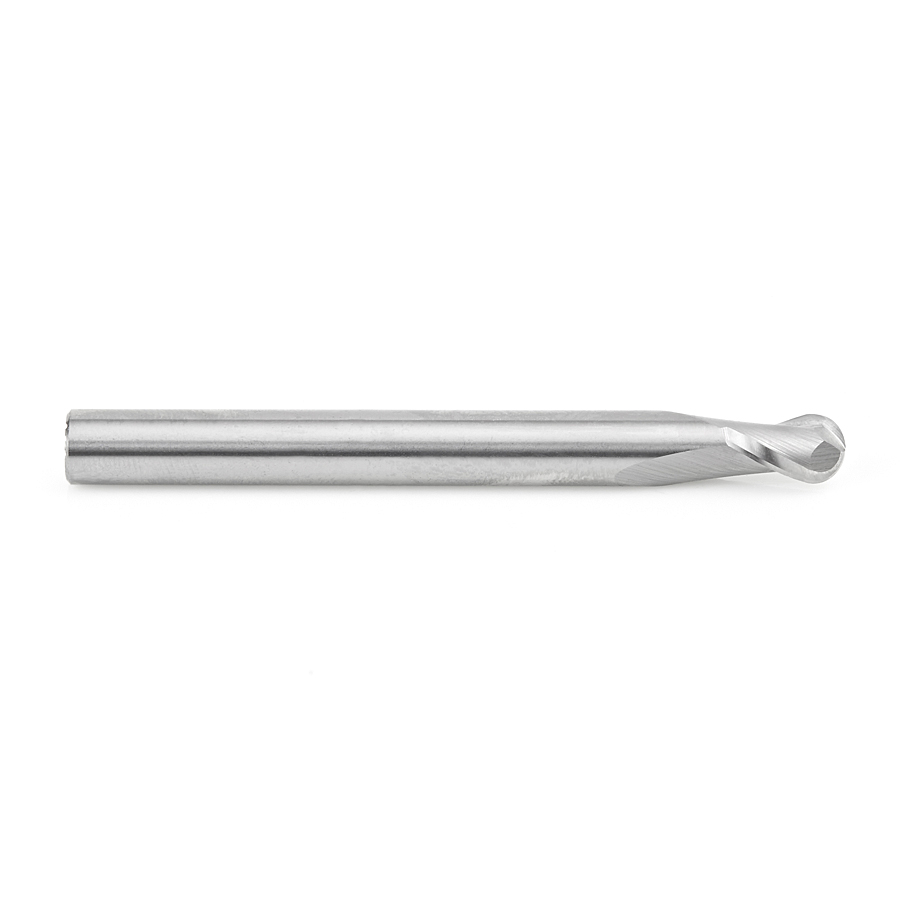

46374 Solid Carbide Up-Cut Ball Nose Spiral 1/4 Dia x 3/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit

#46374

Specification
Direction Up-Cut
(D) Diameter 1/4
(R) Radius 1/8
(B) Cutting Height 3/8
(d) Shank 1/4
Overall Length (L) 2-1/2
Flutes 2

Used for carving decorative doors and sign manufacturing. Up-Cut design leaves an excellent finish and expels chips quickly.

Excellent for Cutting:

  • Soft/Hard Wood
  • Aluminum
  • MDF
  • Soft/Hard Plastic
  • Sign Foam

Fusion Logo

Vectric and Fusion 360 compatible tool files for 46374 available for download, click here.

46374 DXF

File Size : 304.68 KB
Create account or Login to download

46374 PDF

File Size : 76.27 KB
Create account or Login to download

Solid Carbide CNC Spiral Ball Nose Speed and Feed Chart

Download PDF
