Solid Carbide Mortise Compression Spiral CNC Router Bits

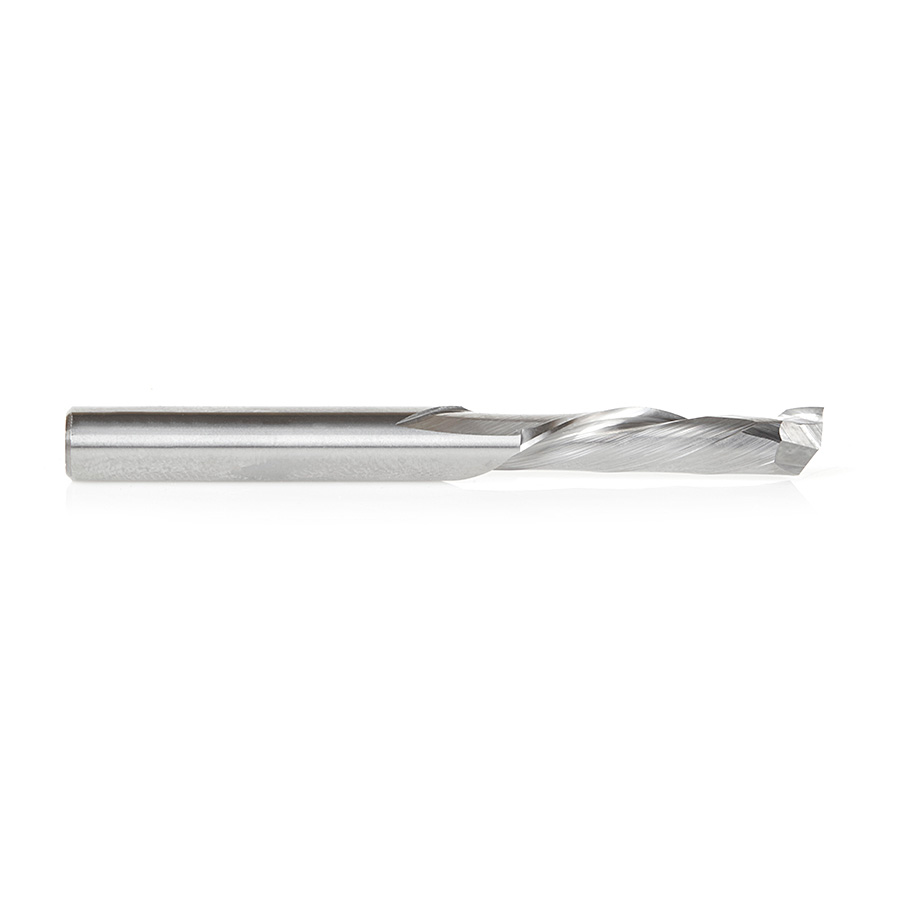

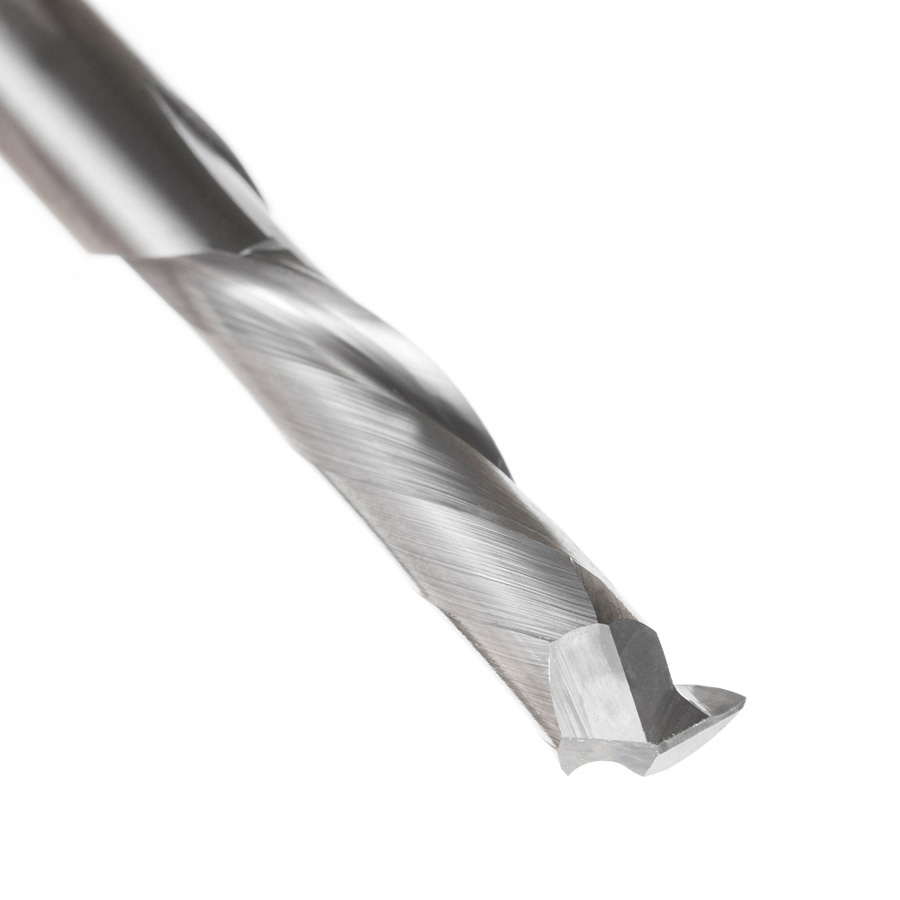

46393 CNC Solid Carbide Mortise Compression Spiral 1/4 Dia x 1 Inch x 1/4 Shank

#46393

Specification
(D) Diameter1/4
(B) Cutting Height1
B11/8
(d) Shank1/4
Overall Length (L)2-1/2
Flutes1

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising, grooving and dado.

Excellent for cutting:

  • MDF/HDF
  • Laminate
  • Laminated Plywood
  • Melamine
  • Particle Board
  • Softwood/Hardwood
  • Veneered Plywood

Recommended RPM 20,000-21,000.

Vectric compatible tool file for 46393 available for download, click here.

Product Questions

Question on 46393 CNC Solid Carbide Mortise Compression Spiral 1/4 Dia x 1 Inch x 1/4 Shank


Create Account or Login to ask a question

Solid Carbide Mortise Compression Spirals Speed and Feed Chart

Download PDF
