Solid Carbide Slow Spiral Flute Plunge Down-Cut Router Bits

46432 Solid Carbide Slow Spiral Flute Plunge 1/2 Dia x 1 Inch x 1/2 Shank Router Bit

#46432

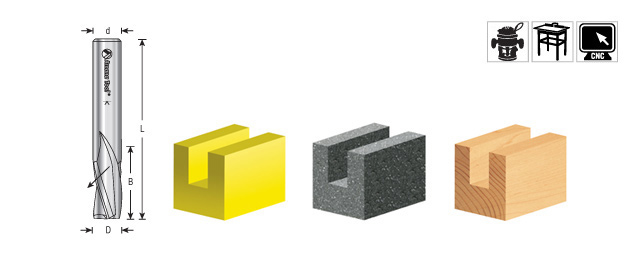

Specification
Direction Down-Cut
Diameter (D) 1/2
Cutting Height (B) 1
Shank (d) 1/2
Overall Length (L) 3
Flutes 3

Specially designed to provide an excellent finish in hardwoods, solid surface and hard plastics.The 'Down-Cut' provides an excellent finish on the top of the surface.

Specially designed to provide an excellent finish in:

  • Acrylonitrile Butadiene Styrene (ABS)
  • Fomex®
  • Hard Plastics
  • Hardwood
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Perspex® Cast Acrylic Sheet
  • Poly (methyl methacrylate) (PMMA)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Sign Foam
  • Solid Surface
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Urethane

Recommended RPM: 20,000-21,000.

Solid Carbide Slow Spiral Flute Plunge Speed and Feed Chart

Download PDF
