Solid Carbide Spiral Plunge Down-Cut CNC Router Bits

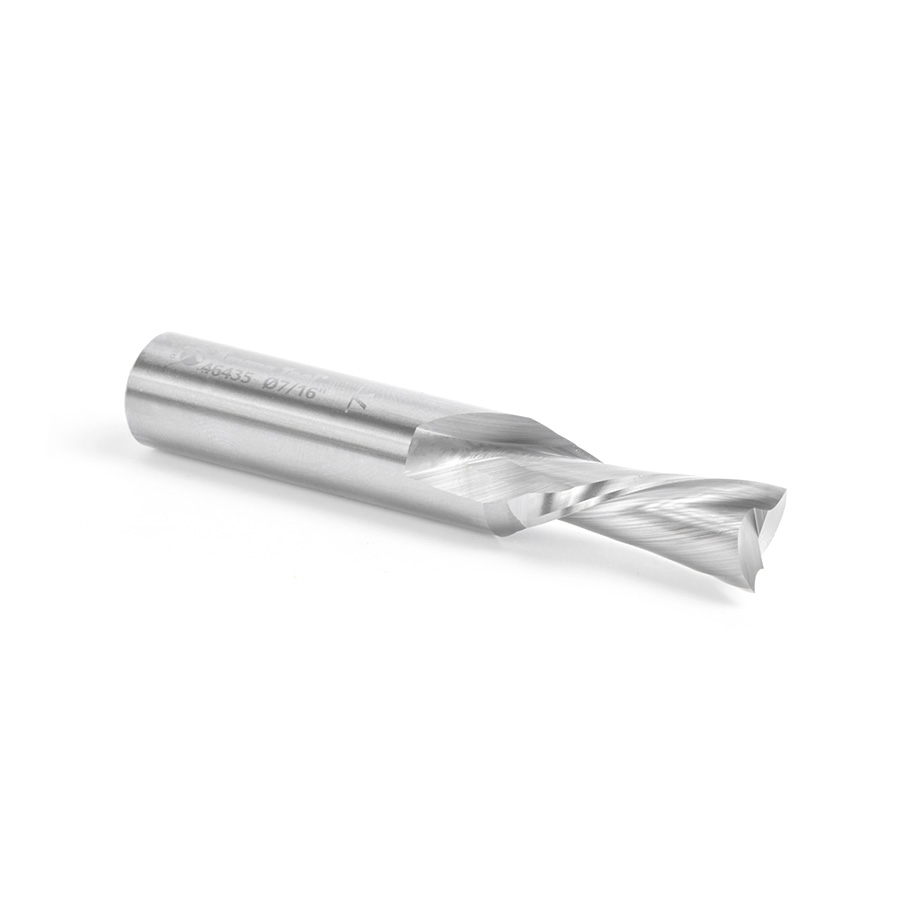

46435 Solid Carbide Spiral Plunge 7/16 Dia x 1 Inch x 1/2 Shank Down-Cut

#46435

Specification
DirectionDown-Cut
(D) Diameter7/16
(B) Cutting Height1
(d) Shank1/2
Overall Length (L)3

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Vectric compatible tool file for 46435 available for download, click here.

Product Questions

Question on 46435 Solid Carbide Spiral Plunge 7/16 Dia x 1 Inch x 1/2 Shank Down-Cut


Create Account or Login to ask a question

Solid Carbide Spiral Flute Plunge Speed and Feed Chart

Download PDF
