Solid Carbide Foam Cutting Square End Spiral Router Bits

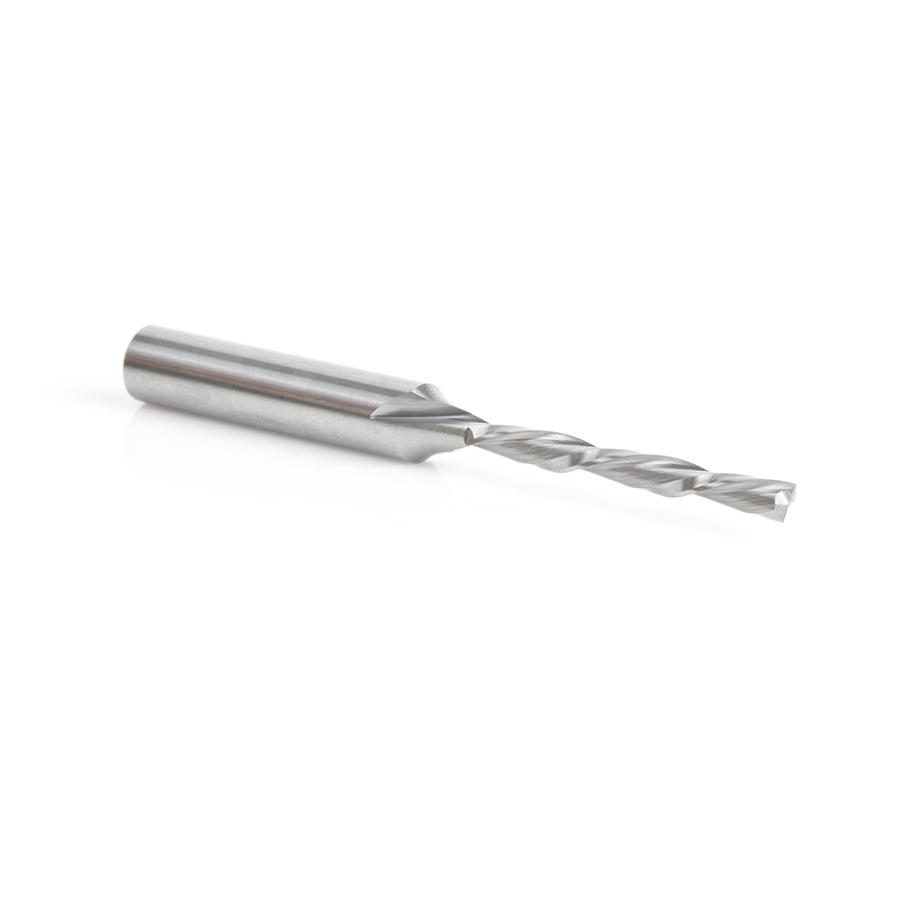

46564 Solid Carbide CNC Foam Cutting Down-Cut Square End Spiral 1/8 Dia x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit

#46564

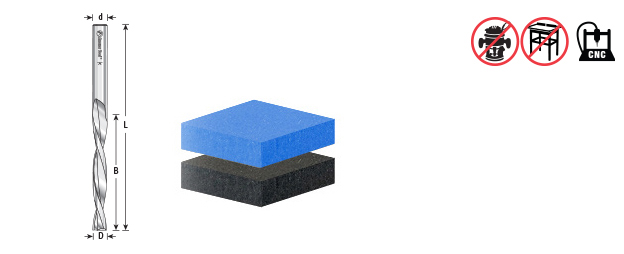

Specification
Direction Down-Cut
(D) Diameter 1/8
(B) Cutting Height 1-1/8
(d) Shank 1/4
Overall Length (L) 2-1/2
Type Square End
Flutes 2

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly.

Specifically designed for milling:

  • Crosslinked Polyethylene Foam (XLPE)
  • Ethafoam**
  • Ethylene-vinyl Acetate Foam (EVA)
  • Expanded Polypropylene (EPP)*
  • Expanded Polystyrene (EPS)
  • Extruded Polystyrene Foam (XPS)
  • Flexible Polyurethane Foam (FPF)
  • Fomex®
  • High Density Urethane (HUD Board)
  • PALFOAM™
  • Polycarbonate (Lexan™)
  • Polyethylene Foam**
  • Polylam**
  • Polyurethane Foam

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.

Fusion Logo

Fusion 360 compatible tool file for 46564 available for download, click here.

CNC Foam Cutting Spiral Speed and Feed Chart

Download PDF
