Supertrim™ 3 Degree Up-Shear Router Bits

47134 Carbide Tipped Up-Shear SuperTrim™ Flush 3/4 Dia x 2 Inch x 1/2 Shank

#47134

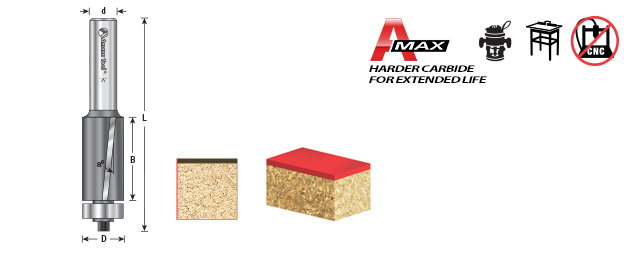

Specification
Angle (a°)
Diameter (D) 3/4
Cutting Height (B) 2
Shank (d) 1/2
Overall Length (L) 4-1/4
Type Up-Shear
Replacement Bearing 47714
Flutes 2

For exceptional cutting speed, coupled with a super-fine finish, use these large-diameter flush trim bits on a standard router. Available in either up-shear or down-shear. Especially suitable for solid surface material when used with optional #47709 Delrin® bearing. Furnished with steel bearing #47714.

AMAX Extended Life Features:

  • 200% longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbides' resistance to wear
  • Super clean cuts
