Laminate Trimmers with Euro™ Square Bearing Router Bits

47147 Carbide Tipped Laminate Trimmer with Euro™ Square Bearing 1/2 Dia x 19/64 x 1/4 Inch Shank Router Bit

#47147

Specification
Diameter (D)1/2
Cutting Height (B)19/64
Shank (d)1/4
Overall Length (L)1-3/4
Replacement BearingSQB100
Flutes2

Amana Tool® industrial quality carbide tipped laminate trim bits with the Euro™ Square Bearings. The bits are designed according to specifications with a slight taper allowing for adjustment up or down on the work edge to finish off the edge with a smooth and burr free cut.

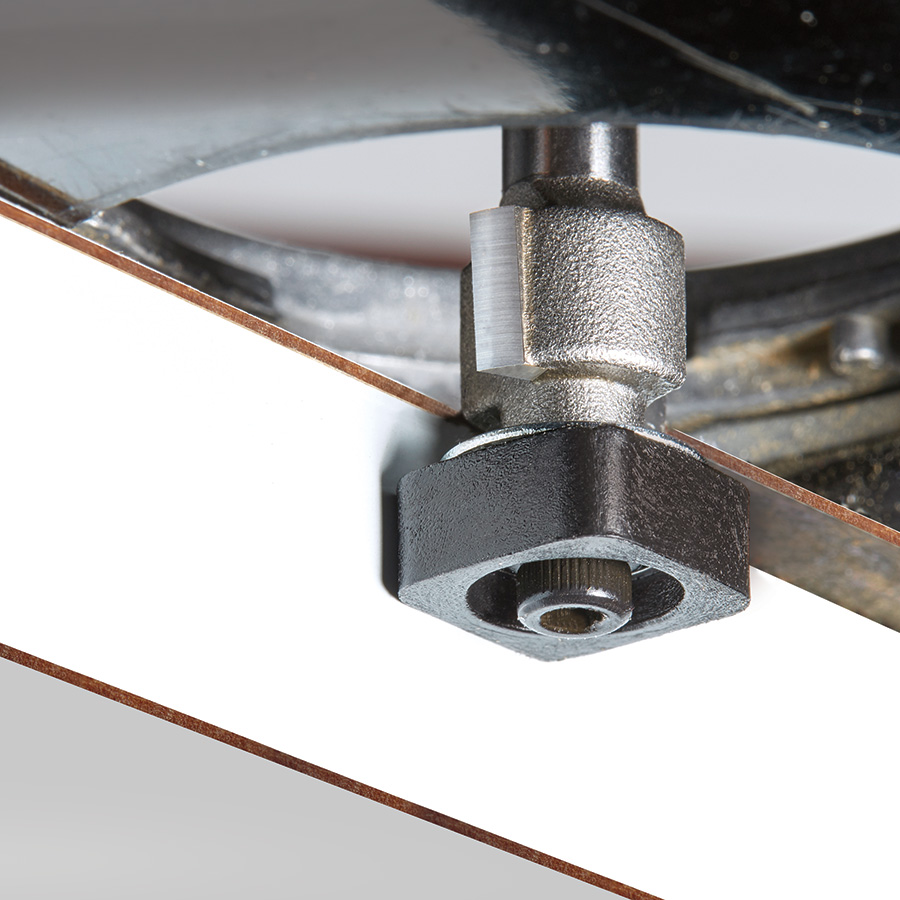

The square bearing is manufactured with a strong non-stick Teflon® which won't mark your edge so it can be wiped clean easily.

  • Leaves no marks on high-gloss, finished edges
  • Use 1/2" diameter bit with laminate trimmers
  • Glue won't stick to bearing
  • Beveled cutter means little or no hand filing
  • Will not scratch high gloss laminates
  • Beveled cutter can be resharpened
Bearing
