10mm Shank Drill/Boring Bit Adapters with Retaining Screw

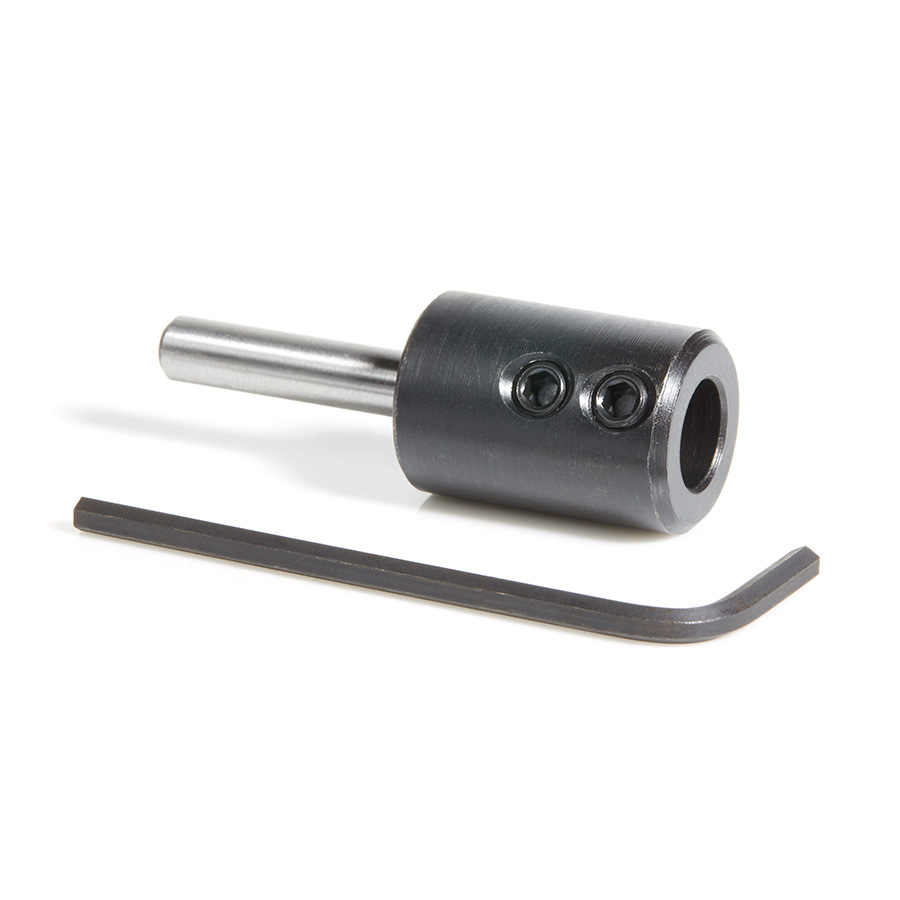

47636 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder

#47636

Specification
(D) Diameter3/4
(d) Shank1/4
Overall Length (L)2-5/32
D110mm
L11-1/16

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.

Total Indicated Run-out (TIR) is 0.00118" (0.03mm)

Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.

Warning: Max RPM = 10,000

M6 X 5 Screw (2 Required)Torx Key
67075
