Fractional Steel Ball Bearing Guides

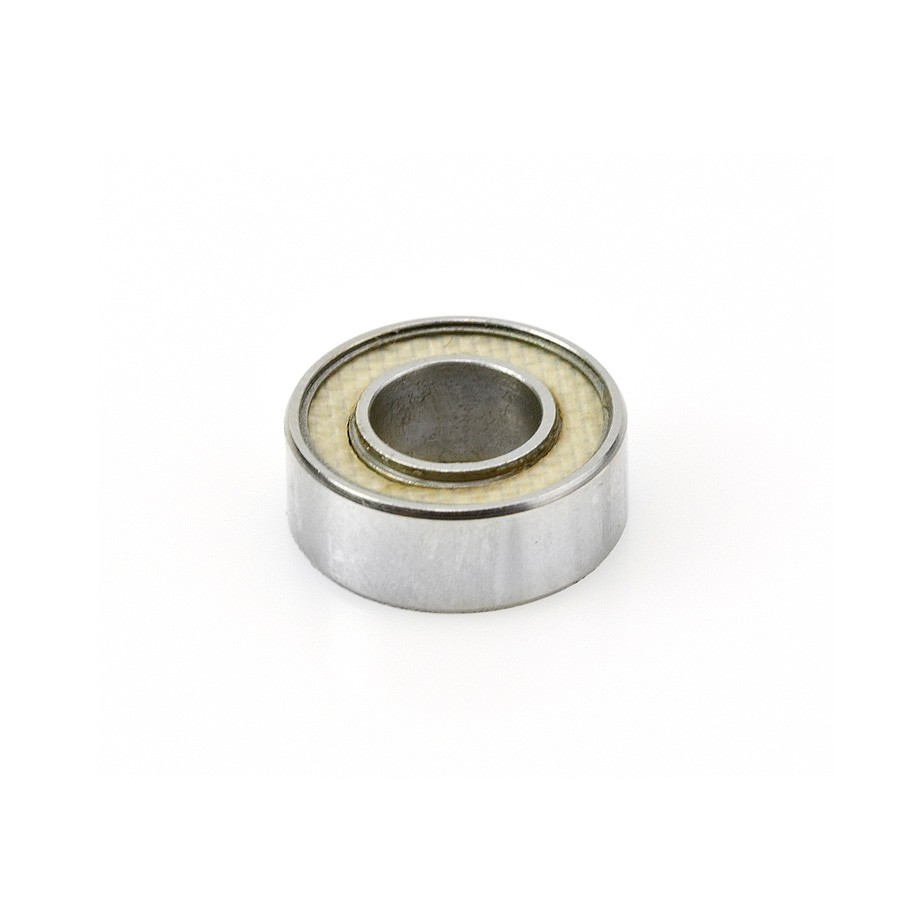

47701-HP Steel Ball Bearing Guide 1/2 Overall Dia x 1/4 Inner Dia x 3/16 Height

#47701-HP

Specification222
Diameter (D) 1/2
Application With Teflon® dust shields. Used as a substitute for 47701 for fine dust conditions.
B .186 (3/16)
d 1/4

Amana Tool® uses only the finest industrial quality precision ball bearings available. Bearings are double steel-shielded for extra rigidity and to inhibit dust. A special high-performance, high-temperature grease is used for maximum life.

With Teflon® dust shields. Used as a substitute for 47701 for fine dust conditions.

Note: Solvents should not be used to clean ball bearings, as this will deteriorate the special grease. 'Frozen' bearings (ones that do not rotate freely), should be replaced immediately.
