Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge Up-Cut CNC Router Bits

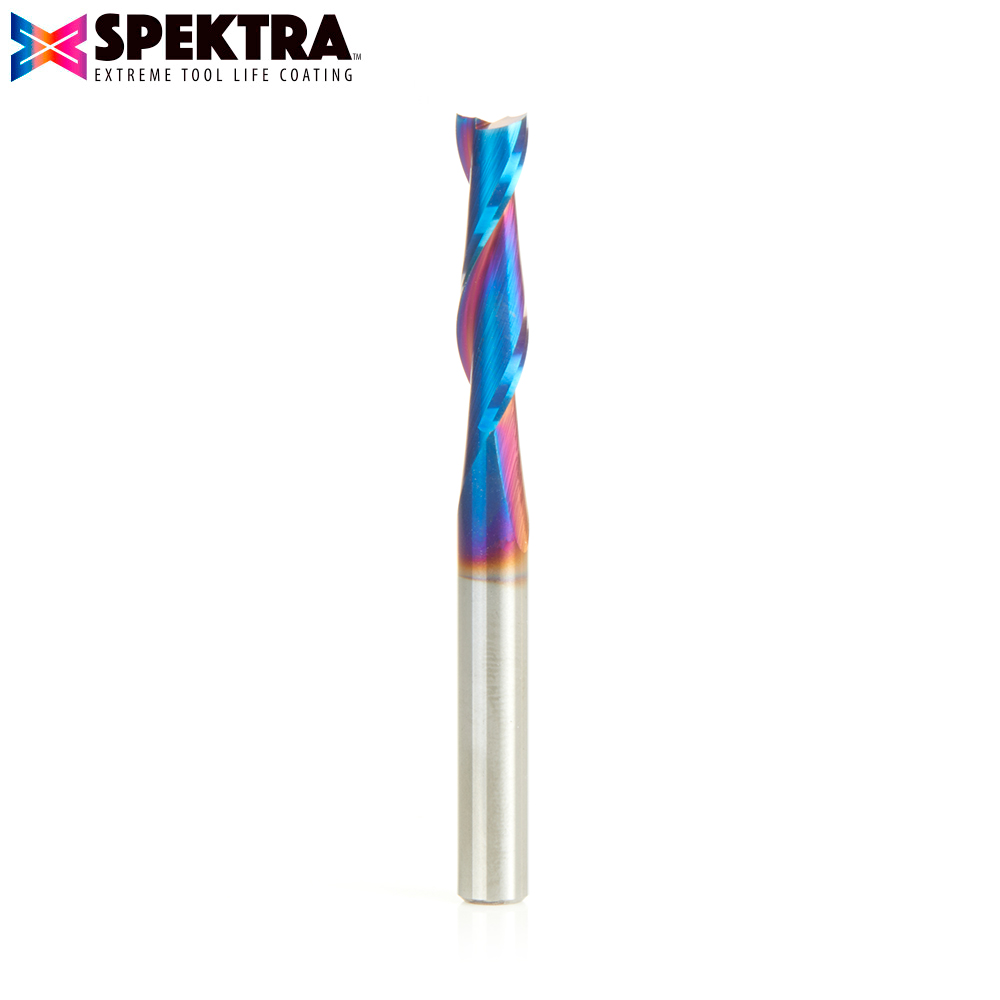

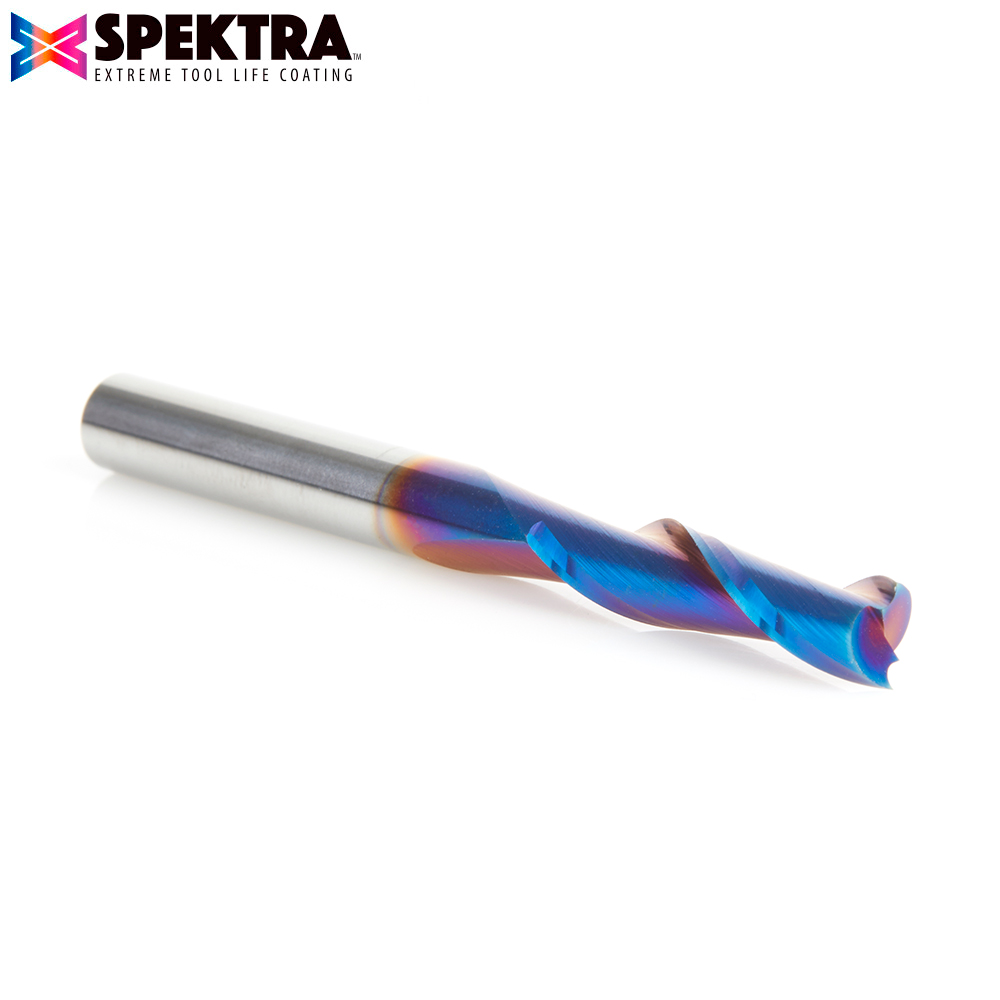

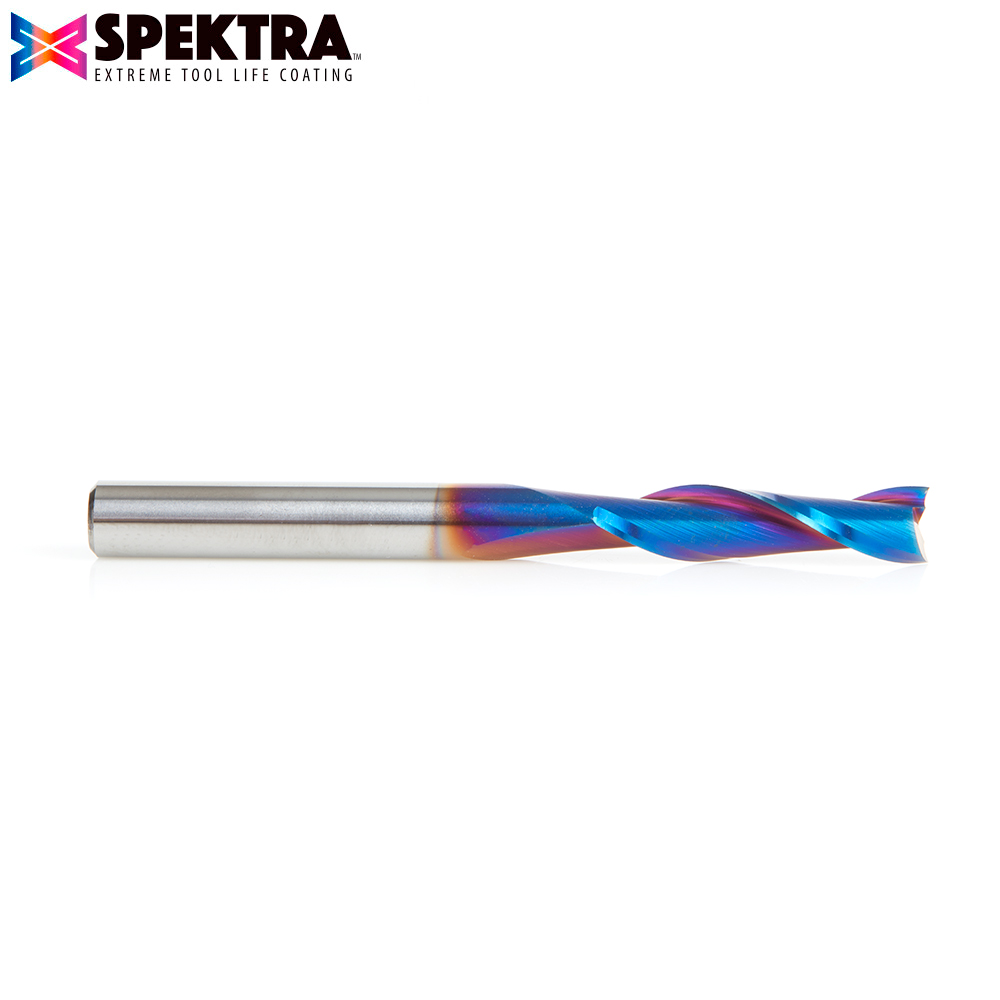

48120-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge 6mm Dia x 25mm x 6mm Shank Up-Cut

#48120-K

Specification
Direction Up-Cut
(D) Diameter 6mm
(B) Cutting Height 25mm
(d) Shank 6mm
Overall Length (L) 63mm

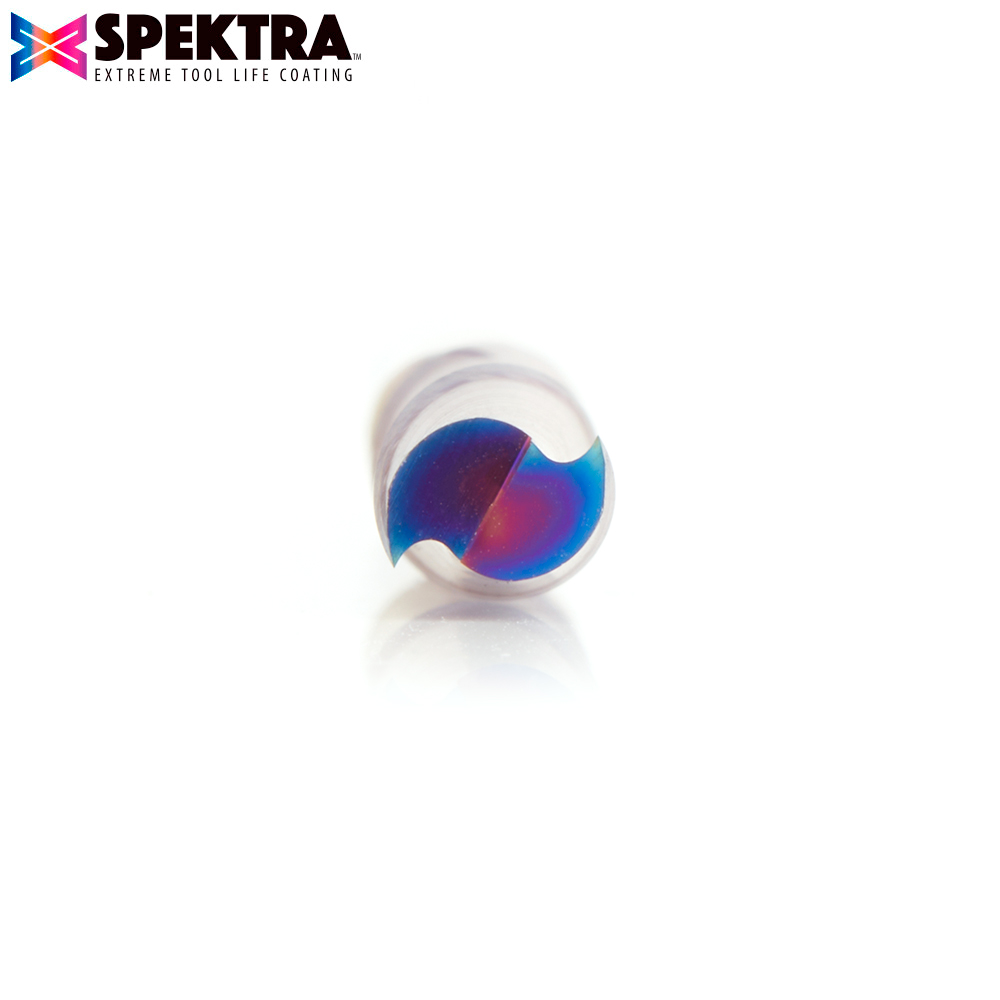

Flutes 2
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

Amana Tool® solid carbide router bits provide consistent, repeatable quality. Every tool is guaranteed to match the geometry on the prints, every time on every order. Best control of carbide grades for woodworking, and absolute control of quality standards on all carbide blanks.Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Excellent for cutting:
  • Laminate
  • Melamine
  • Melamine Particle Board
  • MDF
  • Veneered Plywood
  • Wood
  • Cork


THE ONLY Spektra™ Coated Bits – Made in the USA

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

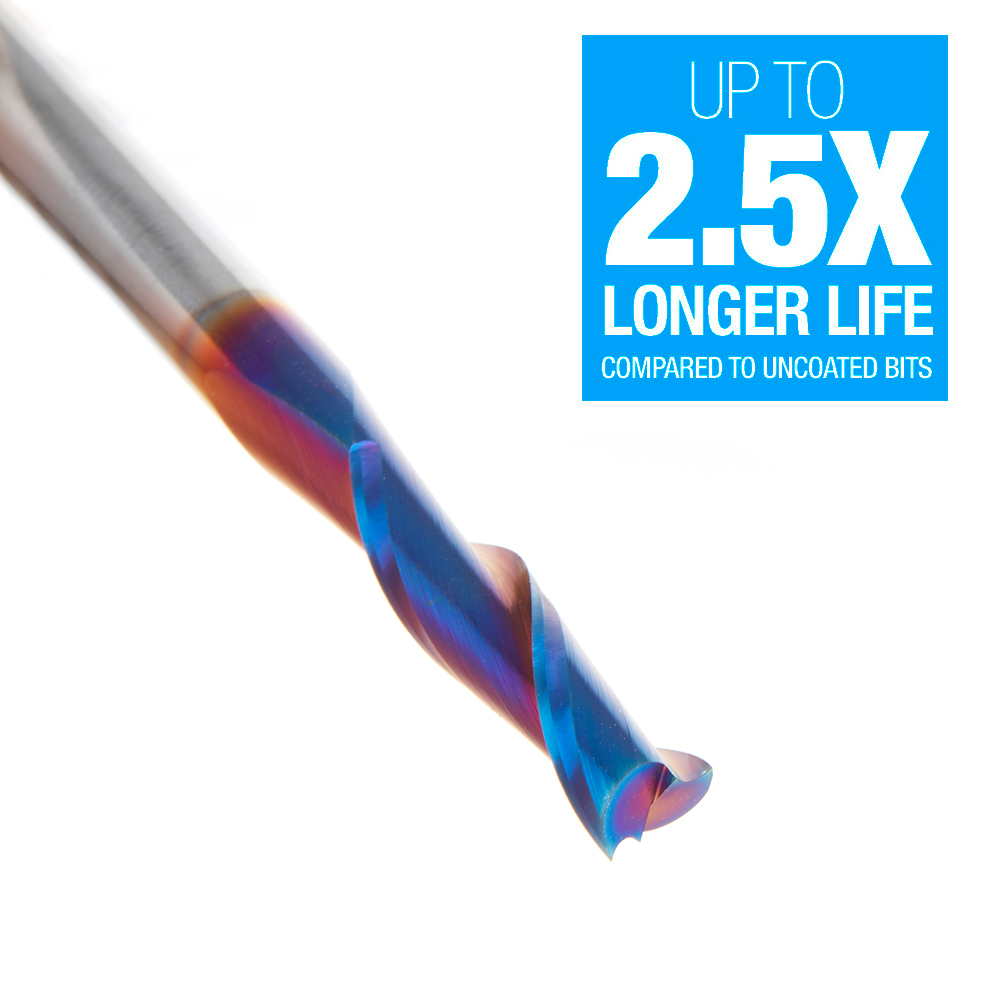

  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Fusion Logo

Fusion 360 compatible tool files for 48120-K available for download, click here.

Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge Inch Router Bits
