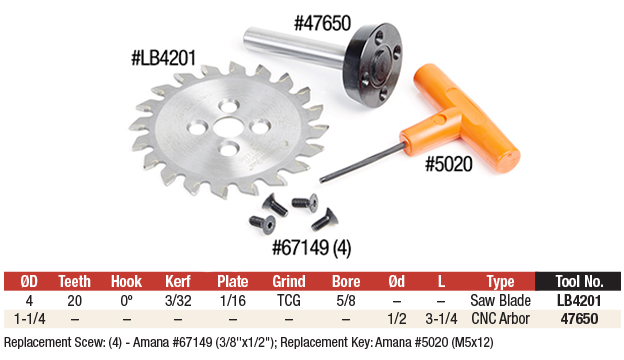

Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System
48200 Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System 4 Inch Dia x 20T TCG, 0 Deg x 1/2 Shank 100% Flash Mounting
#48200
| (D) Diameter | 4 |
|---|---|
| (d) Shank | 1/2 |
| Overall Length (L) | 3-1/4 |
| Max RPM | 13,000 |
| C | 1-1/8 |
| Feed Rate IPM | 150" |
| Grind | TCG |
| Teeth | 20 |
| Hook Angle | 0º |
| Kerf (B) | .095" (3/32) |
Designed for trimming and grooving hard and soft plastics.
100% flash mounting.
Right hand rotation cutting.
Excellent for cutting:
- Hard & Soft Plastics
- Acrylonitrile Butadiene Styrene (ABS)
- Fomex®
- High Impact Polystyrene (HIPS)
- High Pressure Laminates (HPL)
- Hydroxy-Terminated Polyether (HTPE)
- Low Density Polyethylene (LDPE)
- LubX®
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
- Thermoplastic Polyolefin (TPO)
- Sign Foam
- StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
- Urethane
Carbide Tipped Plastic Trim Saw Blade and Arbor CNC System Speed and Feed Chart
Download PDF
Product Questions
Would i be able to get different Kerf blades?
Question by: Harris Tuttle on Aug 24, 2017, 4:38 PM
We currently only have the one saw blade for this tool.
Answer by: Amana Admin on Aug 29, 2017, 7:28 PM
We currently only have the one saw blade for this tool.
Answer by: Amana Admin on Aug 29, 2017, 7:28 PM
