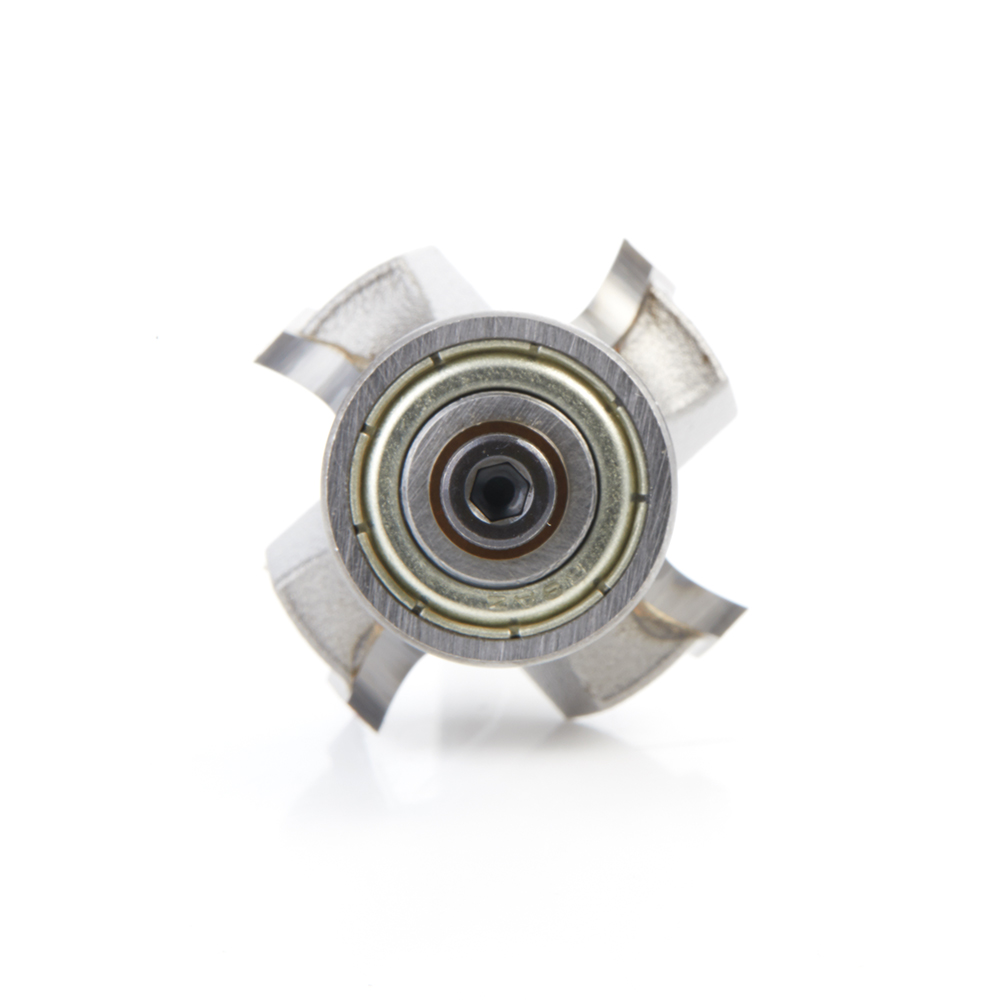

49546 Carbide Tipped 4 Flute Corner Rounding/Beading 3/16 Radius x 1 Dia x 1/2 x 1/4 Inch Shank

#49546

Specification
Diameter (D)1
Radius (R)3/16
Cutting Height (B)1/2
Shank (d)1/4
Overall Length (L)2
Replacement Bearing47718 Corner Round / 47706 Beading
Flutes4
D15/8

4 Flute Corner Rounding/Beading Router Bits

Please or

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. 4 flute design for super-smooth finish.

Replacement Bearing for Corner RoundReplacement Bearing for BeadingTorx ScrewDust Shield
