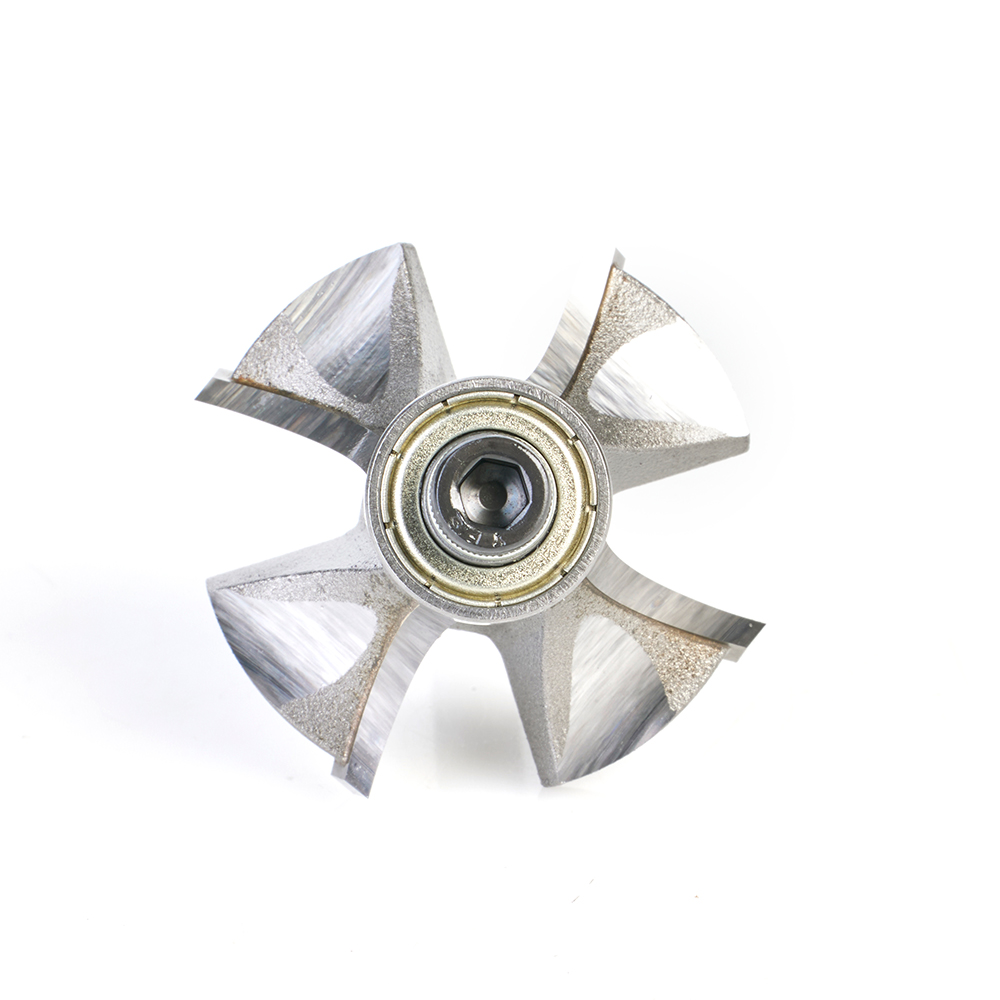

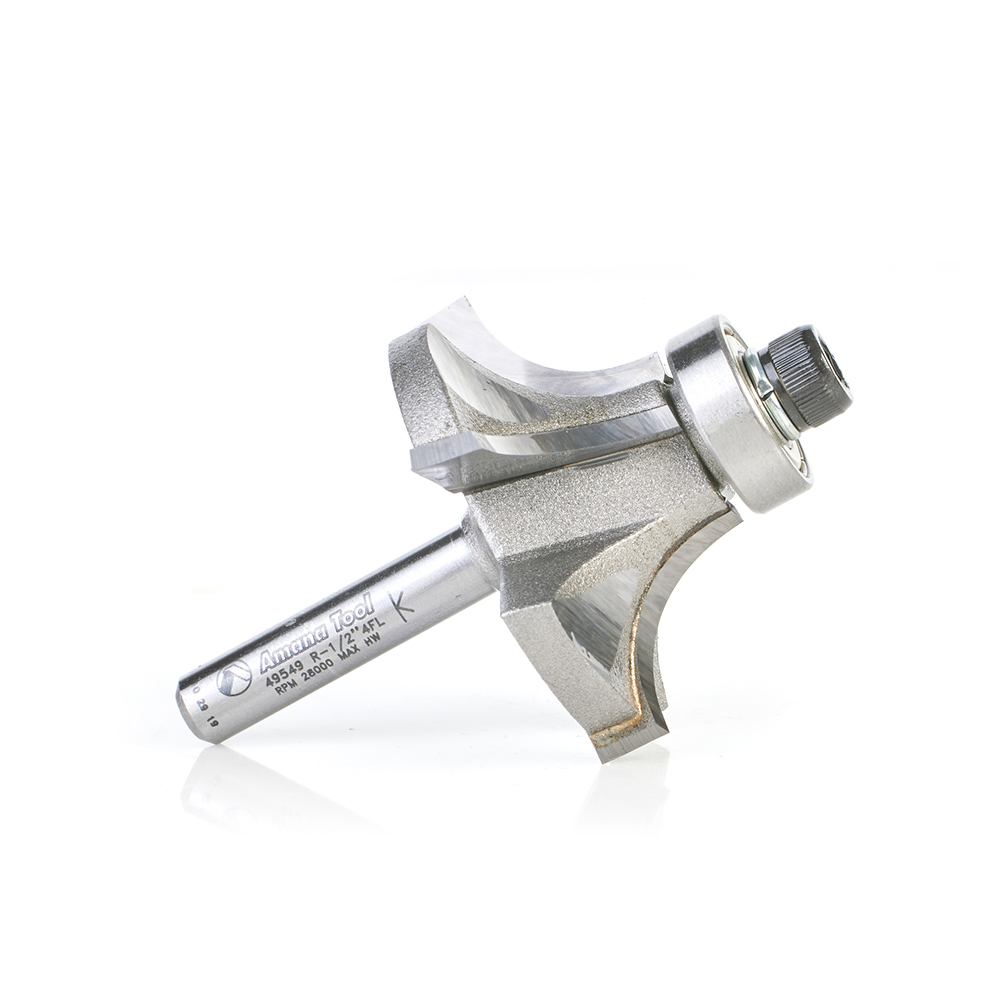

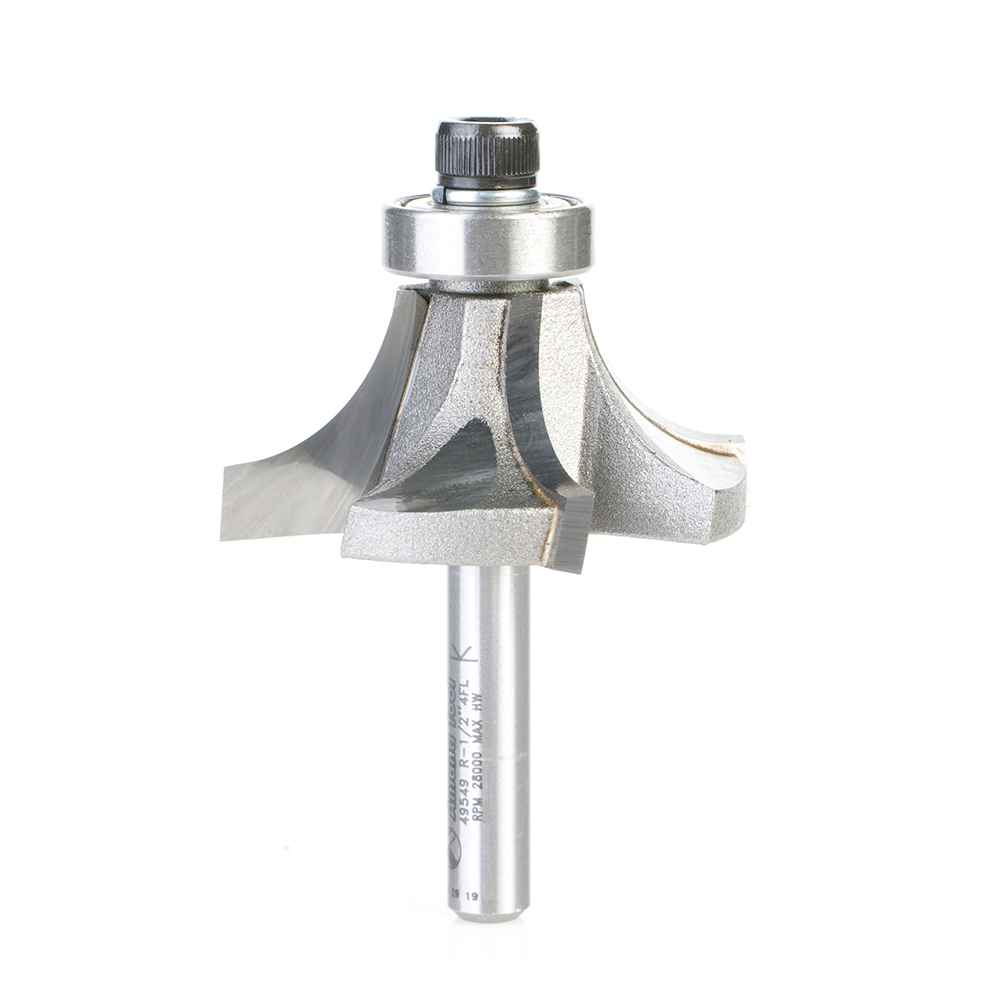

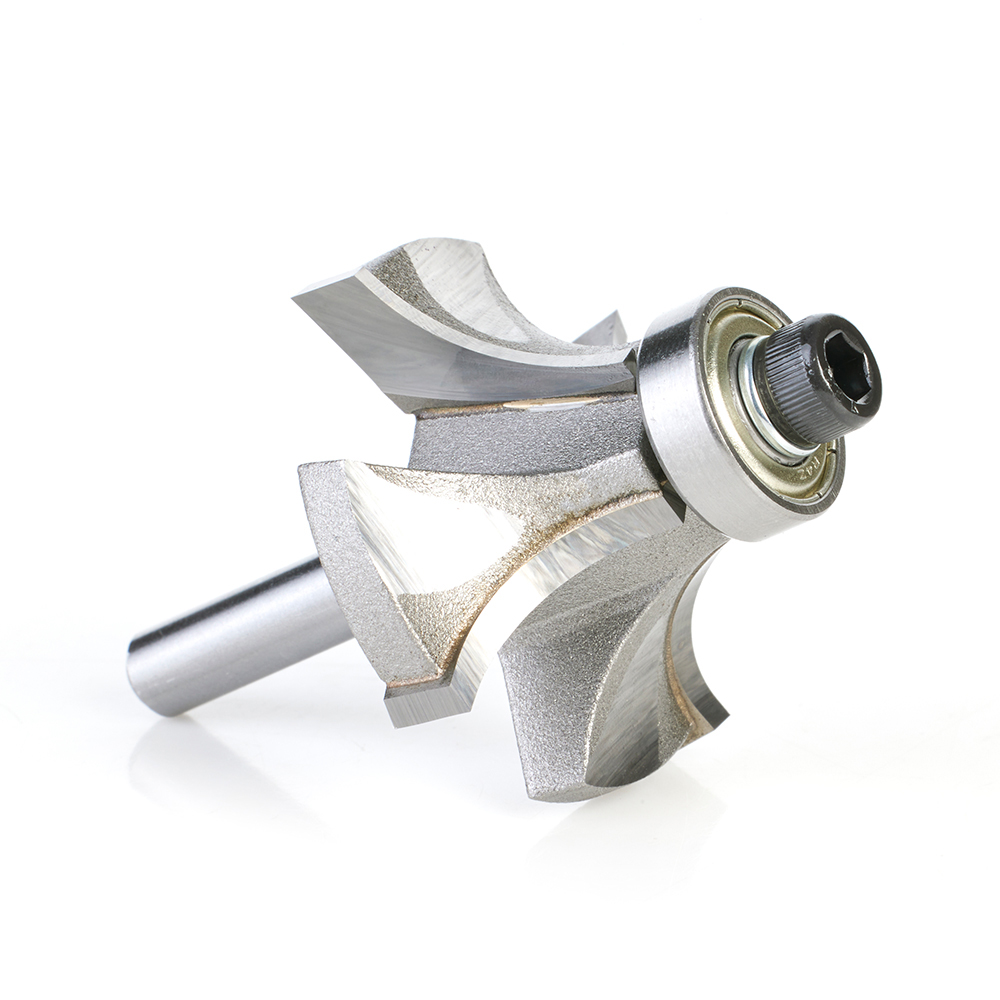

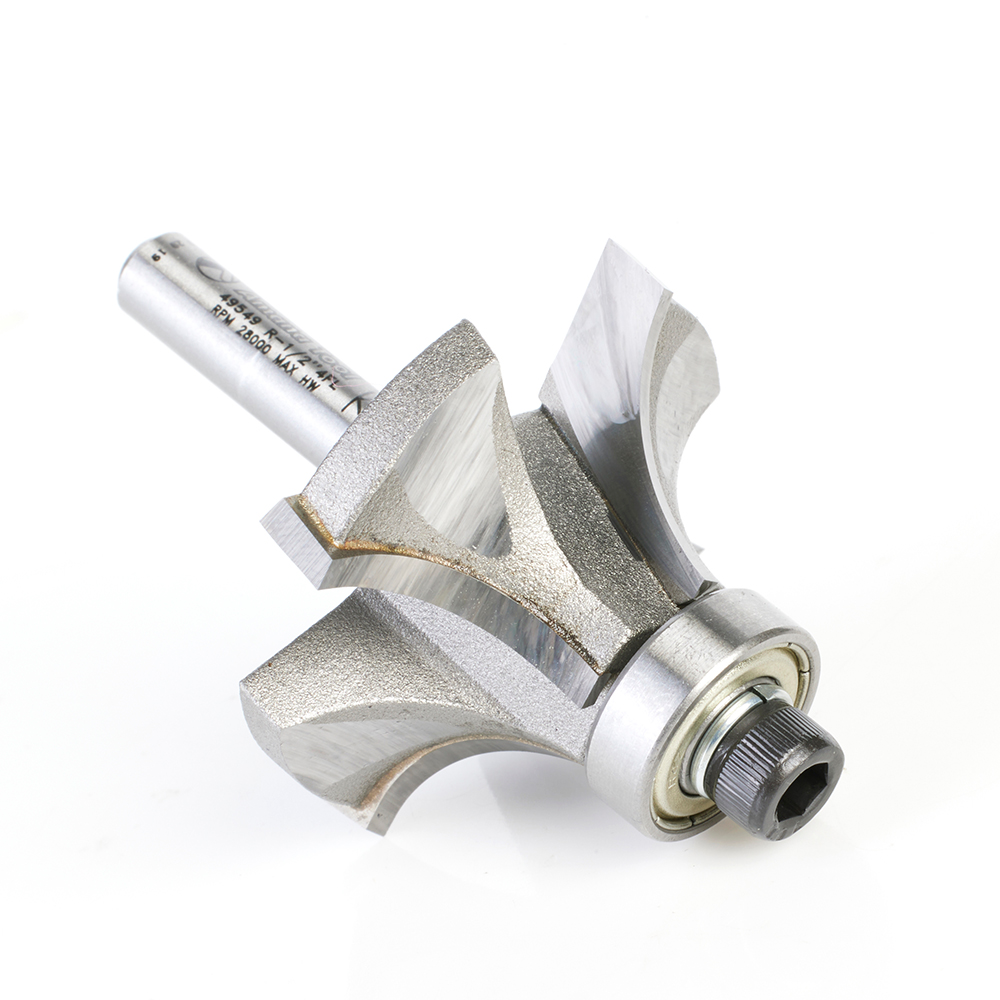

49549 Carbide Tipped 4 Flute Corner Rounding/Beading 1/2 Radius x 1-5/8 Dia x 11/16 x 1/4 Inch Shank

#49549

Specification
Diameter (D)1-5/8
Radius (R)1/2
Cutting Height (B)11/16
Shank (d)1/4
Overall Length (L)2-3/4
Replacement Bearing47712 Corner Round / 47701 Beading
Flutes4
D15/8

4 Flute Corner Rounding/Beading Router Bits

Please or

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. 4 flute design for super-smooth finish.

Replacement Bearing for Corner RoundReplacement Bearing for Beading
