Combination Bevel and Flush Trim Router Bits

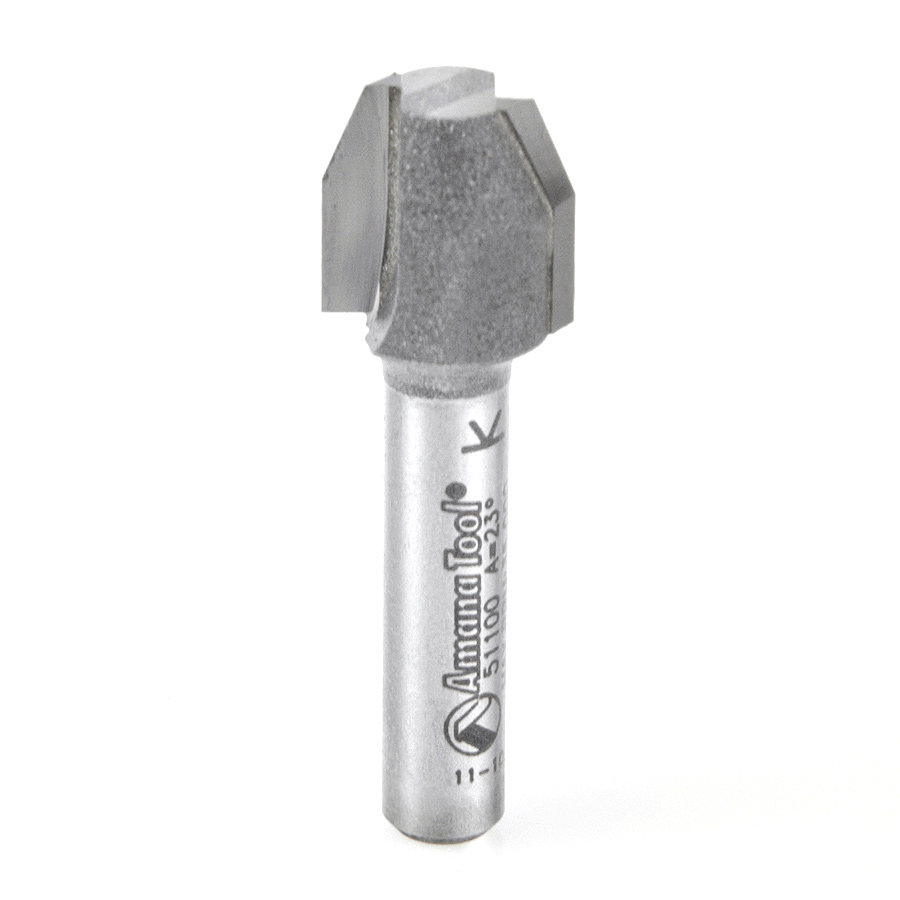

51100 Carbide Tipped Combination Bevel/Flush Laminate Trim 23 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank
#51100
| Angle (a°) | 23° |
|---|---|
| Diameter (D) | 1/2 |
| Cutting Height (B) | 1/2 |
| B1 | 7.4mm (19/64") |
| B2 | 5.3mm (13/64") |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-3/4 |
| Flutes | 2 |
Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.
Product Questions
I am planning to use it for a relief cut with a bottom bevel, so I would like to know the length of the straight and the beveled sections.
Question by: Olof Fornehed on Jul 6, 2016, 9:24 AM
This information was not on the web site previous to your inquiry. Thank you for this. I have the link below so you may see the information you requested.
http://www.amanatool.com/51100-carbide-tipped-combination-bevel-flush-laminate-trim-23-deg-x-1-2-dia-x-1-2-x-1-4-inch-shank.html.
http://www.amanatool.com/51100-carbide-tipped-combination-bevel-flush-laminate-trim-23-deg-x-1-2-dia-x-1-2-x-1-4-inch-shank.html.
Answer by: admin admin on Nov 10, 2016, 2:52 PM
