Combination Bevel and Flush Trim Router Bits

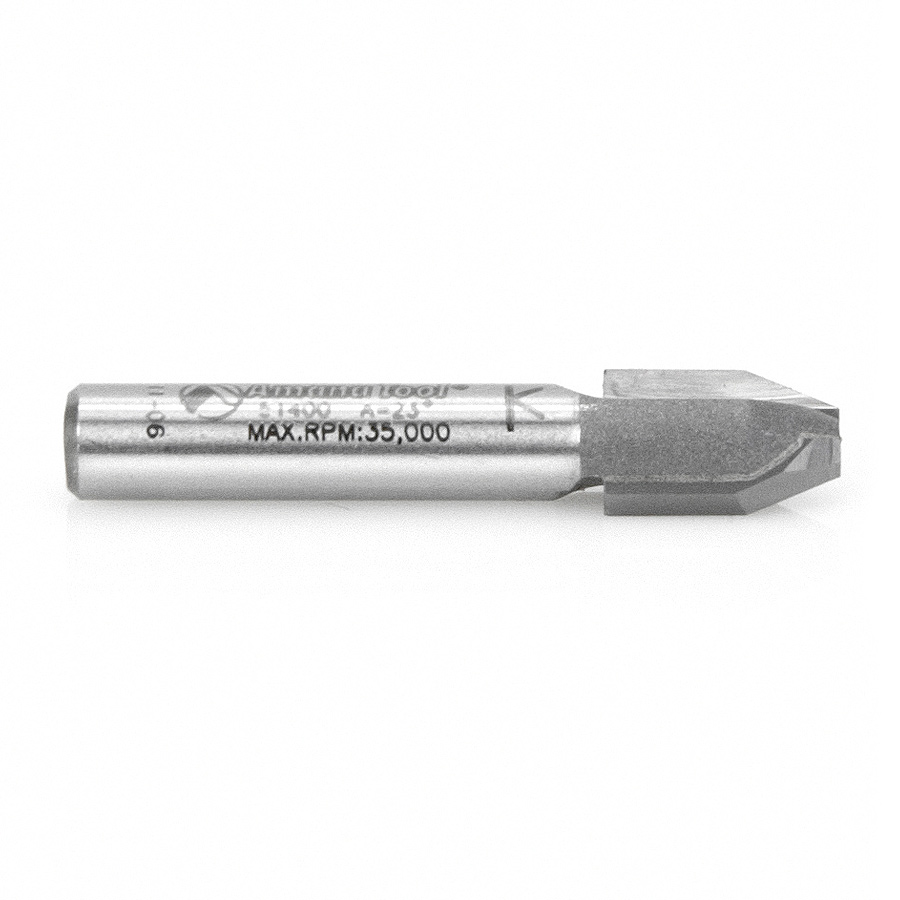

51400 Carbide Tipped Combination Bevel/Flush Laminate Trim 22.5 Deg x 11/32 Dia x 1/2 x 1/4 Inch Shank

#51400

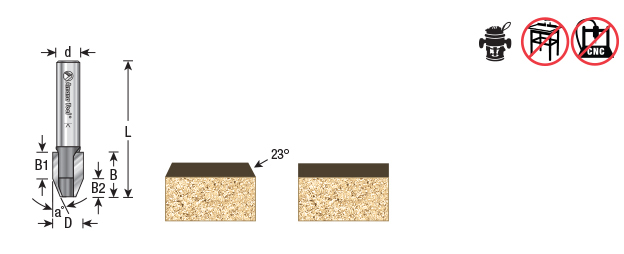

Specification
Angle (a°) 22.5°
Diameter (D) 11/32
Cutting Height (B) 1/2
B1 7.5mm (19/64")
B2 5.2mm (13/64")
Shank (d) 1/4
Overall Length (L) 1-5/8
Flutes 2

Cut, trim, and bevel laminates with this one bit. Change depth-of-cut setting to shift from flush to bevel-trimming. Must be used with an edge or bearing guide or fence. Designed specifically for use in laminate trimmers.

51400 DXF

File Size : 139.32 KB
Create account or Login to download

51400 PDF

File Size : 38.13 KB
Create account or Login to download
