Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum

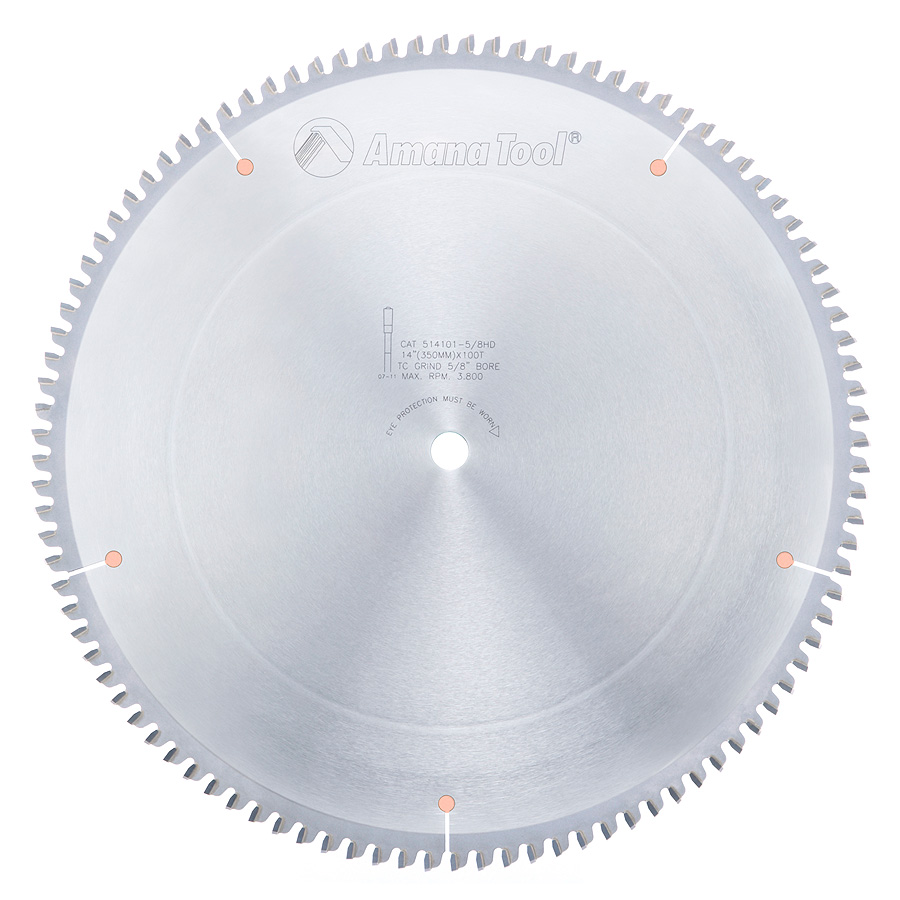

514101-5/8HD Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 100T TCG, -6 Deg, 5/8 Bore

#514101-5/8HD

Specification222
(D) Diameter 14 (350mm)
Teeth 100
(d) Bore 5/8

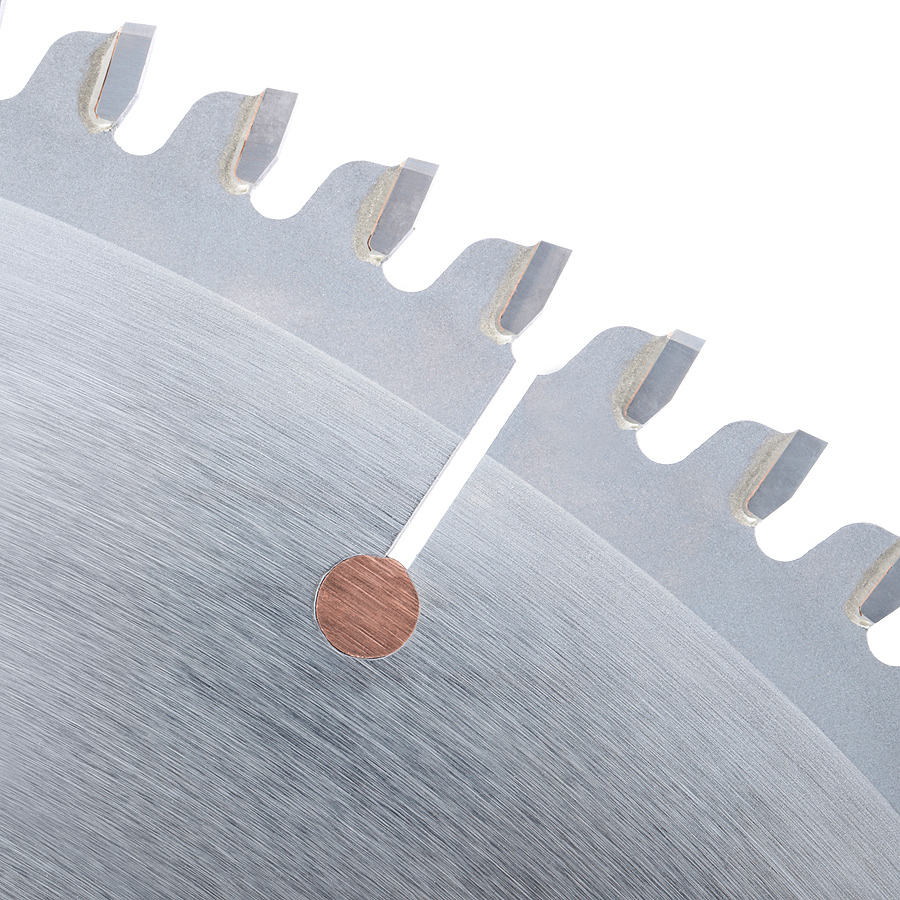

Tooth Grind TCG
Hook Angle -6°
Kerf (B) .146 (3.7mm)
Machine Pistorious
Plate (C) .118 (3.0mm)

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
