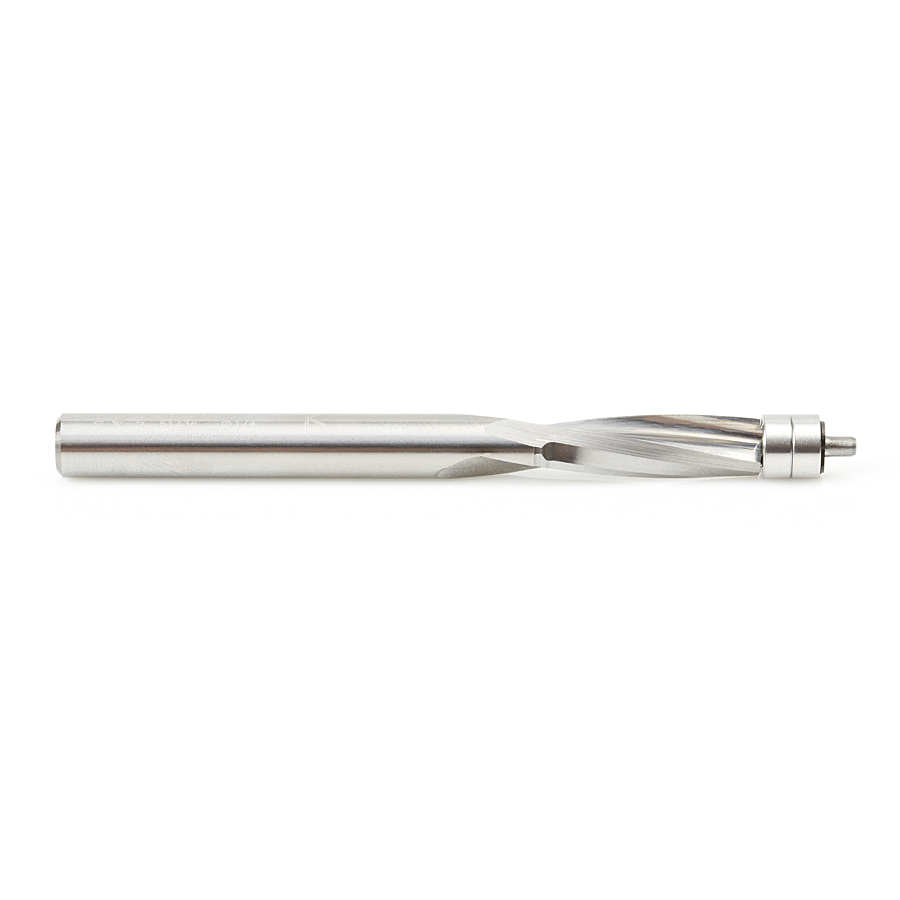

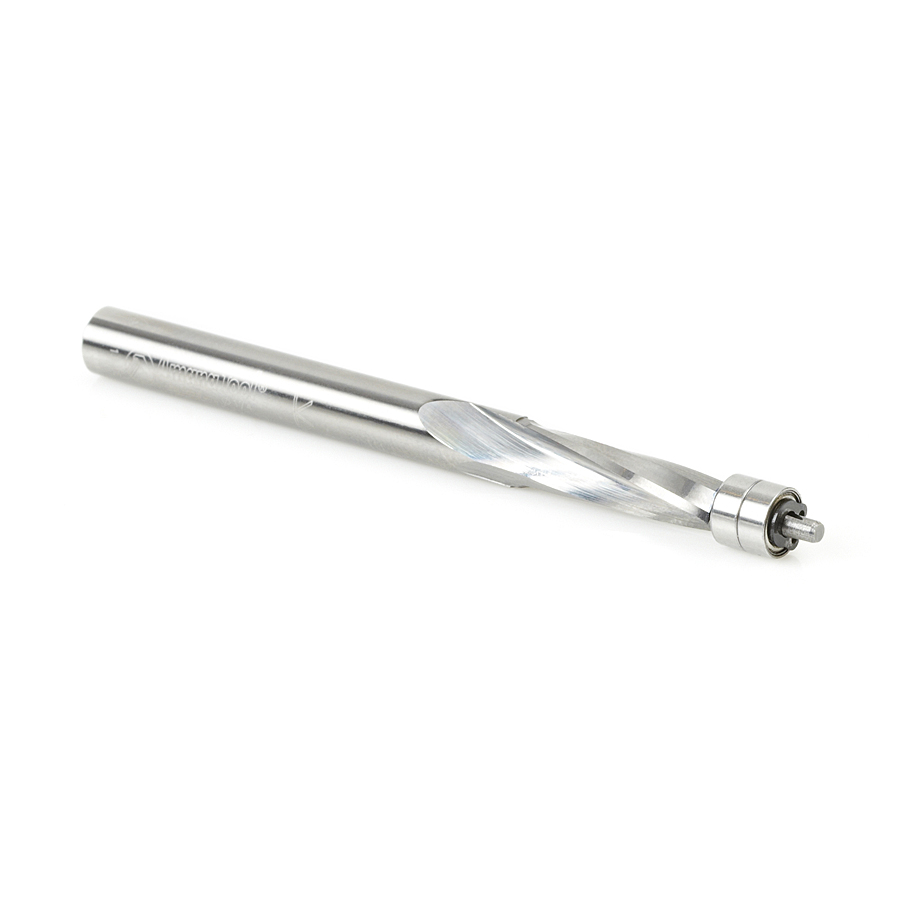

Solid Carbide Spiral Plastic Flush Trim Router Bit

51436 Solid Carbide Spiral Plastic Flush Trim 1/4 Dia x 3/4 x 1/4 Shank x 3 Inch Long Double Ball Bearing

#51436

Specification
Diameter (D)1/4
Cutting Height (B)3/4
Shank (d)1/4
Overall Length (L)3
Spiral designed for trimming sheets of stack plastics and laminates in hand-fed applications. Double bearing provides smoother action around contour of the template.

Excellent for cutting:

  • Plastic
  • Acrylic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Corian
  • Coroplast®
  • Fomex®
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • LubX®
  • Perspex® Cast Acrylic Sheet
  • Poly (methyl methacrylate) (PMMA)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Sign Foam
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Urethane

Benefits of Mirror-Finish:

  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
Replacement Bearing (2 required) Locking Ring
