Solid Carbide Variable Helix Spiral Square Bottom End Mill with Aluminum Titanium Nitride (AlTiN) coating
51593 CNC Variable Helix Spiral Square Bottom 1/4 Dia x 5/8 x 1/4 Shank Solid Carbide AlTiN Coated End Mill
#51593

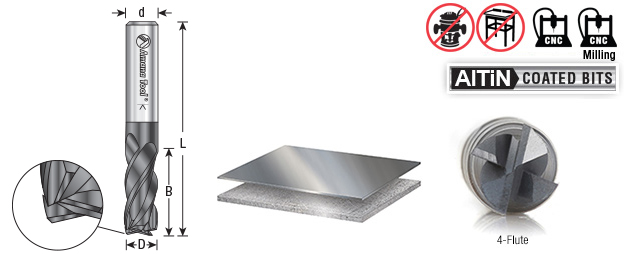

| (D) Diameter | 1/4 |
|---|---|
| (B) Cutting Height | 5/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Type | Square Bottom |

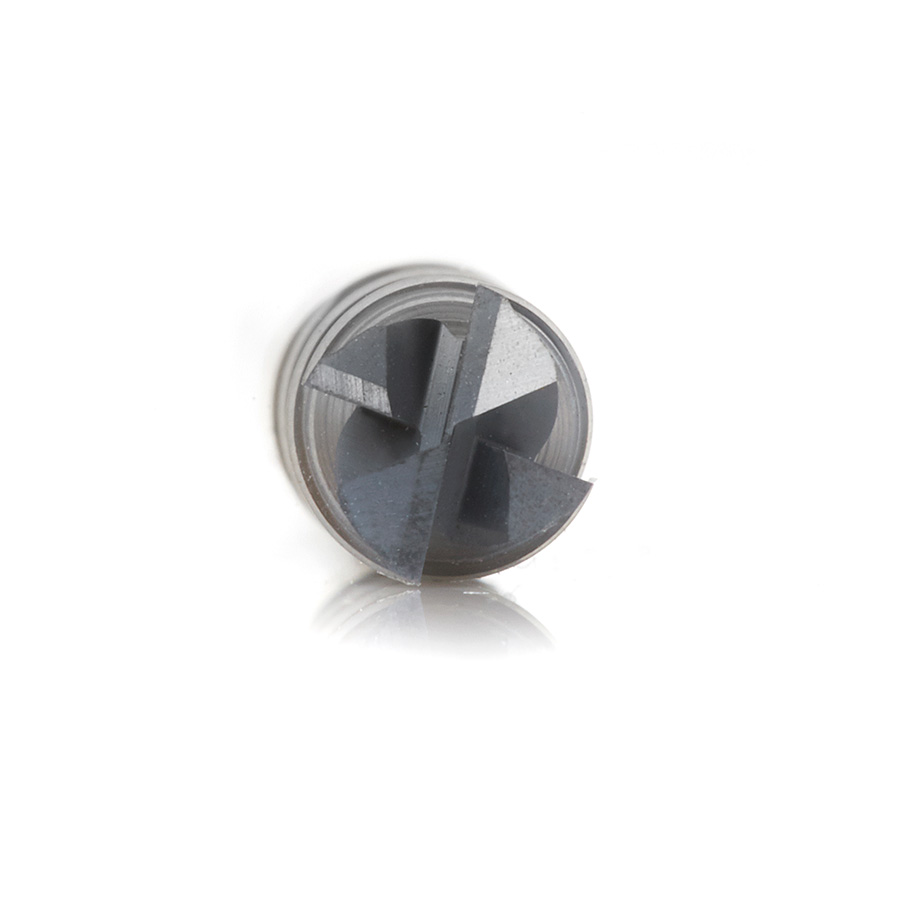

| Flutes | 4 |
Amana Tool's variable helix tools are the superstars of carbide end mills for professionals and hobbyists alike. The variable helix eliminates harmonic chatter, so critical when surface finishes part dimension tolerances and tool life are of the utmost importance. Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity either in terms of speed or longevity with or without coolant.
They are outstanding tools for peripheral milling and can take aggressive cuts along the full length of the overall flute length with no issues. They last much longer than general purpose end mills partly because they are coated partly because they dampen vibration which tends to break a sharp cutting edge down very quickly. For use with manual and automatic milling machines, as well as the most sophisticated CNC machines.
- Stainless Steel
- Titanium
- Cast Iron
- Steel
- Cermet*
- Metal Composite Material (MCM)
- Extra wear resistance
- Allows for faster feed and speed rates
- Cutting edge protected from wear
- Better chip evacuation
- Less heat build up
- Superior cutting quality and extended tool life
Fusion 360 compatible tool file for 51593 available for download, click here.
Variable Helix Square, Ball Nose and Corner Round End Mill AlTiN Coated Router Bits Speed and Feed Chart
Download PDF
