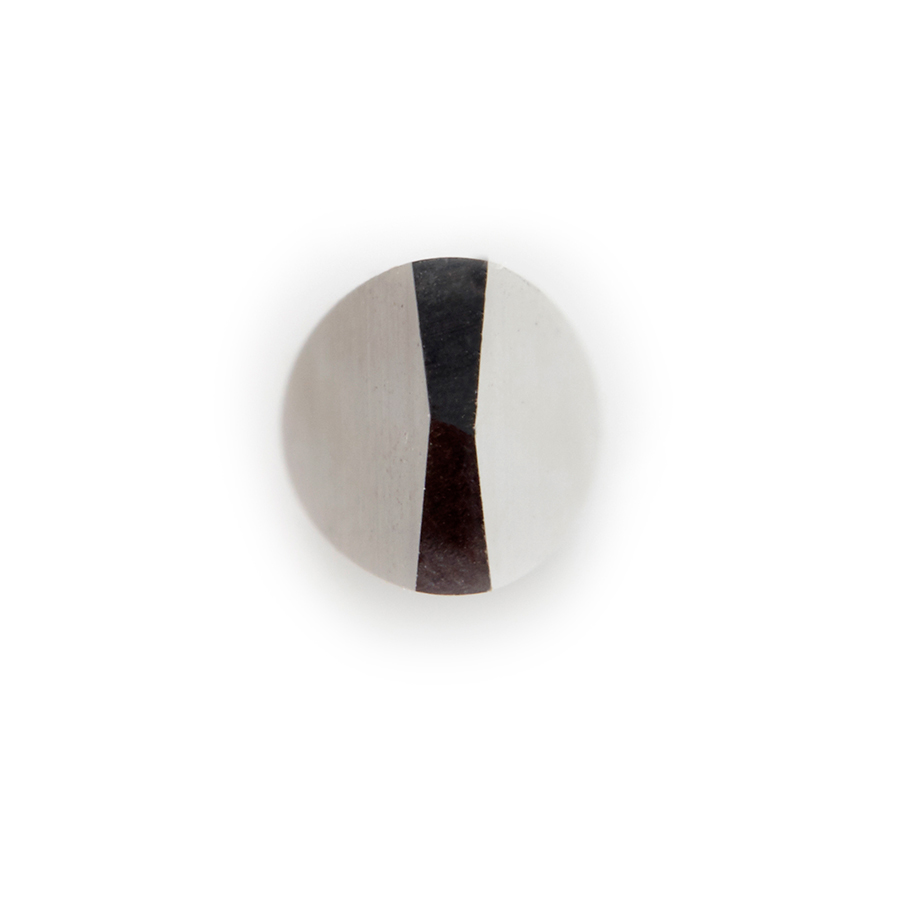

Solid Cabide 118° Point Spade Drill CNC Router Bits

51686 CNC Solid Carbide 118 Degree Point Spade Drill 1/4 Dia x 11/16 x 1/4 Shank Router Bit

#51686

Specification
(D) Diameter1/4
(B) Cutting Height11/16
(d) Shank1/4
Overall Length (L)2
Flutes2

Used to drill very short, shallow holes in hard (or hardened) steel.

They can be used either in CNC or drill presses.

Note: Make sure your drill press runs fast and has a tight spindle.

Excellent for Drilling:

  • Stainless Steel
  • Steel
  • Cast Iron
  • Titanium
  • Non-Ferrous
  • Cermet*

*Cermets are composites in which ceramic materials and metals join together.

Warning: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

Note: For optimal results and extended tool like use mist lubricant system or air cooling.
