Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum

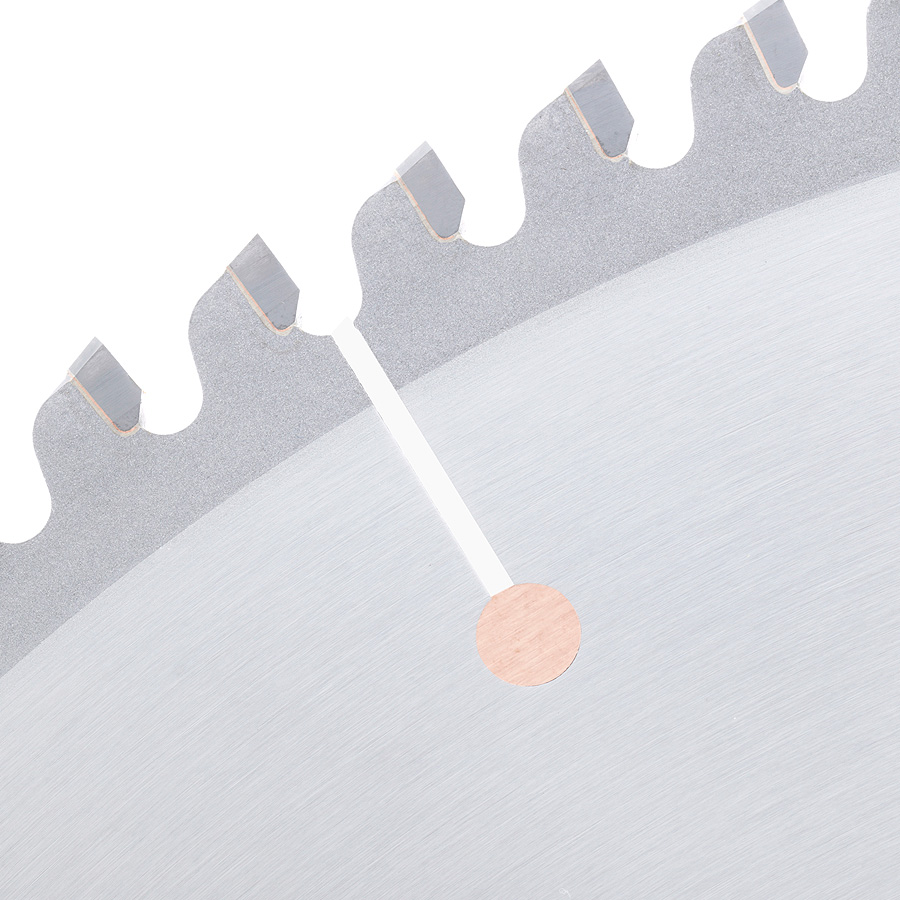

516961 Carbide Tipped Aluminum and Non-Ferrous Metals 16 Inch Dia x 96T TCG, -6 Deg, 1 Inch Bore

#516961

Specification
(D) Diameter 16 (400mm)
Teeth 96
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .150 (3.8mm)
Plate (C) .126 (3.2mm)

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
