Solid Carbide Spektra™ Extreme Tool Life Coated Low Helix Finisher Down-Cut CNC Router Bits

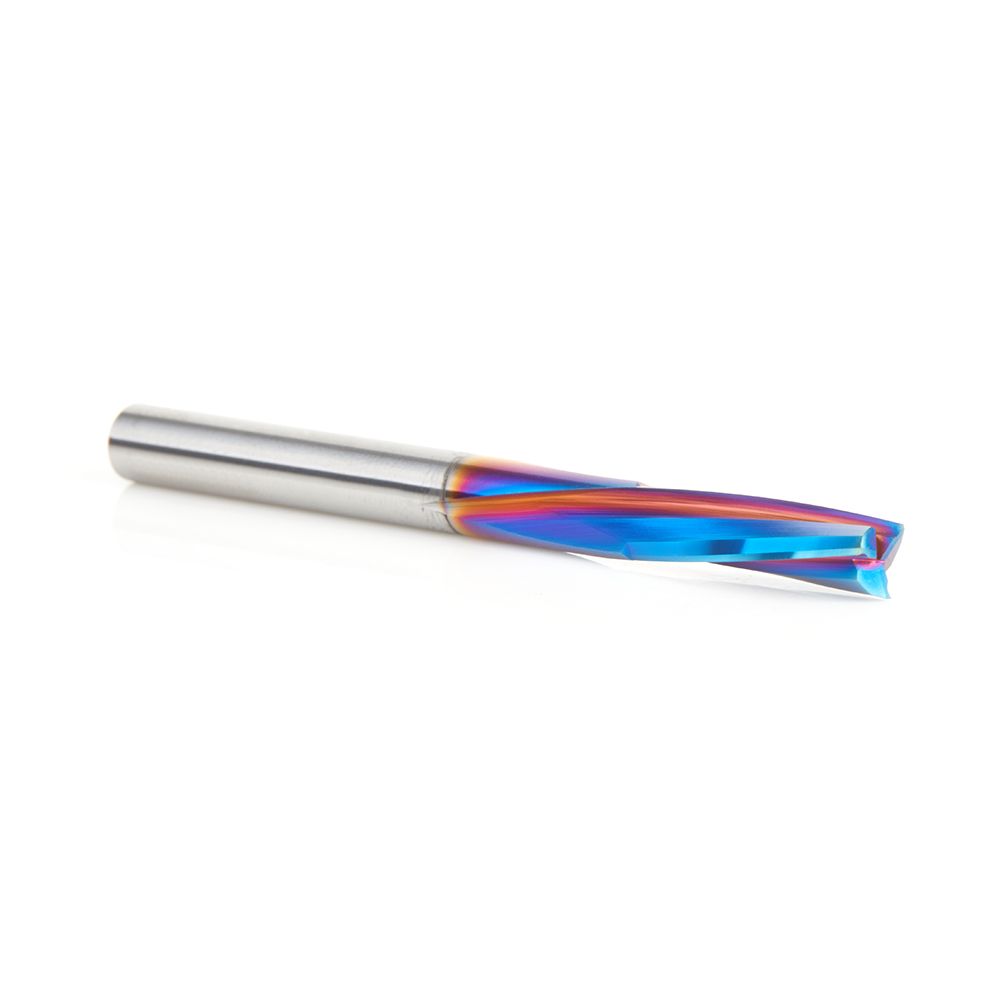

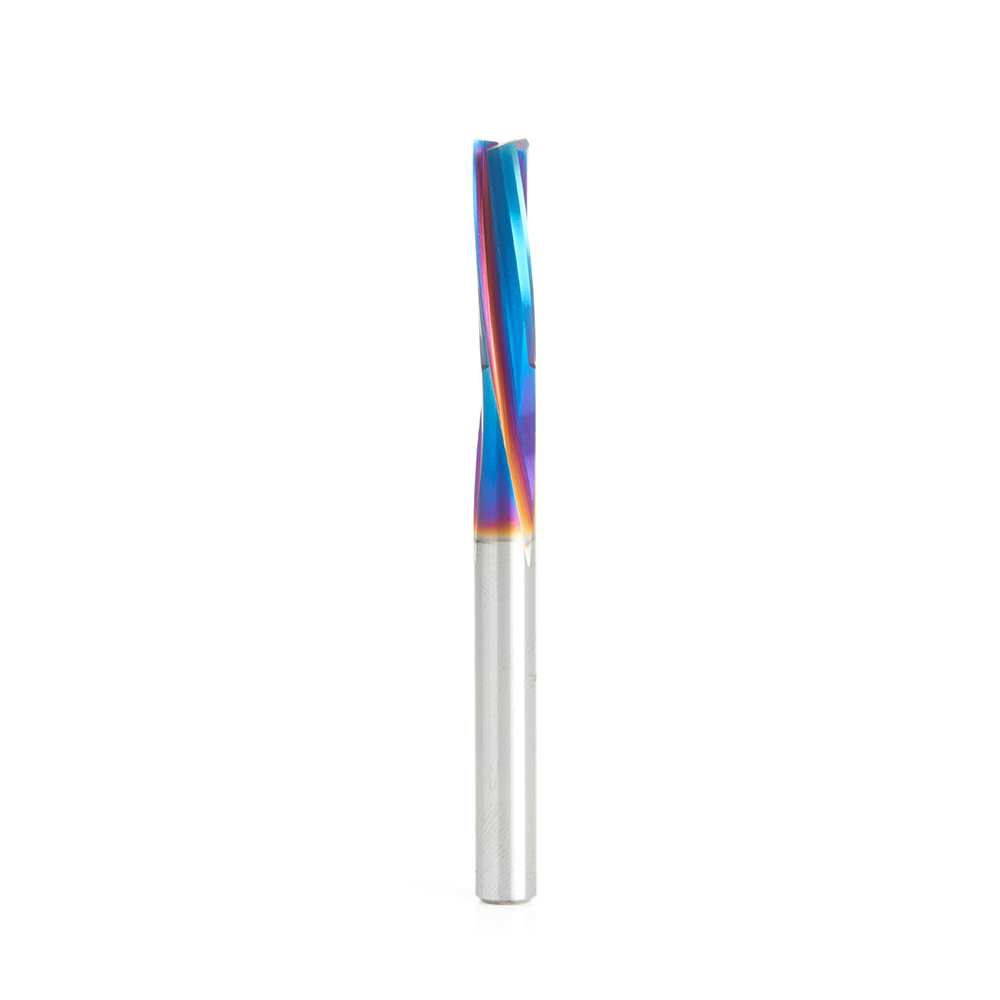

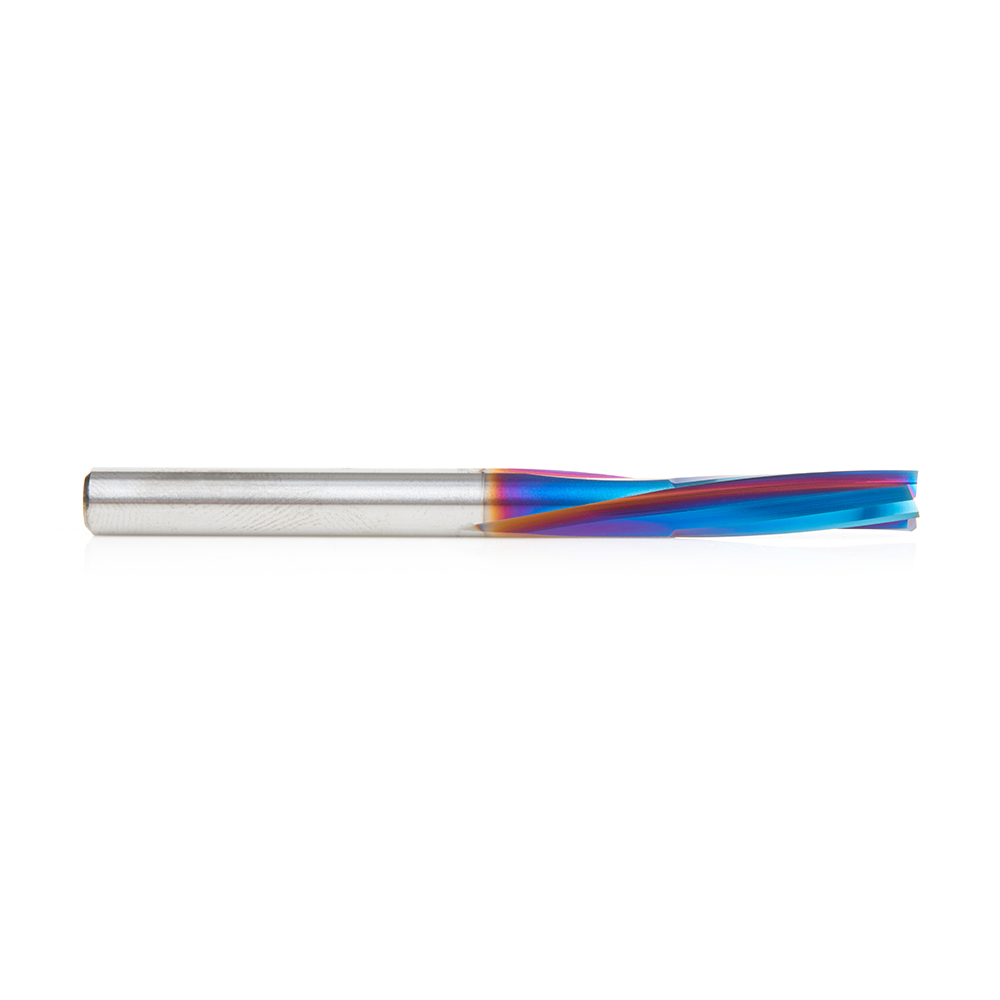

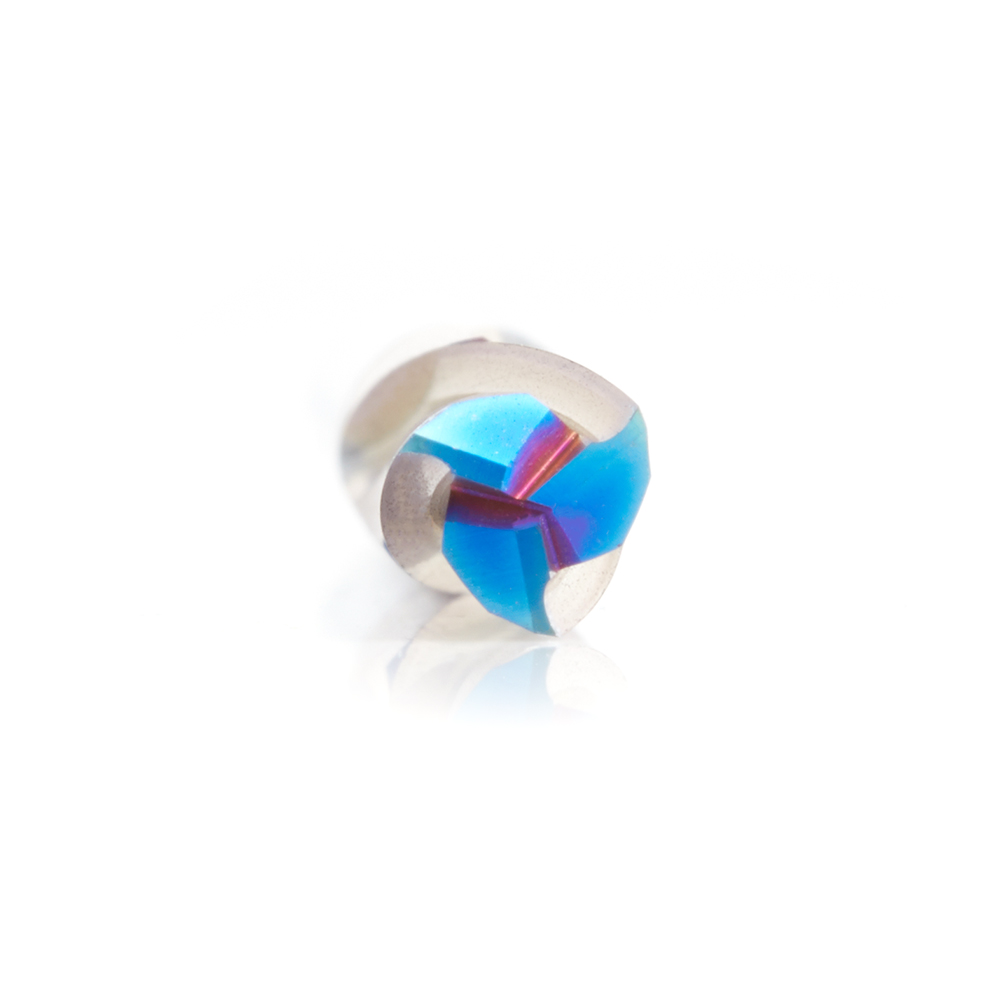

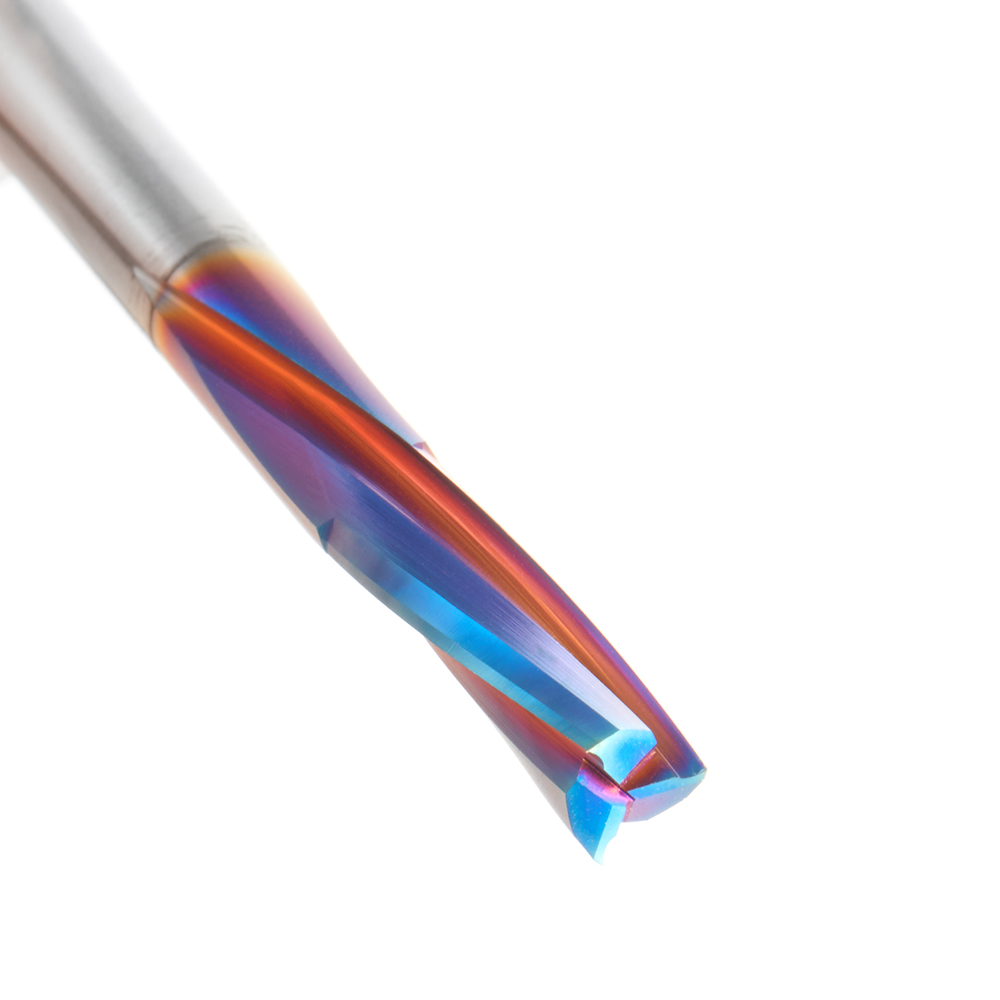

51731-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Finisher 1/4 Dia x 7/8 x 1/4 Shank Down-Cut Router Bit

#51731-K

Specification
Direction Down-Cut
(D) Diameter 1/4
(B) Cutting Height 7/8
(d) Shank 1/4
Overall Length (L) 3
Flutes 3

Those seeking improved surface finishes in either plastics or hardwoods do well to move up to Amana Tool's 3 flute Low Helix Finishers. The unbeatable combination of three keen edges and a gentle 10º helix, equates to a stiffer tool that minimizes both part movement and edge burring, leaving a smooth finish.

Excellent for Cutting:

  • Plastic
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Corian
  • Composite Plastic
  • Coroplast®*
  • Delrin®
  • Foam
  • Fomex®
  • Hardwood
  • High Impact Polystyrene (HIPS)
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Perspex® Cast Acrylic Sheet
  • Poly (methyl methacrylate) (PMMA)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Precision Board
  • Sign Foam
  • Softwood
  • Solid Surface
  • StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
  • Thermoplastic Polyolefin (TPO)
  • Urethane

*A soft plastic cardboard made with super soft super flexible PVC.

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Vectric Logo

Vectric compatible tool file for 51731-K available for download, click here.

Spektra™ Coated Low Helix Spiral Finisher Speed and Feed Chart

Download PDF
