Non-Ferrous Metal Cutting Saw Blades for Thick Aluminum

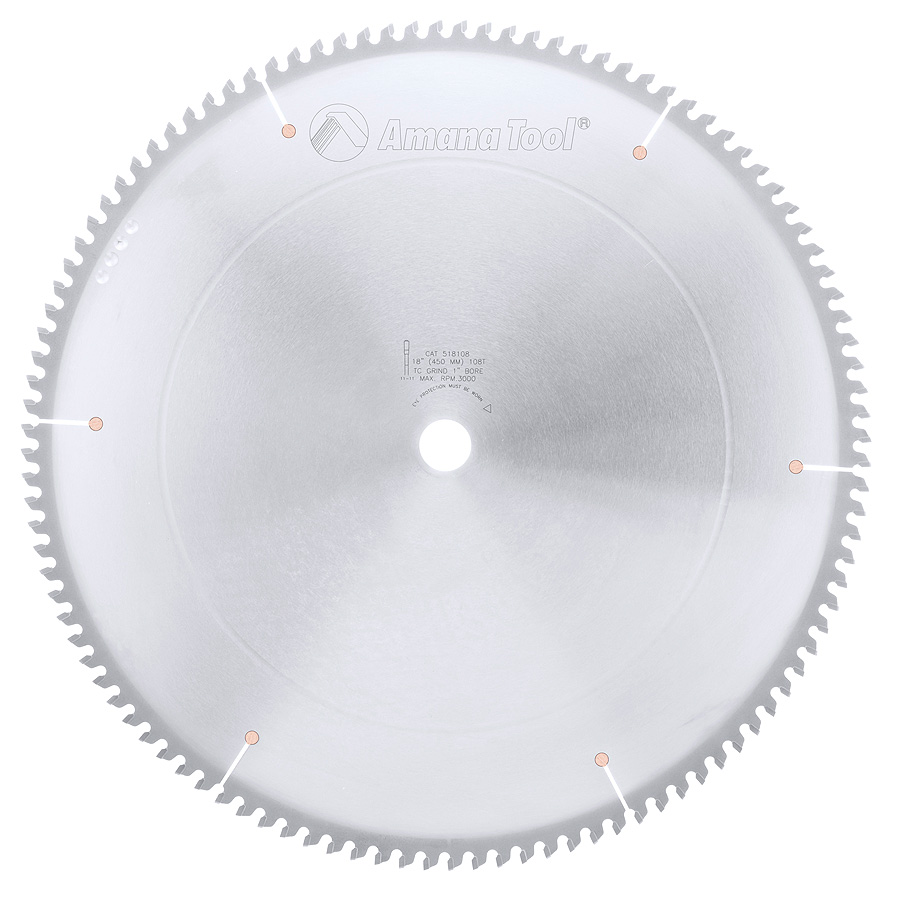

518108 Carbide Tipped Aluminum and Non-Ferrous Metals 18 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

#518108

Specification222
(D) Diameter 18 (450mm)
Teeth 108
(d) Bore 1
Tooth Grind TCG
Hook Angle -6°
Kerf (B) .157 (4.0mm)
Plate (C) .134 (3.4mm)

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Saw Blade Safety Guidelines
