Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum

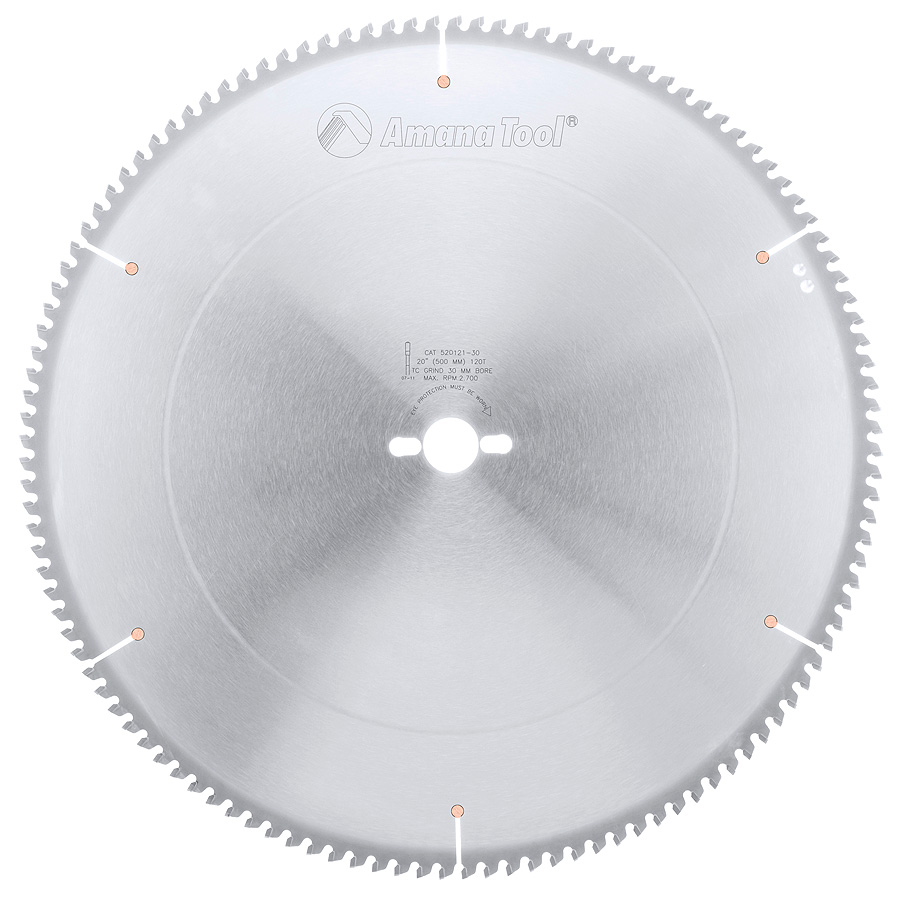

520121-30 Carbide Tipped Aluminum and Non-Ferrous Metals 20 Inch Dia x 120T TCG, -6 Deg, 30mm Bore

#520121-30

Specification222
(D) Diameter 20 (500mm)
Teeth 120
(d) Bore 30mm
Tooth Grind TCG
Kerf (B) .174 (4.4mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .152 (3.9mm)

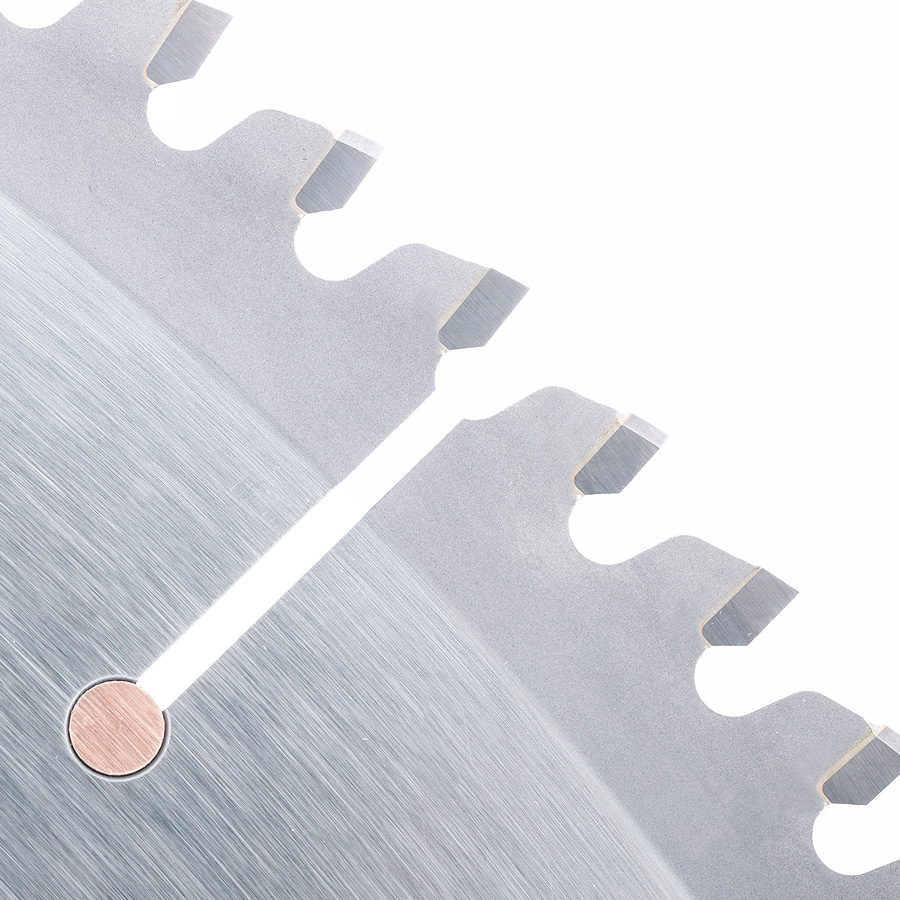

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
