Classical Bead & Cove Router Bits

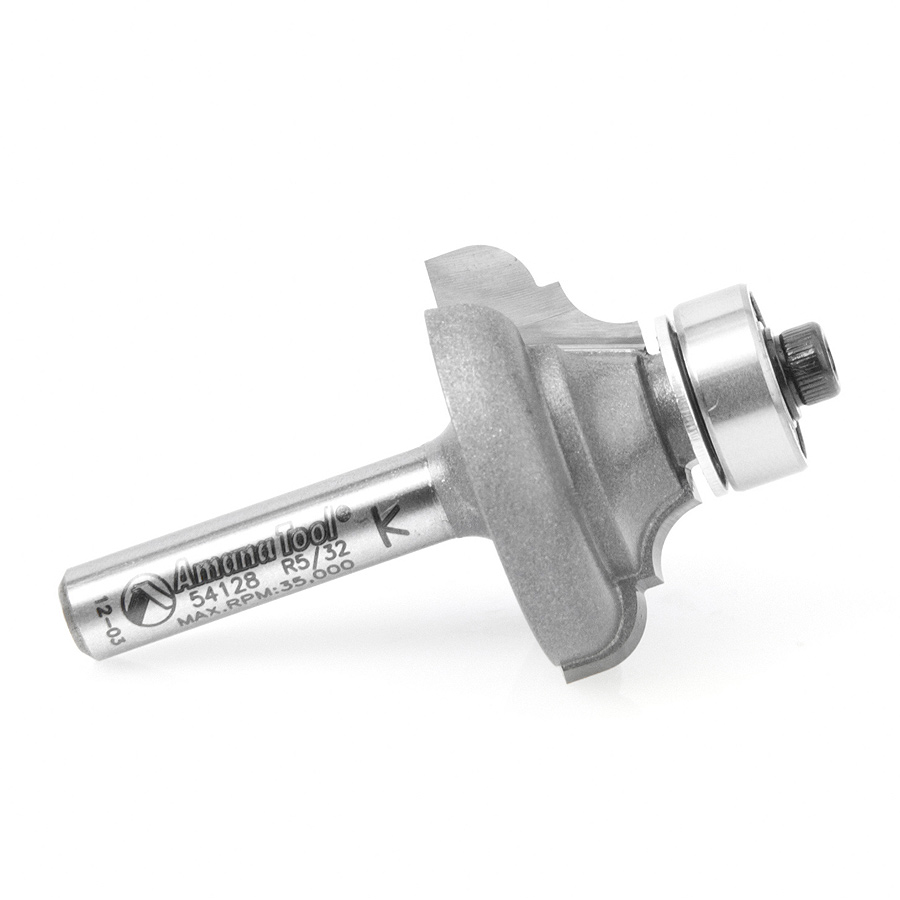

54128 Carbide Tipped Classical Cove & Bead 5/32 x 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank
#54128
Diameter (D) | 1-1/8 |
---|---|
Radius (R) | 5/32 |
Cutting Height (B) | 1/2 |
Shank (d) | 1/4 |
Overall Length (L) | 2 |
R1 | 5/32 |
Flutes | 2 |
The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.
