Classical Bead & Cove Router Bits

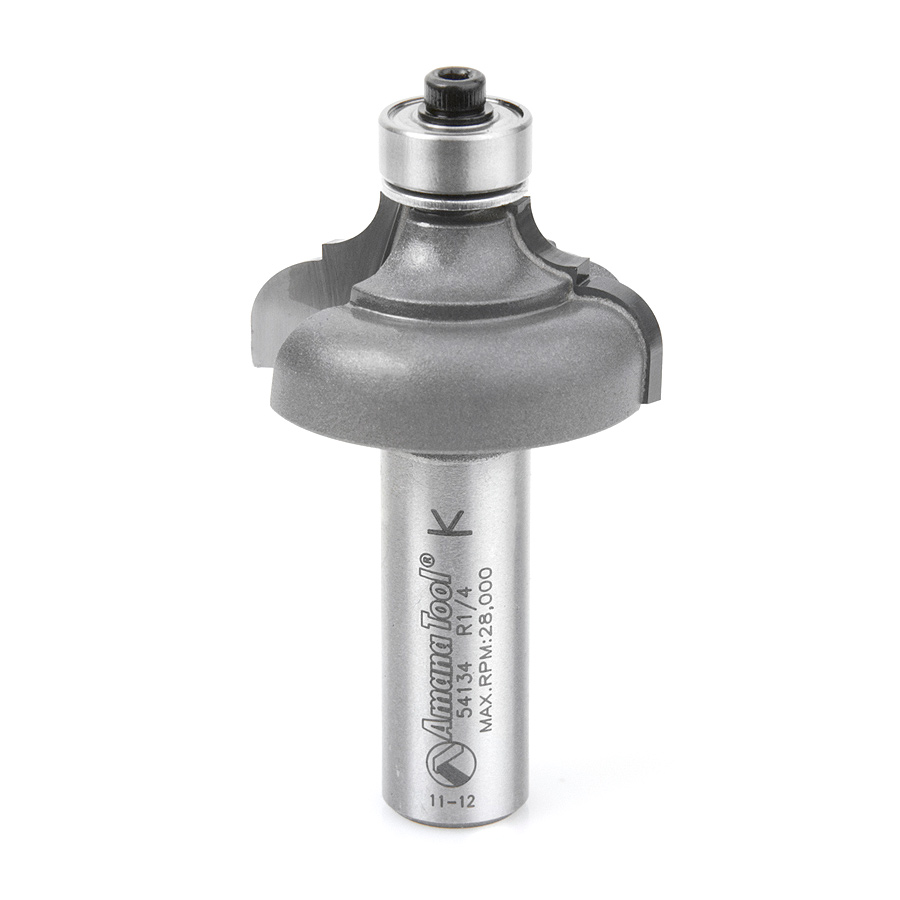

54134 Carbide Tipped Classical Cove & Bead 1/4 x 3/16 Radius x 1-3/8 Dia x 11/16 x 1/2 Inch Shank

#54134

Specification
Diameter (D)1-3/8
Radius (R)1/4
Cutting Height (B)11/16
Shank (d)1/2
Overall Length (L)2-9/16
R13/16
Flutes2

The positions of the bead and the cove are reversed on this series of bits, with the bead coming off the bearing. With the optional 3/8" pilot bearing, the bit produces a fillet at the base of the bead. Largest diameter bits should be run at reduced speed. Use in a handheld or table-mounted router.

Bearing(s)Optional 3/8 BearingScrewDust ShieldFlat Washer
