Architectural Molding Router Bits

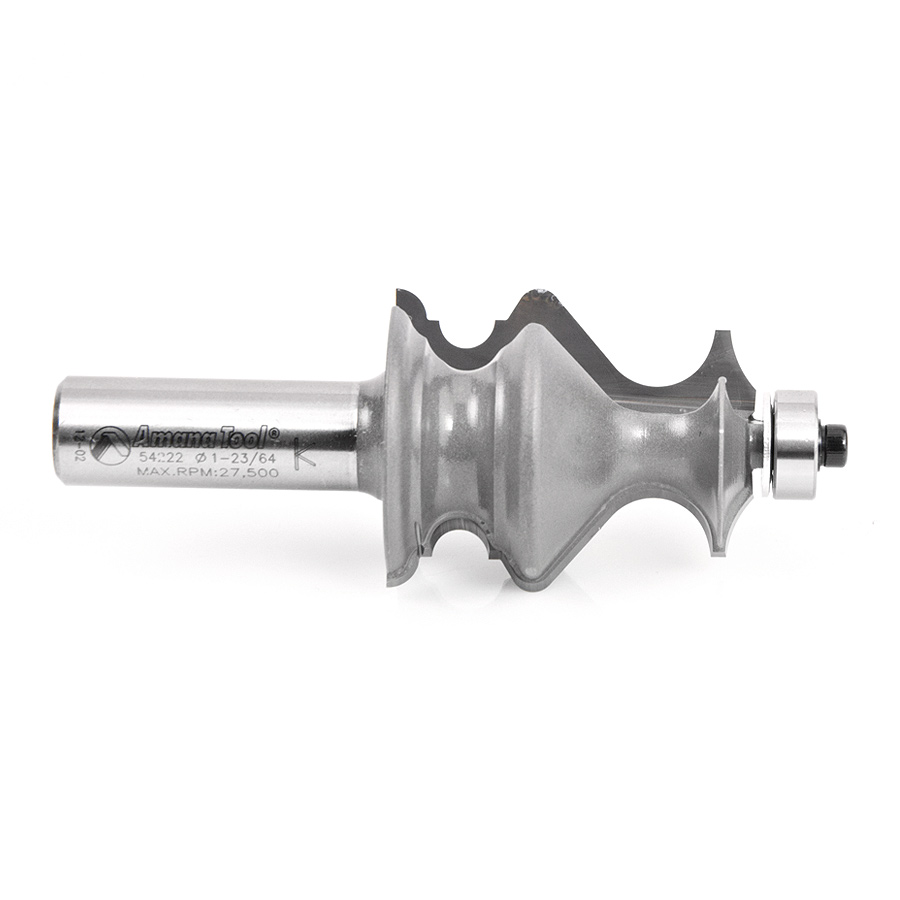

54222 Carbide Tipped Classical Architectural Molding 1/8 x 3/32 x 1/4 x 7/16 Radius x 1-3/8 Dia x 1-5/8 x 1/2 Inch Shank
#54222
| Diameter (D) | 1-3/8 |
|---|---|
| Radius (R) | 1/8 |
| Cutting Height (B) | 1-5/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/2 |
| Max RPM | 18,000 |
| Type | #8 |
| R2 | 1/4 |
| Replacement Bearing | 47706 |
| R3 | 7/16 |
| R1 | 3/32 |
| Flutes | 2 |
These bits are designed for routing architectural and furniture moldings and trim. Almost all have the profile laid out vertically, reducing the diameter of the bit. These bits should be used in a 2+ horsepower, table-mounted router, and many should be run at reduced speed. Although most have ball-bearing guides, guiding the cuts with the fence is recommended.
Maximum RPM 18,000
