Multi-Sided Glue Joint / Bird's-Mouth Router Bits

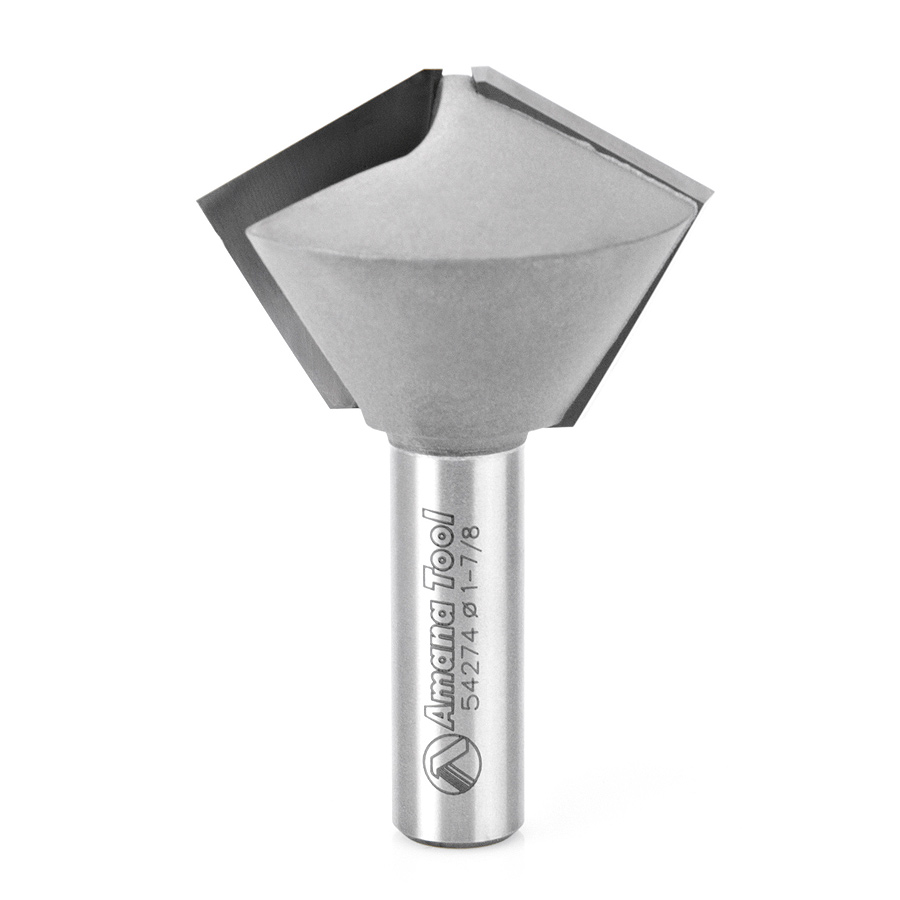

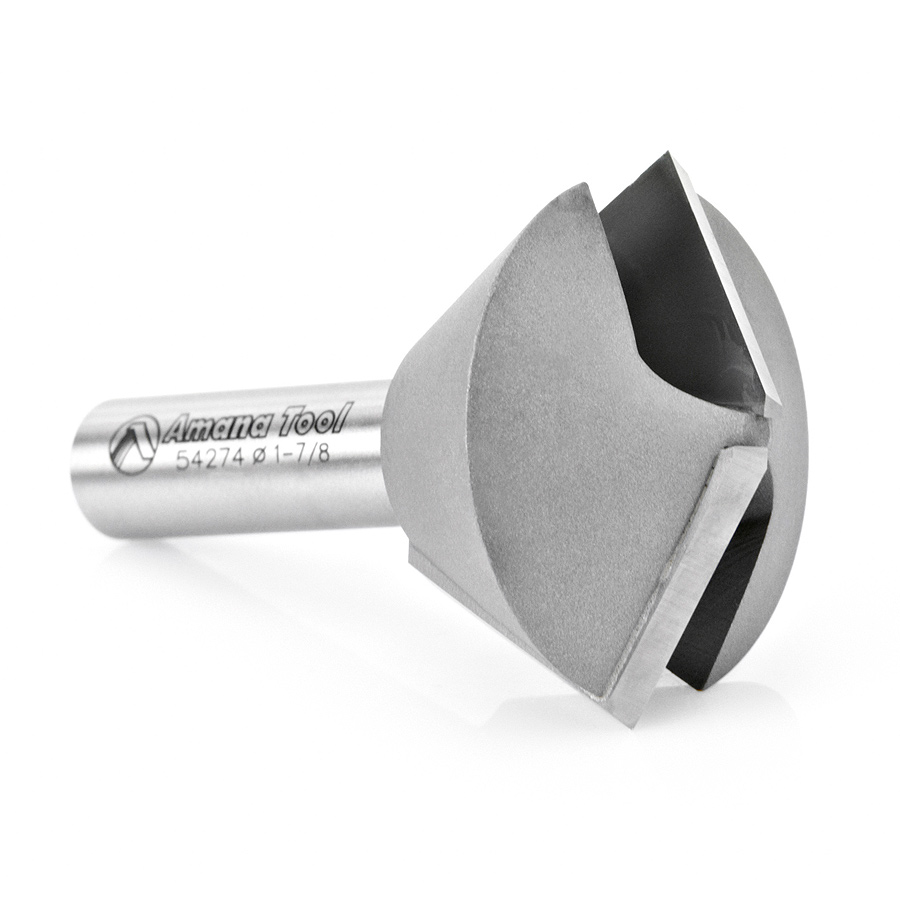

54274 Carbide Tipped Multi-Sided Glue Joint 60 / 30 Deg x 1-7/8 Dia x 1-1/4 x 1/2 Inch Shank

#54274

Specification222
Angle (a°) 60°/30°
Diameter (D) 1-7/8
Cutting Height (B) 1-1/4
Shank (d) 1/2
Overall Length (L) 2-7/8
# of Sides 6 or 12
If you're looking for a better way to construct multi-sided boxes, planters, and columns, then look no further. With these bits, there's no need for complex miters and time-consuming set-ups. Instead, simply choose the bit based upon the number of sides on the box, rout the joint, and assemble. Unlike a miter joint, the joint created by these bits aligns itself. And the joint stays in alignment while gluing; no more slipping and sliding out of position.
