Base Molding Ogee Edge Detail Router Bits

54297 Carbide Tipped Base Molding Ogee Edge Detail 5/16 x 3/8 Radius x 1-7/16 Dia x 19/32 x 1/2 Inch Shank

#54297

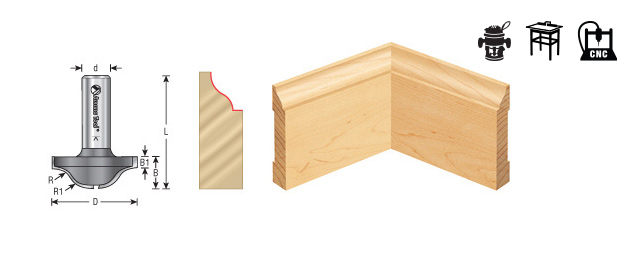

Specification
Diameter (D) 1-7/16
Radius (R) 5/16
Cutting Height (B) 19/32
B1 1/4
Shank (d) 1/2
Overall Length (L) 2
R1 3/8
Flutes 2

One of the easiest ways to dress up a room is to replace the skimpy base molding with a wide, bold profile. Amana Tool® offers classic ogee profiles in two sizes so that you can choose a size that best fits with the architectural details in the room. For quick easy installation we recommend that you attach the molding to the top of the base. This method greatly simplifies installation by allowing for a butt joint on inside corners.

Vectric compatible tool file for 54297 available for download, click here.

File Size : 438.88 KB
Create account or Login to download
File Size : 65.04 KB
Create account or Login to download
