Crown Molding Router Bits

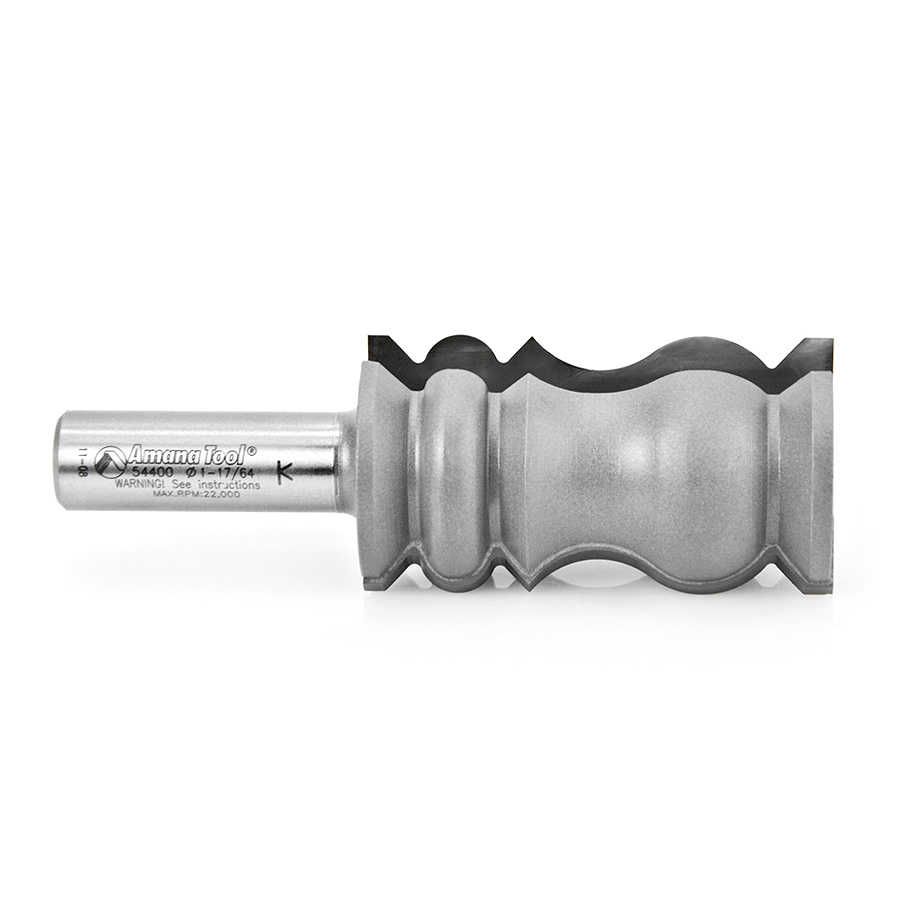

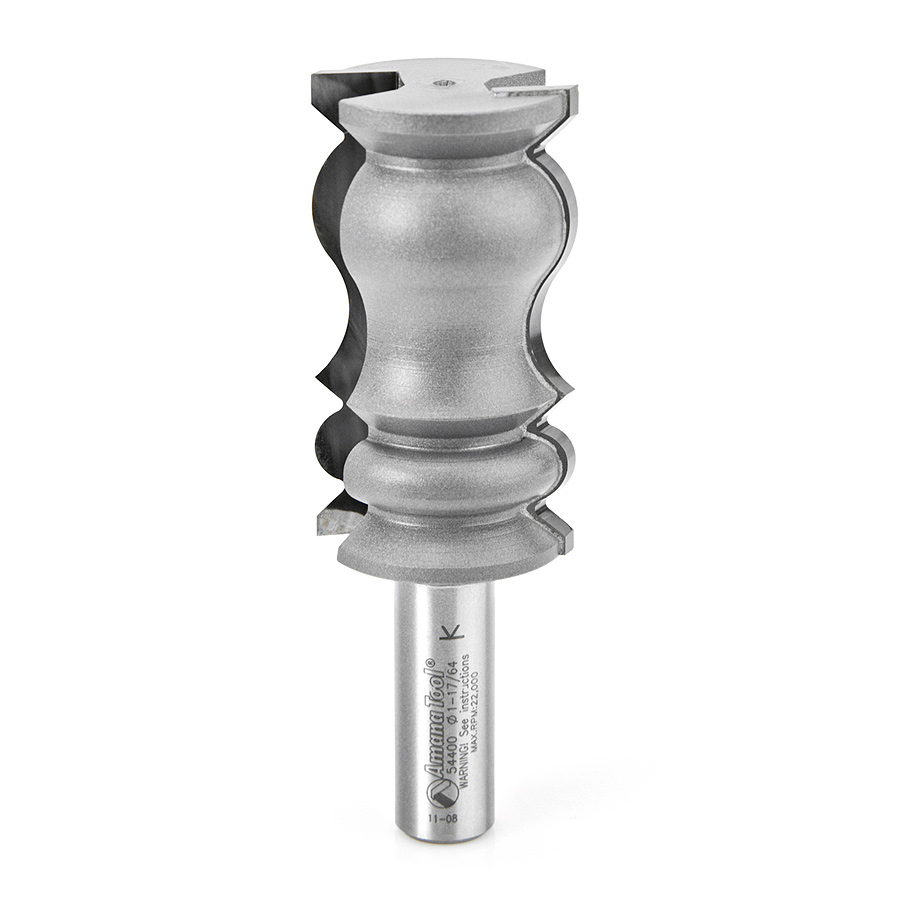

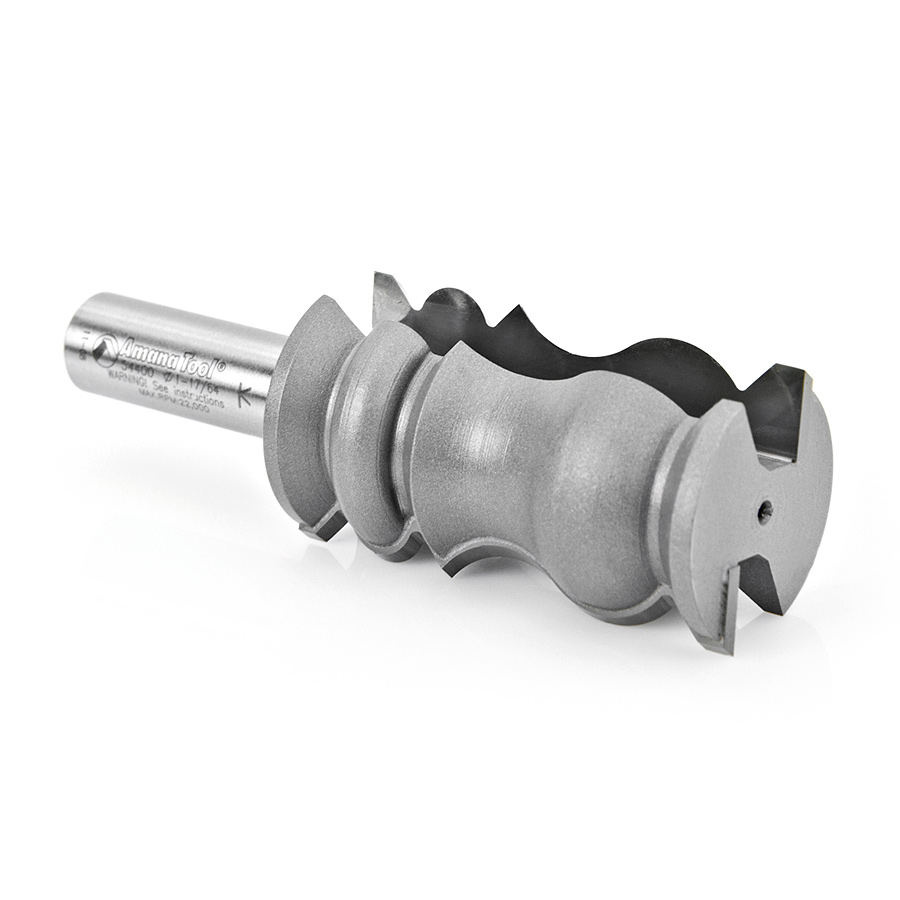

54400 Carbide Tipped Crown Molding 3/16 x 7/16 Radius x 1-1/4 Dia x 2-1/4 x 1/2 Inch Shank

#54400

Specification
Diameter (D) 1-1/4
Radius (R) 3/16
Cutting Height (B) 2-1/4
Shank (d) 1/2
Overall Length (L) 3-3/4
Max RPM 22,000
R1 7/16
Flutes 2

Produce mid-sized crown, cove and bead molding profiles for architectural and furniture applications. The bits cut the profile and bevel, as necessary, which is the show face of the workpiece.

Bevel the top and bottom edges on the table saw to complete the molding. Use a 2+ horsepower router, mounted in a table, with a fence to guide the work. To prolong cutter life, reduce strain on the router. To get the best cut finish, make several passes to achieve full cut depth. Bevel back edges, cutting off 45° excess, with one of our chamfer bits.

54400 DXF

File Size : 710.6 KB
Create account or Login to download

54400 PDF

File Size : 71.64 KB
Create account or Login to download
