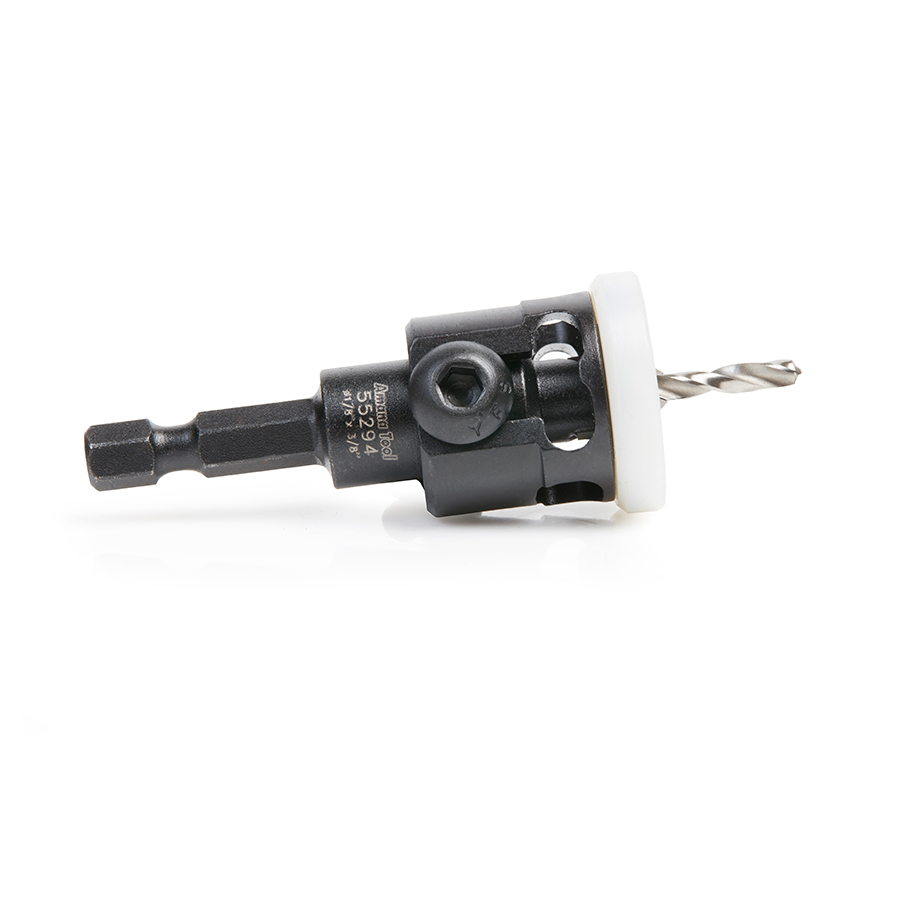

55294 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank

#55294

Specification
(a°) Angle49°
(B) Cutting Height5/64-11/32
(D) Diameter3/8
(d) Shank1/4
Overall Length (L)2-3/8
Drill Din1897
Wood Screw Size6
D11/8
Replacement Drill630-226

Carbide Tipped Countersink with Low Friction Adjustable Depth Stop

Please or

Low friction polymer collar. No surface scratches or burn marks!

These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.

Quick release 1/4" hex shank with slow spiral, HSS M2 fully ground drill bit included.

Excellent for Drilling:

  • Natural Woods
  • Man-Made Boards
  • MDF
  • Chipboard
  • Plywood
  • Aluminum/Non-Ferrous
  • Aluminum Composite Material (ACM)
  • Composites
  • Composite Decking Materials

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Drill (Included)NF1/4 x 1/4 Set Screw for Tightening Depth StopNF1/4-28 x 3/16 Set Screw for Drill Tightening1/8 x 5/32 Double-Sided Hex Key (Included)
