Carbide Tipped Countersink with Low Friction Adjustable Depth Stop

55295 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 1/2 Dia x 9/64 Drill Dia x 1/4 Inch Quick Release Hex Shank

#55295

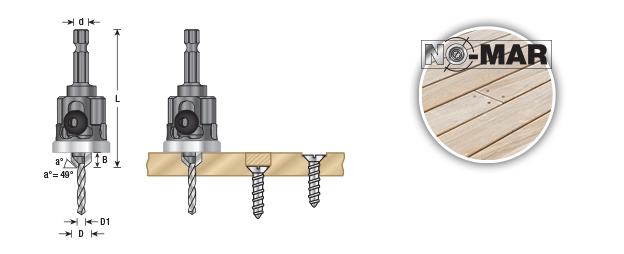

Specification
(a°) Angle 49°
(D) Diameter 1/2
(B) Cutting Height 5/64-11/32
(d) Shank 1/4
Overall Length (L) 2-3/8
Drill Din 1897
Wood Screw Size 6
D1 9/64
Replacement Drill 630-228

A must have tool for every woodworker!

Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).

Low friction polymer collar. No surface scratches or burn marks!

These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.

Quick release 1/4" hex shank with slow spiral, HSS M2 fully ground drill bit included.

Excellent for Drilling:

  • Natural Woods
  • Man-Made Boards
  • MDF
  • Chipboard
  • Plywood
  • Aluminum/Non-Ferrous*
  • Aluminum Composite Material (ACM)
  • Composites
  • Composite Decking Materials
  • High Density Polyethylene (HDPE)

Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.

Replacement Drill (Included)NF1/4 x 1/4 Set Screw for Tightening Depth StopNF1/4-28 x 3/16 Set Screw for Drill Tightening1/8 x 5/32 Double-Sided Hex Key (Included)
630-228
