Solid Carbide 2D/3D Carving Tapered Ball Nose with Aluminum Titanium Nitride (AlTiN) coating

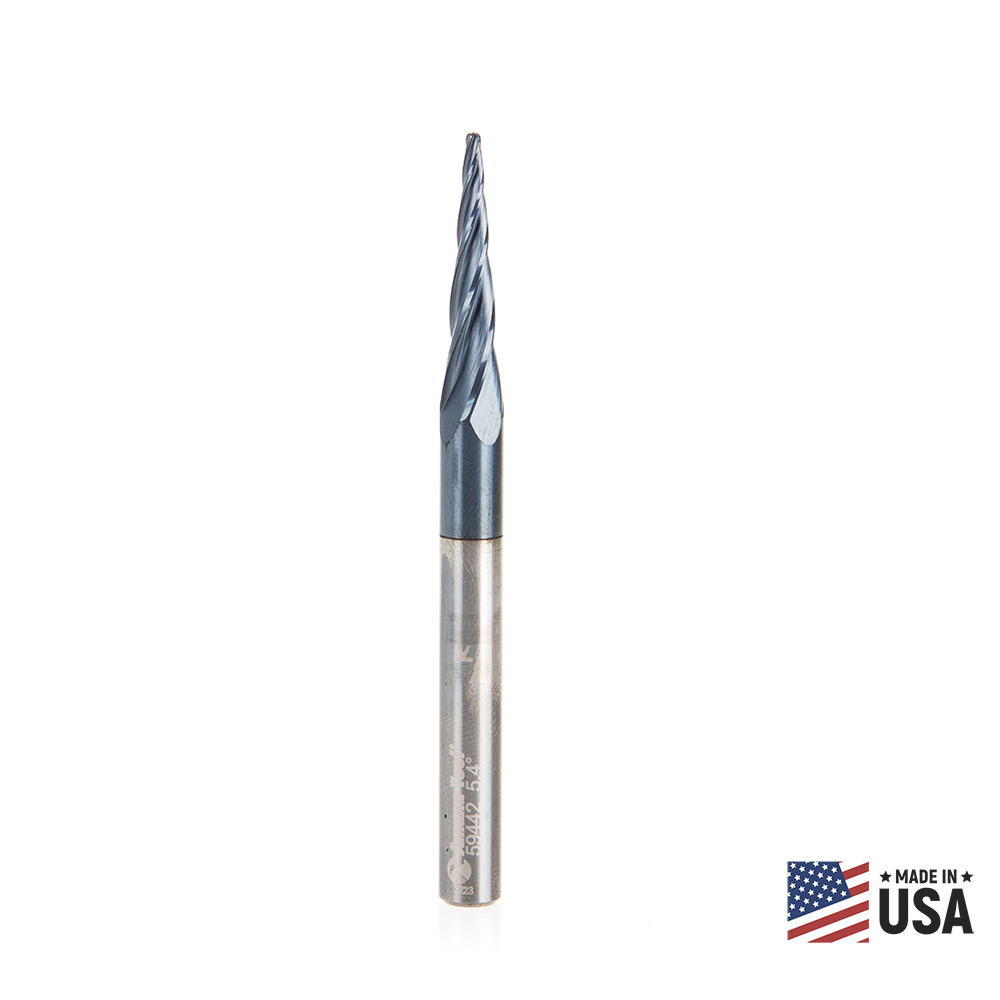

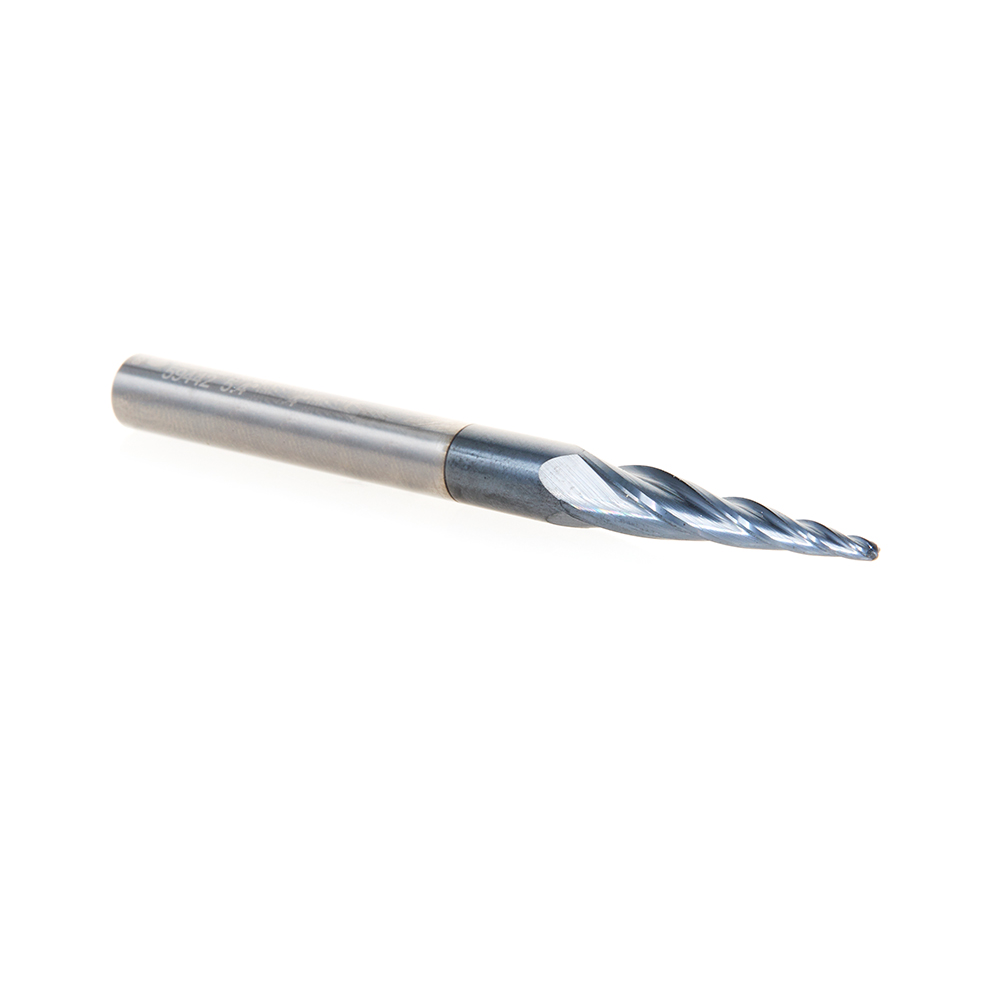

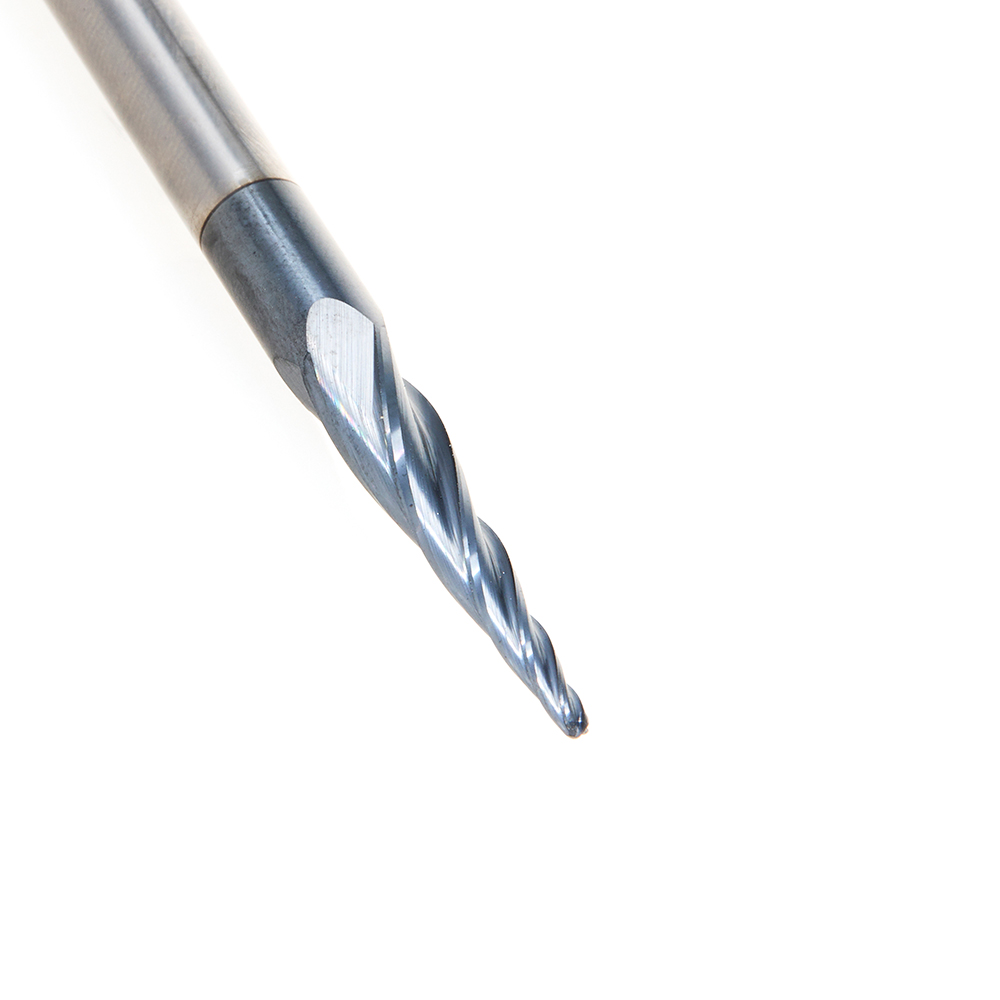

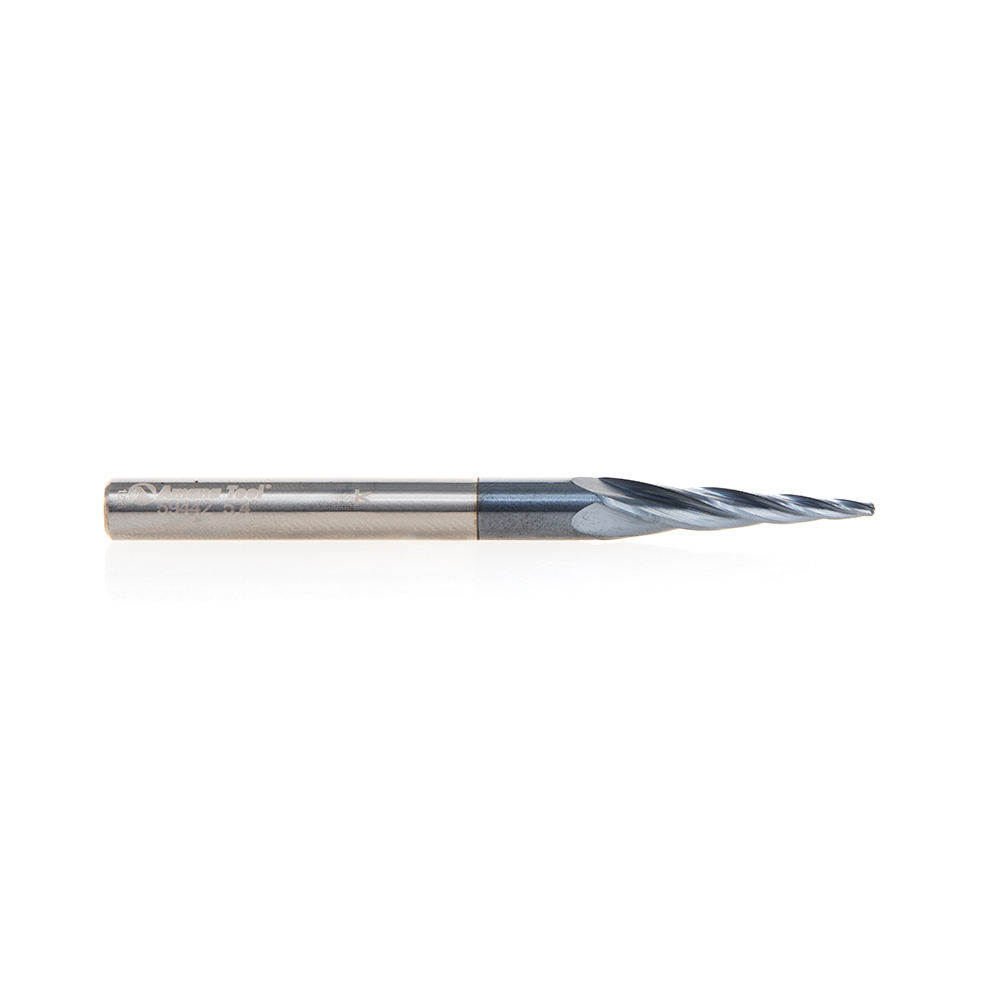

59442 Solid Carbide CNC 2D/3D Carving Steel, Stainless Steel & Composite Cutting Tapered Ball Nose with AlTiN Coating 4-Flute x 5.4 Deg x 1/32 Radius 1/16 Dia x 1-1/16 x 1/4 Shank x 3 Inch Long Up-Cut Router Bit
#59442
| (a°) Angle | 5.4° |
|---|---|
| (D) Diameter | 1/16 |
| (R) Radius | 1/32 |
| (B) Cutting Height | 1-1/16 |
| (d) Shank | 1/4 |
| Overall Length (L) | 3 |
| Type | Ball Nose |
| Flutes | 4 |
Specially designed for 2D and 3D CNC profiling and carving in steel and stainless steel with CNC. The ability to CNC machine a range of radiused profiles in both ferrous and non-ferrous materials.
Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity either in terms of speed or longevity with or without coolant.
Excellent for cutting:
- Stainless Steel
- Steel
- Cast Iron
- Composites
- Metal Composite Material (MCM)
- Plastics
- Hardened Alloy Steels
- Titanium (up to 40HRc Hardness)
AlTiN coating has many benefits:
- Extra wear resistance
- Allows for faster feed and speed rates
- Cutting edge protected from wear
- Better chip evacuation
- Less heat build up
- Superior cutting quality and extended tool life
AlTin Spiral 2D/3D Carving Tapered Ball Nose for Steel and Stainless Steel Speed Chart
Download PDF
