Point Cutting Roundover Router Bits

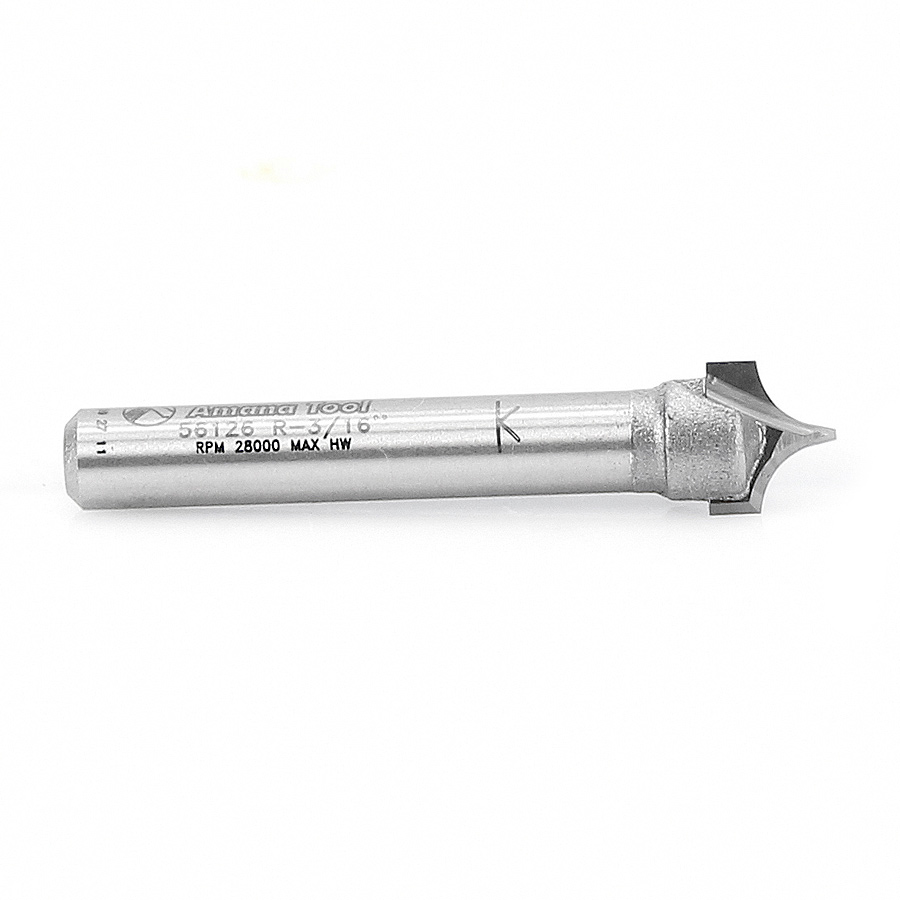

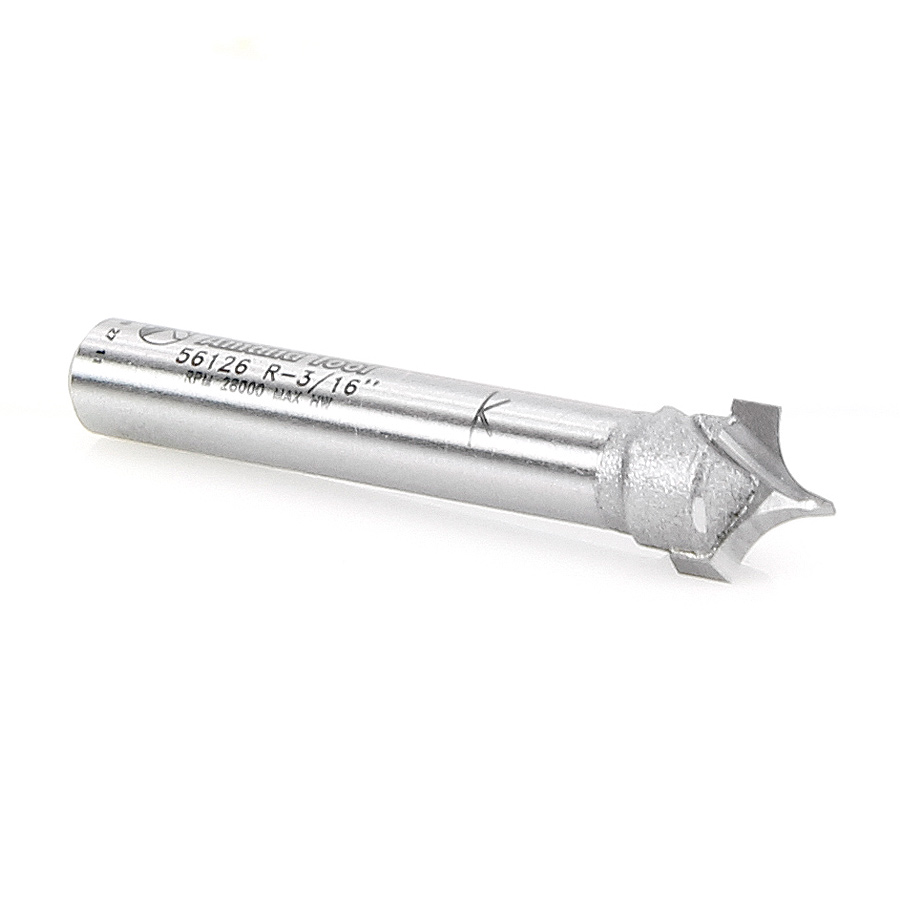

56126 Carbide Tipped Point Cutting Roundover 3/16 Radius x 3/8 Dia x 19/64 x 1/4 Shank Router Bit

#56126

Specification
Diameter (D) 3/8
D1 .028"
Radius (R) 3/16
Cutting Height (B) 19/64
B1 3/16
Shank (d) 1/4
Overall Length (L) 1-7/8
Type Carbide Tipped
Flutes 2

For lettering, engraving, signmaking, fluting and decorative trimming.

Note: Due to very fine plunge point, bit is not guaranteed against breakage.

Vectric compatible tool file for 56126 available for download, click here.

56126 DXF

File Size : 133.1 KB
Create account or Login to download

56126 PDF

File Size : 84.33 KB
Create account or Login to download

Point Cutting Round Over Speed and Feed Chart

Download PDF

Product Questions

Max RPM?
Lead in RPM?
Lead out RPM?
Needed for programming please
Question by: Jeffrey Vargas on Jun 15, 2017, 1:00 PM
Please supply us with the material being cut so we are able to recommend a starting feed and speed rate for this tool.
Answer by: Amana Admin on Jun 28, 2017, 2:43 PM
Please supply us with the material being cut so we are able to recommend a starting feed and speed rate for this tool.
Answer by: Amana Admin on Jun 28, 2017, 2:43 PM

Question on 56126 Carbide Tipped Point Cutting Roundover 3/16 Radius x 3/8 Dia x 19/64 x 1/4 Shank Router Bit
