Corner Rounding Router Bits with Ultra-Glide Ball Bearing Guide

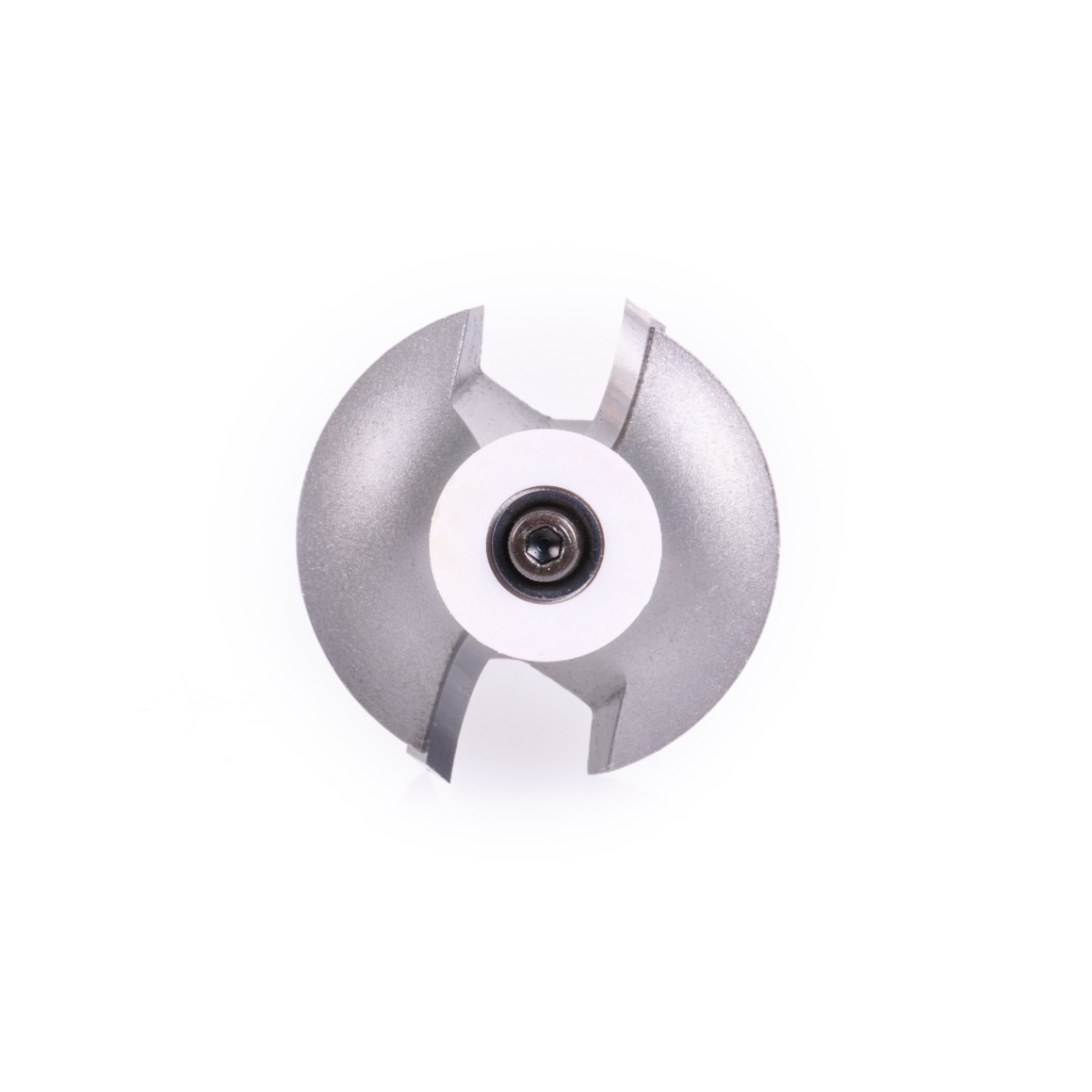

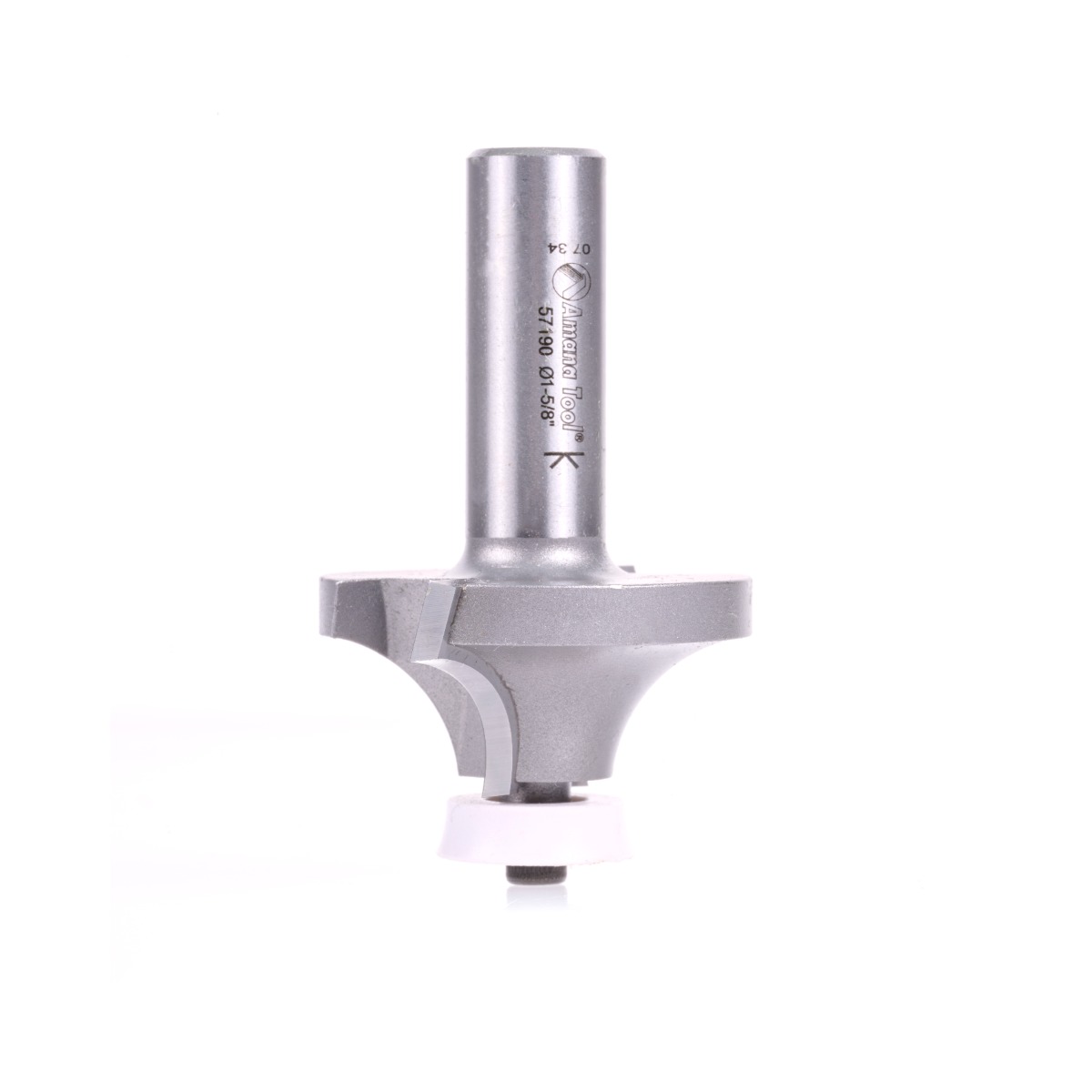

57190 Carbide Tipped Corner Rounding with Ultra-Glide Radius Bearing Guide Solid Surface 1-5/8 Dia x 3/4 x 1/2 Radius x 1/2 Inch Shank

#57190

Specification
Diameter (D) 1-5/8
D1 5/8
Radius (R) 1/2
Cutting Height (B) 3/4
Shank (d) 1/2
Overall Length (L) 2-3/4
Replacement Bearing 47767
Flutes 2
A 1

This unique tool produces a true 180° bullnose in two passes. Make the first pass with a regular 1/4" x 5/8" steel bearing (optional). Switch to the Ultra-Glide™ radius bearing for the second pass. This unique bearing follows the curved surface, eliminating the flat track typical of the two-pass cut with the regular bearing.

Standard steel 1/4 x 5/8 bearing - use #47712 - (order separately).

Excellent for cutting:

  • Acrylic
  • Laminate
  • MDF/HDF
  • Melamine
  • Wood
  • Plywood
Replacement Ultra-Glide™ BearingOptional Steel Bearing
