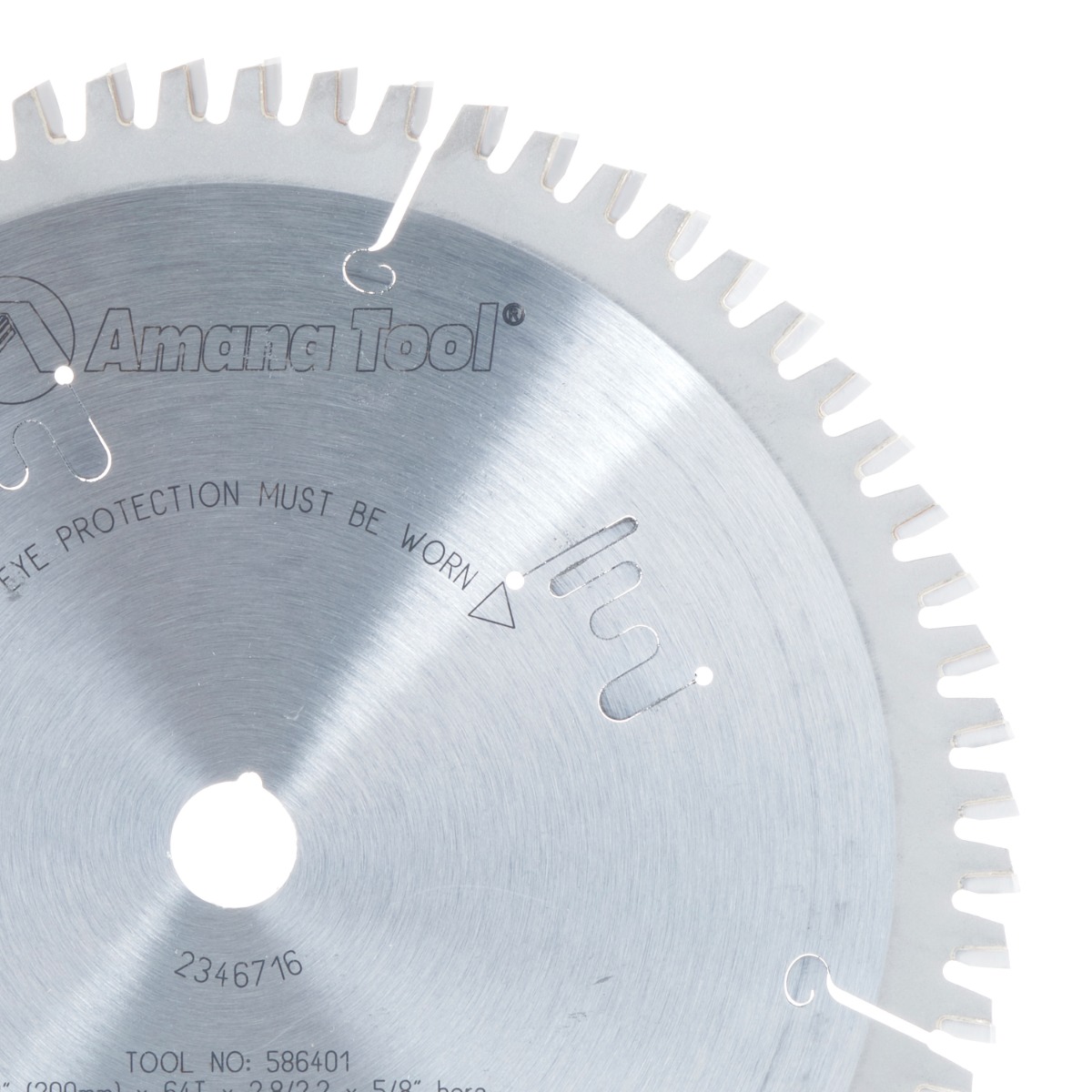

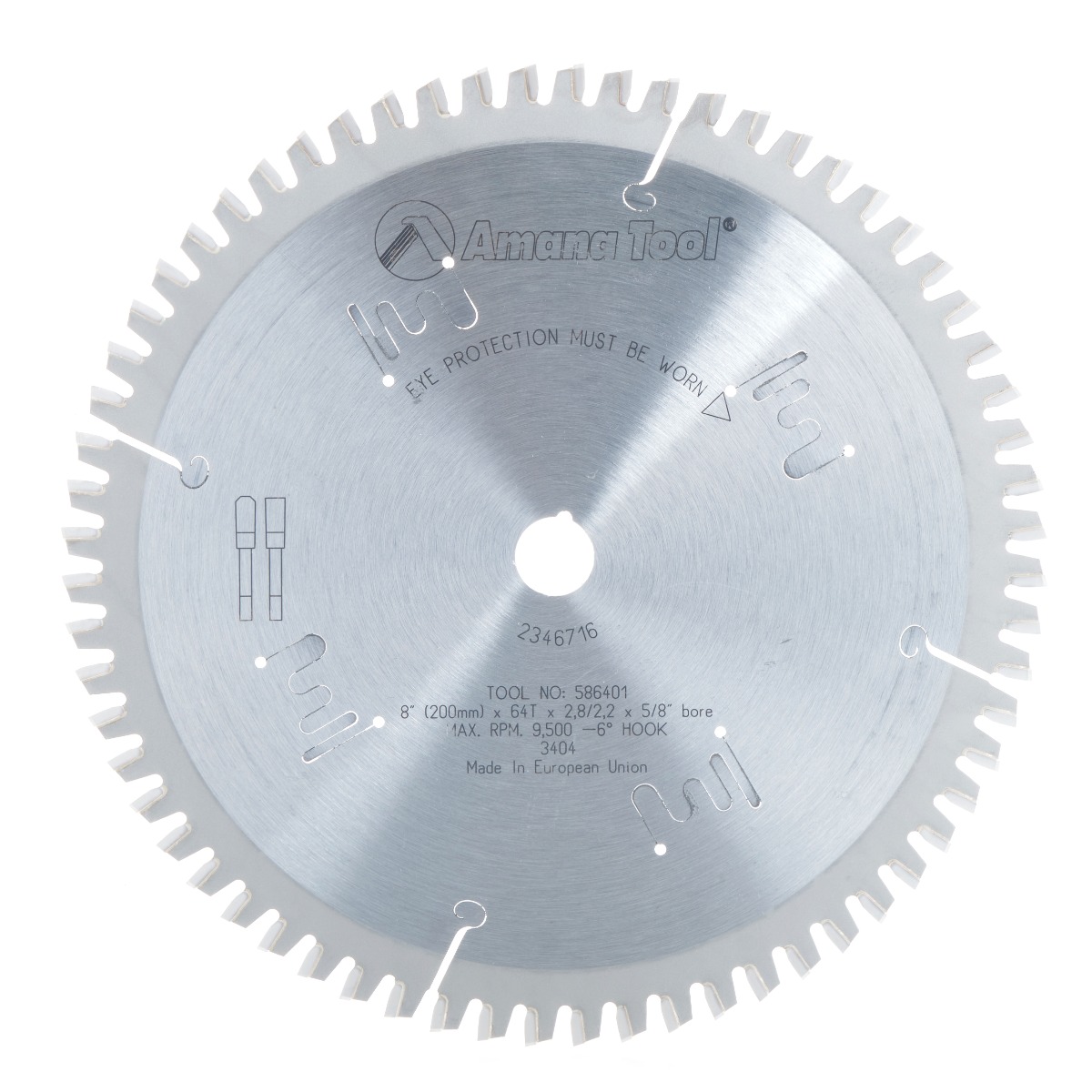

586401 Carbide Tipped Aluminum and Non-Ferrous Metals 8 Inch Dia x 64T TCG, -6 Deg, 5/8 Bore


(D) Diameter8 (200mm)
(d) Bore5/8
Tooth GrindTCG
Hook Angle-6°
Kerf (B).110 (2.8mm)
Plate (C).087 (2.2mm)

Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum

Please or

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning: Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
