CNC Solid Carbide AlTiN Coated Single Form Threadmill

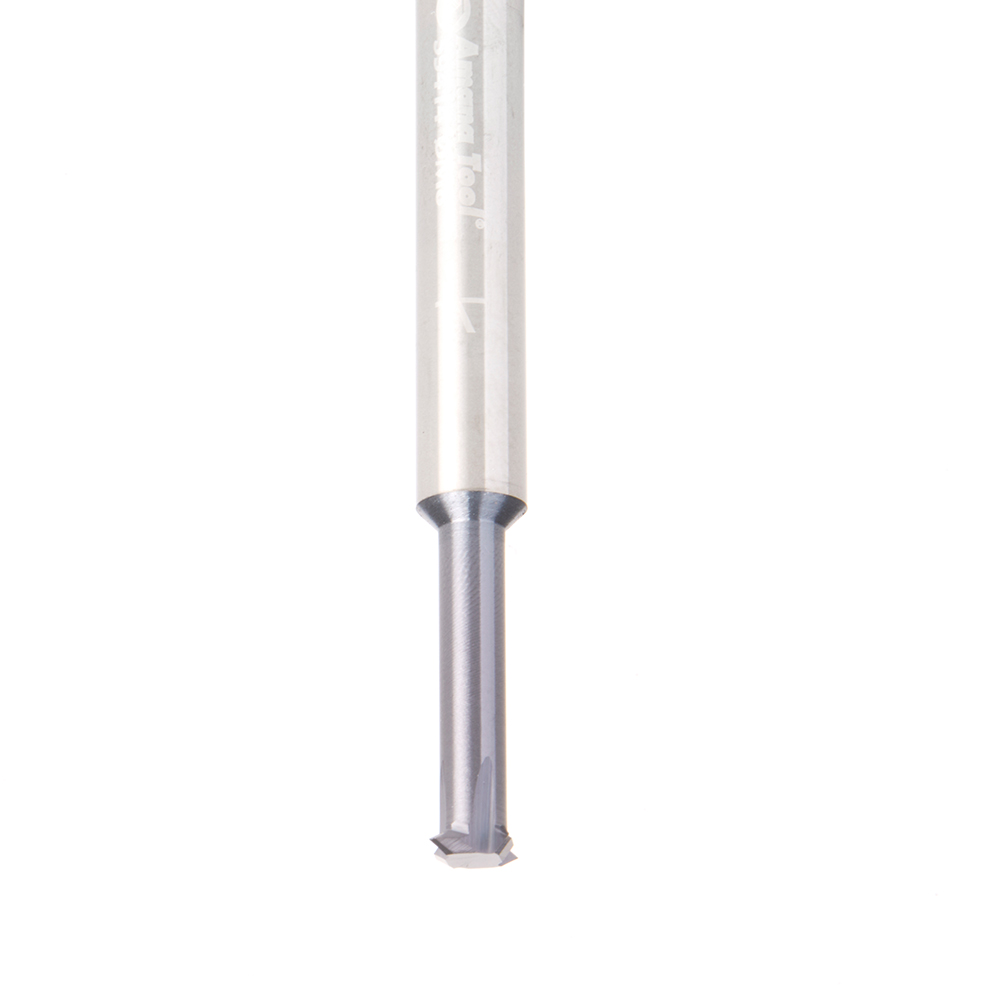

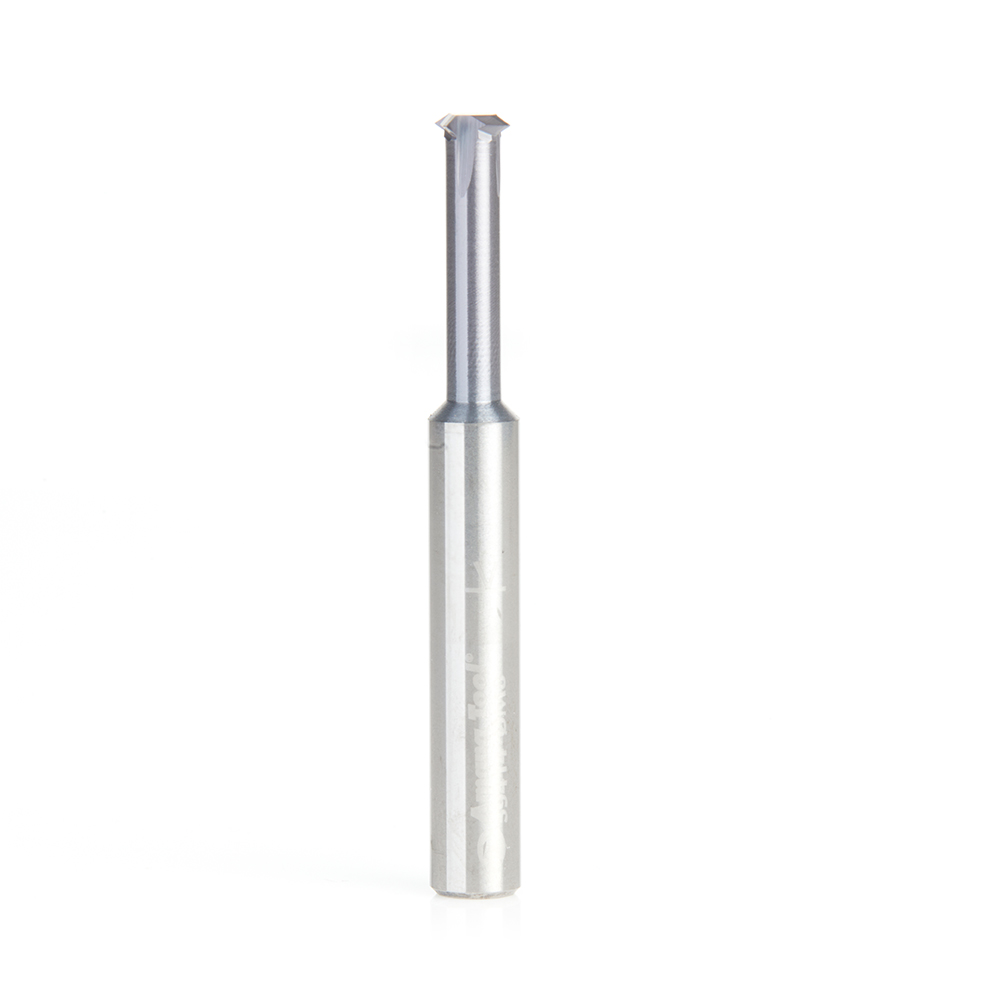

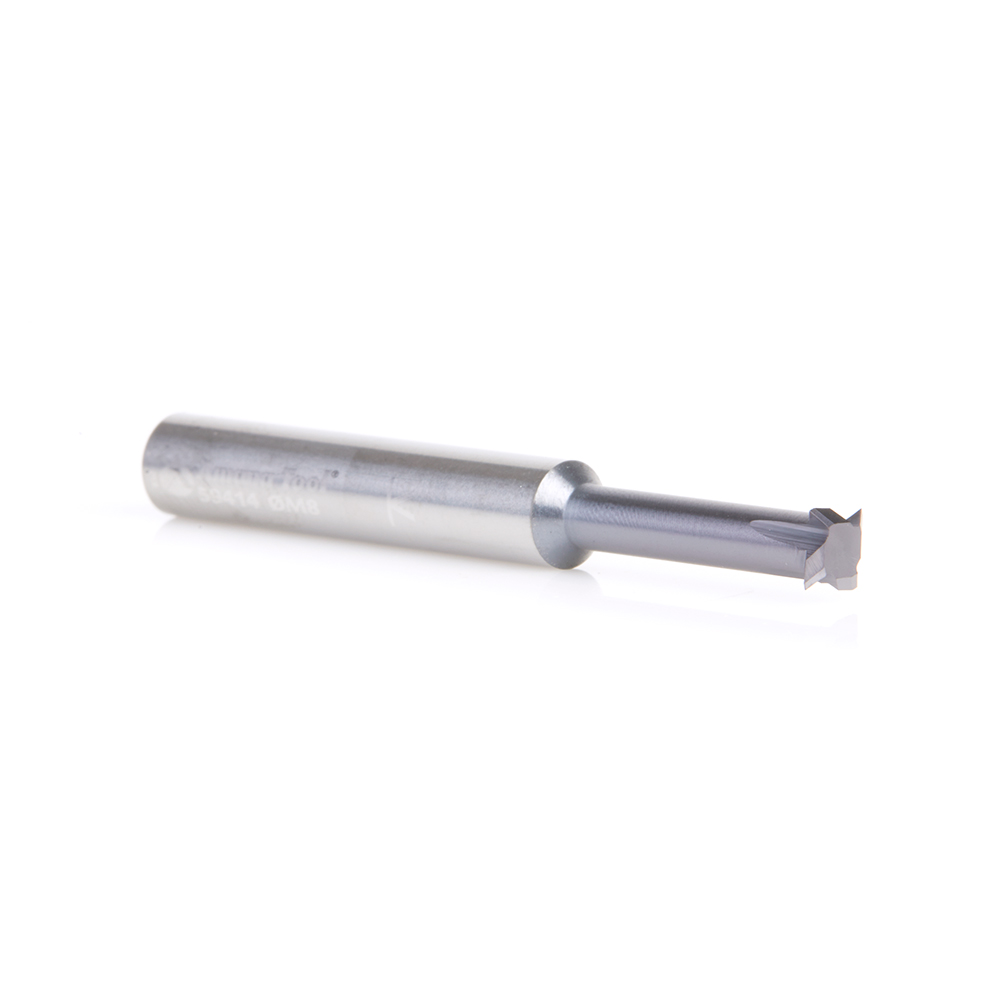

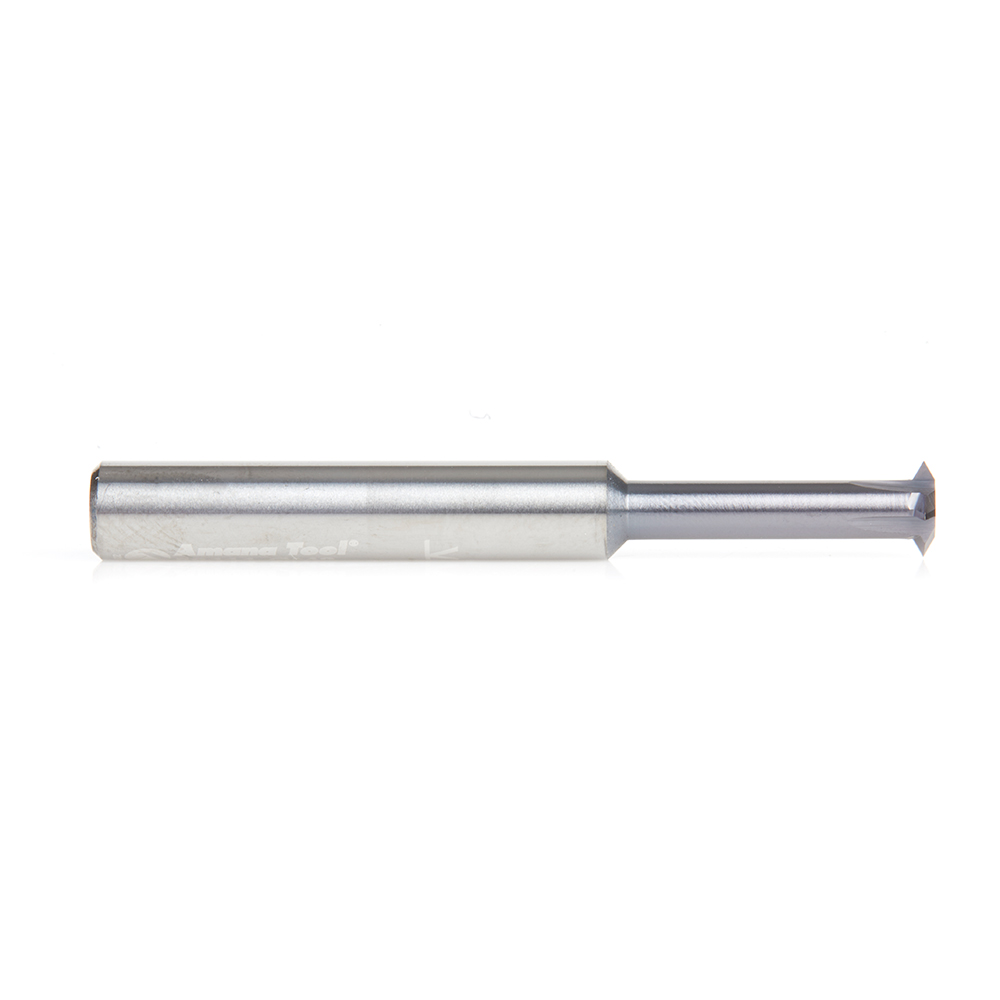

59414 CNC Solid Carbide Single Form Threadmill 6mm Dia x 18mm x 6mm Shank AlTiN Coated
#59414
| Thread | M8 |
|---|---|
| (D) Diameter | 6mm |
| D1 | 3.6mm |
| (B) Cutting Height | 18mm |
| B1 | 1.39mm |
| (d) Shank | 6mm |
| Overall Length (L) | 50mm |

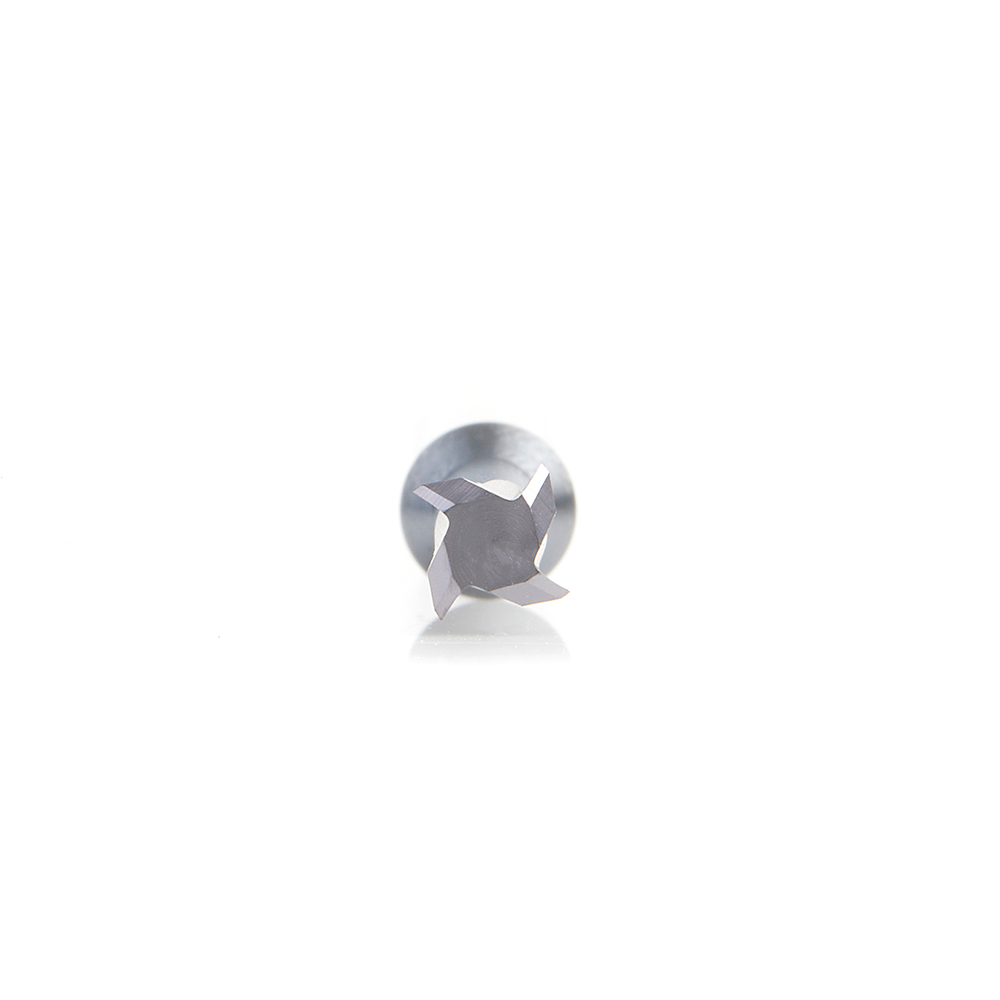

| Flutes | 4 |
Tool is designed to cut internal and external and can mill mulitple pitches.
- Cuts internal and external 60º UN threads

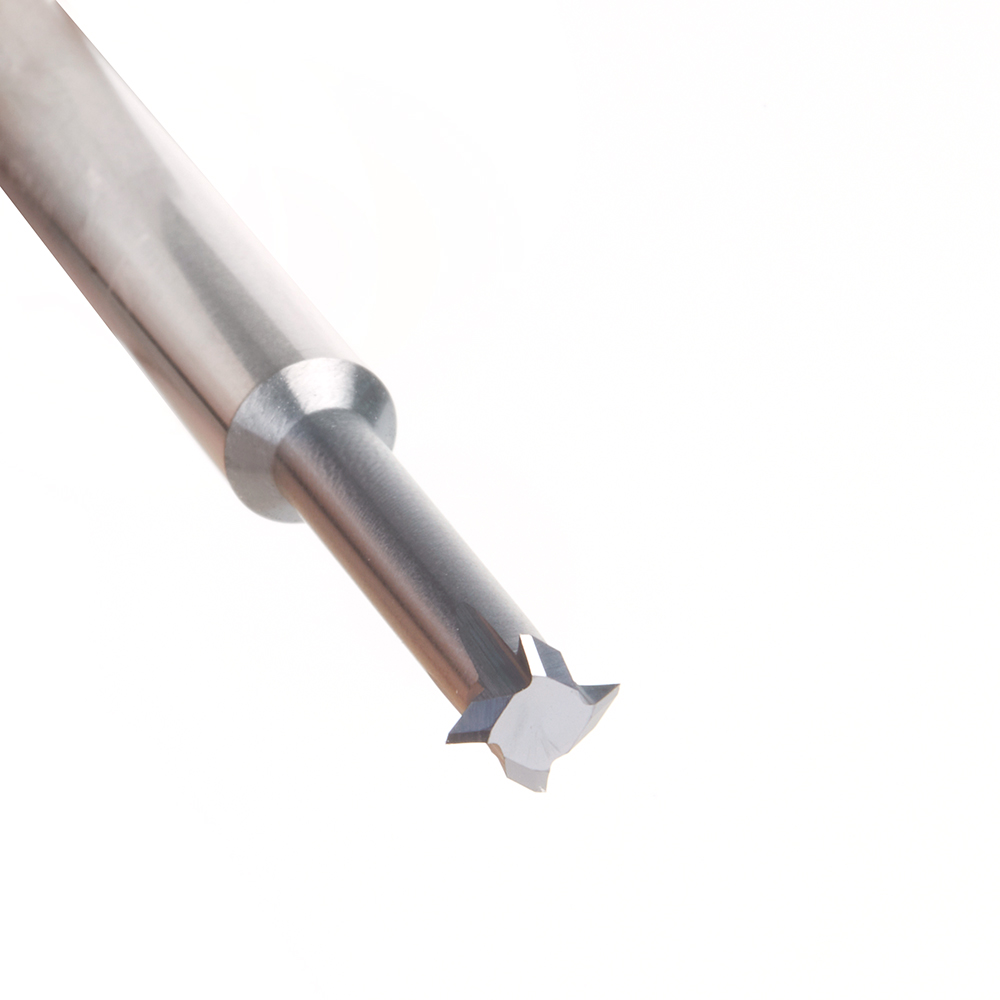

- Tip of included angle ground to a point
Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.
Not for use in handheld drills or handheld routers.
Metric Thread Pitch
Bolt Diameter - Standard Thread Pitch
M5 - .8mm
M6 – 1.0mm
M8 – 1.25mm
M10 – 1.5mm
- Stainless Steel
- Steel
- Titanium
- Cast Iron
- Aluminum/Non-Ferrous Materials
- Acrylic/Plastic
AlTiN Coating Benefits:
- Extra wear resistance
- Allows for faster feed and speed rates
- Cutting edge protected from wear
- Better chip evacuation
- Less heat build up
- Superior cutting quality and extended tool life
WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.
WARNING: Must have a CNC machine and the software to accept the programming needed to utilize helical circular interpolation.
Note: For optimal results and extended tool life use mist lubricant system or air cooling.
