CNC Solid Carbide AlTiN Coated Single Form Threadmill

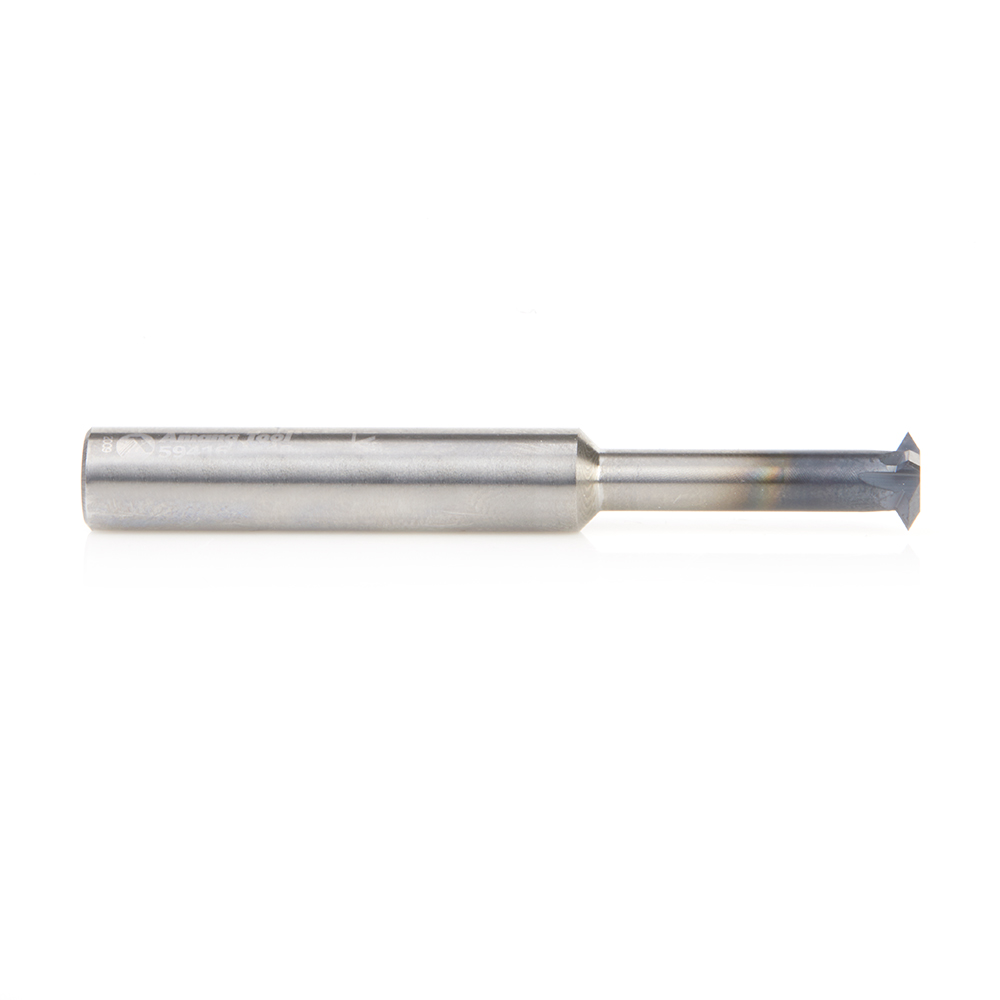

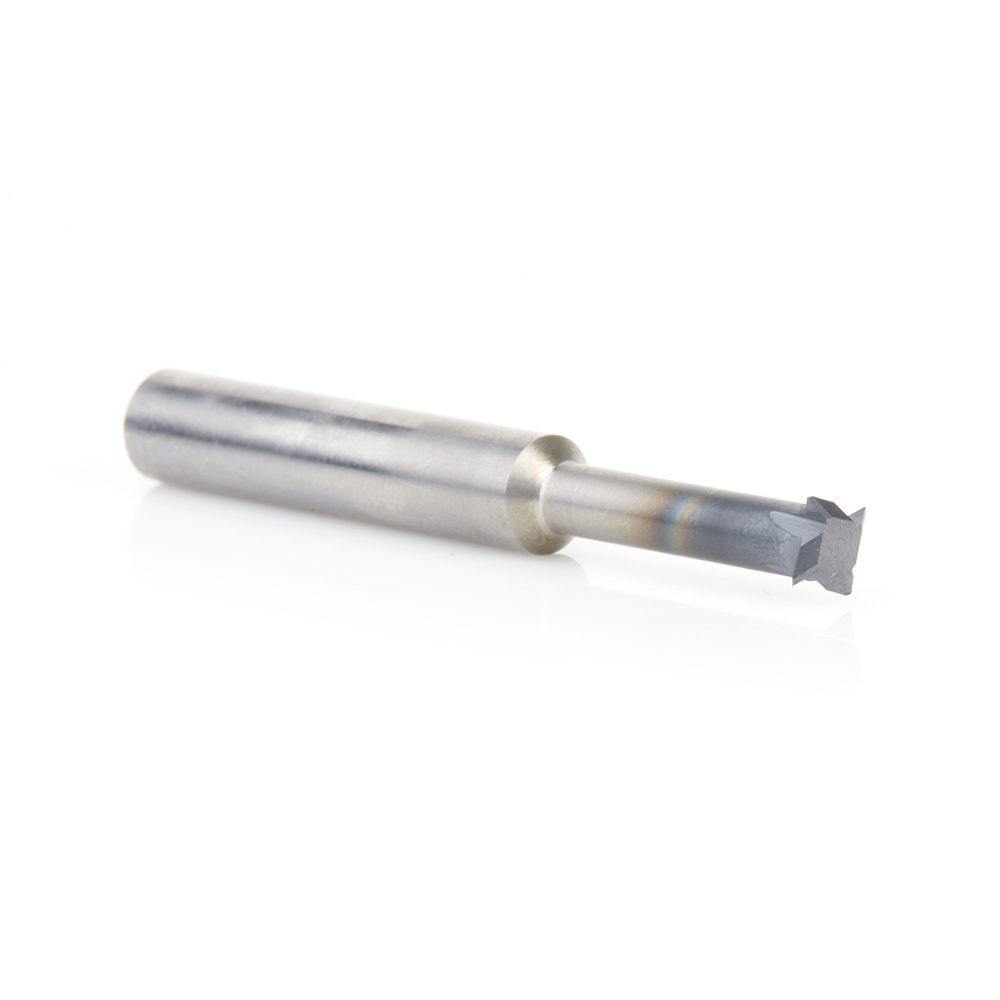

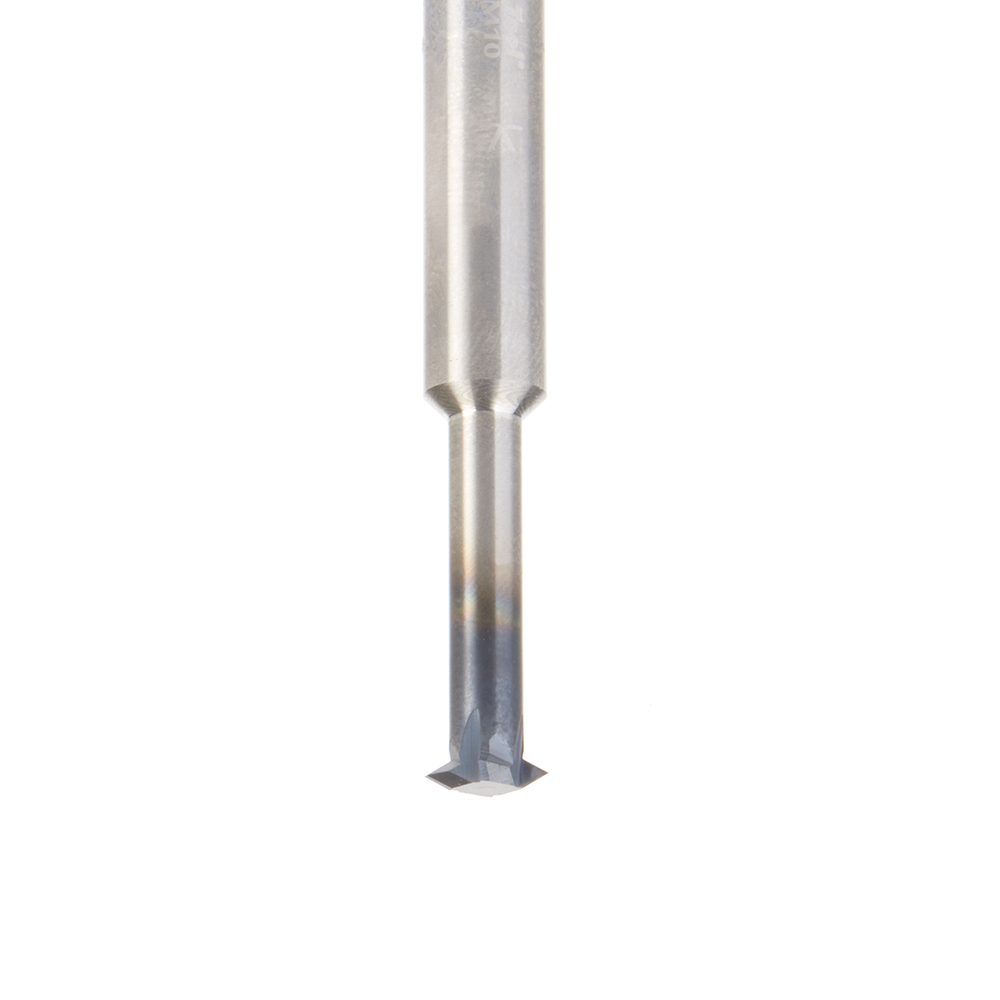

59416 CNC Solid Carbide Single Form Threadmill 8mm Dia x 24mm x 8mm Shank AlTiN Coated

#59416

Specification
Thread M10
(D) Diameter 8mm
D1 4.8mm
(B) Cutting Height 24mm
B1 1.85mm
(d) Shank 8mm
Overall Length (L) 63mm

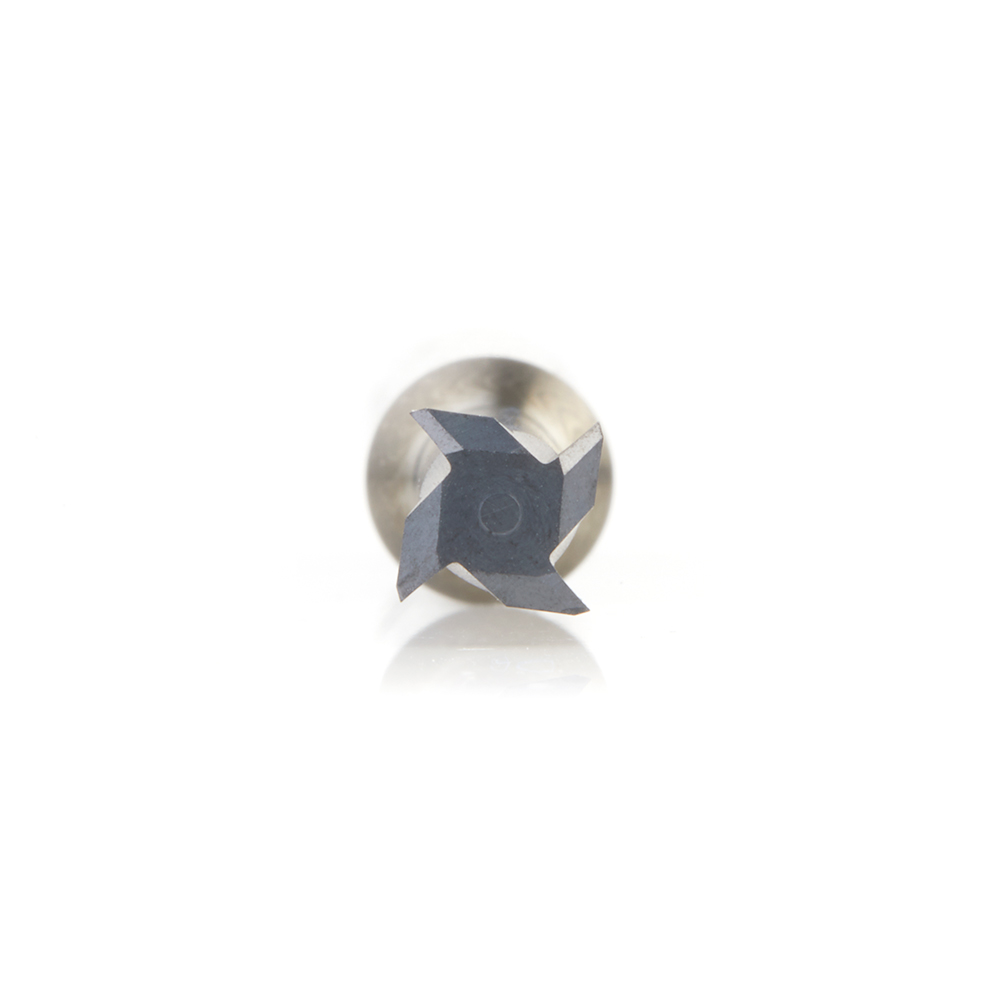

Flutes 4

Tool is designed to cut internal and external and can mill mulitple pitches.

  • Cuts internal and external 60º UN threads
  • Tip of included angle ground to a point

Premium Aluminum Titanium Nitride (AlTiN) coating provides quantum increases in productivity, either in terms of speed or longevity, with or without coolant.

Not for use in handheld drills or handheld routers.

Metric Thread Pitch

Bolt Diameter - StandarD Thread Pitch

M5 - .8mm
M6 – 1.0mm
M8 – 1.25mm
M10 – 1.5mm

Excellent for cutting:
  • Stainless Steel
  • Steel
  • Titanium
  • Cast Iron
Also for cutting:
  • Aluminum/Non-Ferrous Materials
  • Acrylic/Plastic

AlTiN Coating Benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life



WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.

 WARNING: Must have a CNC machine and the software to accept the programming needed to utilize helical circular interpolation.

Note: For optimal results and extended tool life use mist lubricant system or air cooling.
