61242 Insert Carbide Raised Panel 200mm (7-7/8) Dia x 24mm (15/16) x 1-1/4 Bore

#61242

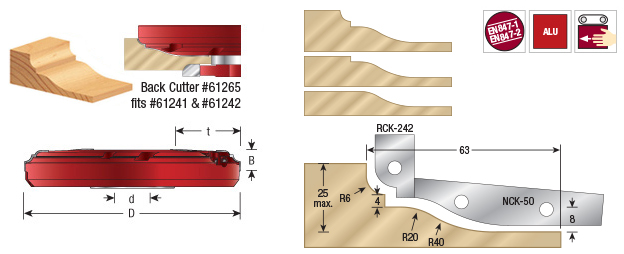

Specification
(D) Diameter200mm (7-7/8)
(d) Bore1-1/4
(B) Cutting Height24mm (15/16)
Max. t63mm (2-1/2)
RPM3,800-6,500
Teeth2+2
Replacement KnivesRCK-242
Profile2
TypeRaised Panel

Insert Raised Panel Shaper Cutters

Please or

Cutterheads in hard wearing aluminum, complete with two tungsten carbide knives and two scribes. Suitable for producing various raised panel profiles in softwood, hardwood and man-made boards. Raising or lowering the cutterhead on the spindle molder produces different profiles.

Solid Carbide KnivesWedgeHex ScrewTorx ScrewHex KeysTorx Key
WB-28 WB-38
