General Purpose Cut-Off ATB Grind Saw Blades

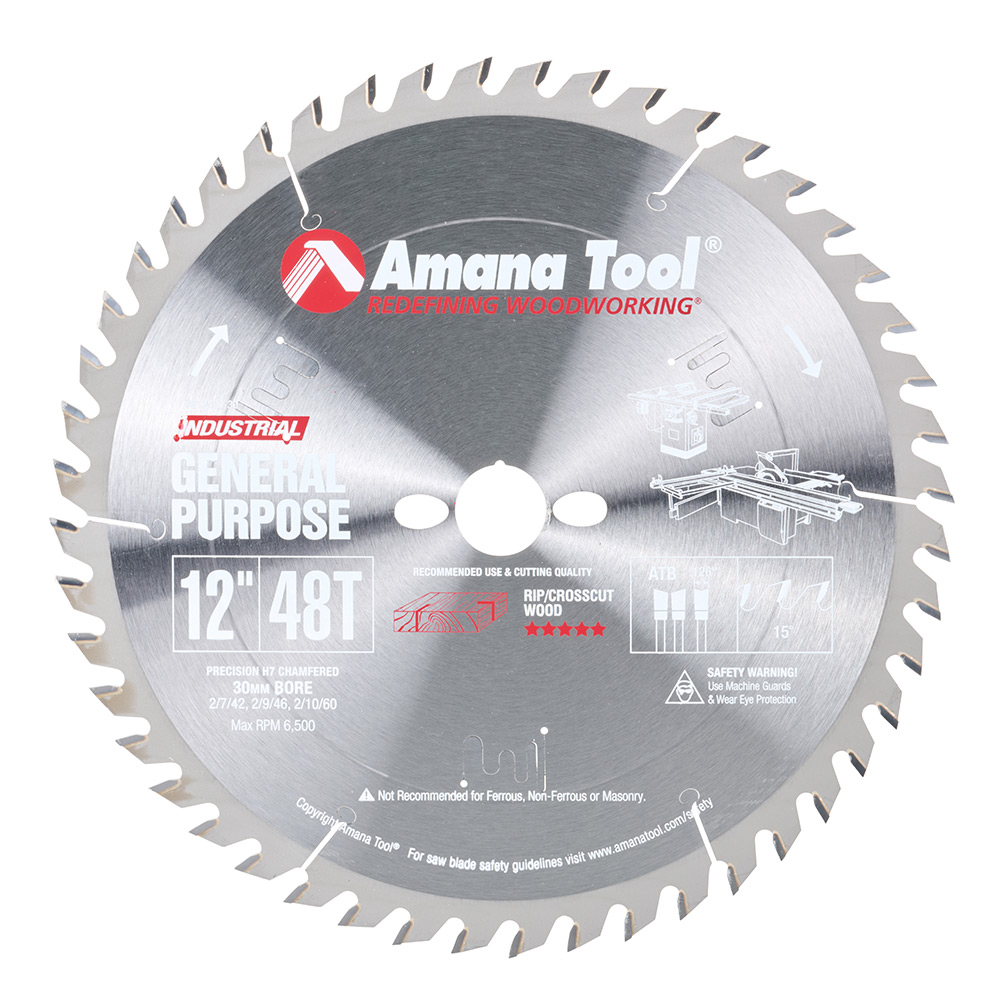

612480-30 Carbide Tipped General Purpose 12 Inch Dia x 48T ATB, 15 Deg, 30mm Bore
#612480-30
| (D) Diameter | 12 (300mm) |
|---|---|
| Teeth | 48 |
| (d) Bore | 30mm |
| Tooth Grind | ATB |
| Hook Angle | 15° |
| Kerf (B) | .126 (3.2mm) |
| Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
| Plate (C) | .087 (2.2mm) |
This blade has a 15° hook angle that improves the surface quality of the cut but increases the feed pressure required. This blade is a good choice for general purpose ripping and crosscutting of hardwoods and softwoods in a range of thicknesses, with occasional cutting of plywood and other man-made materials mixed in.
