Solid Surface Saw Blades

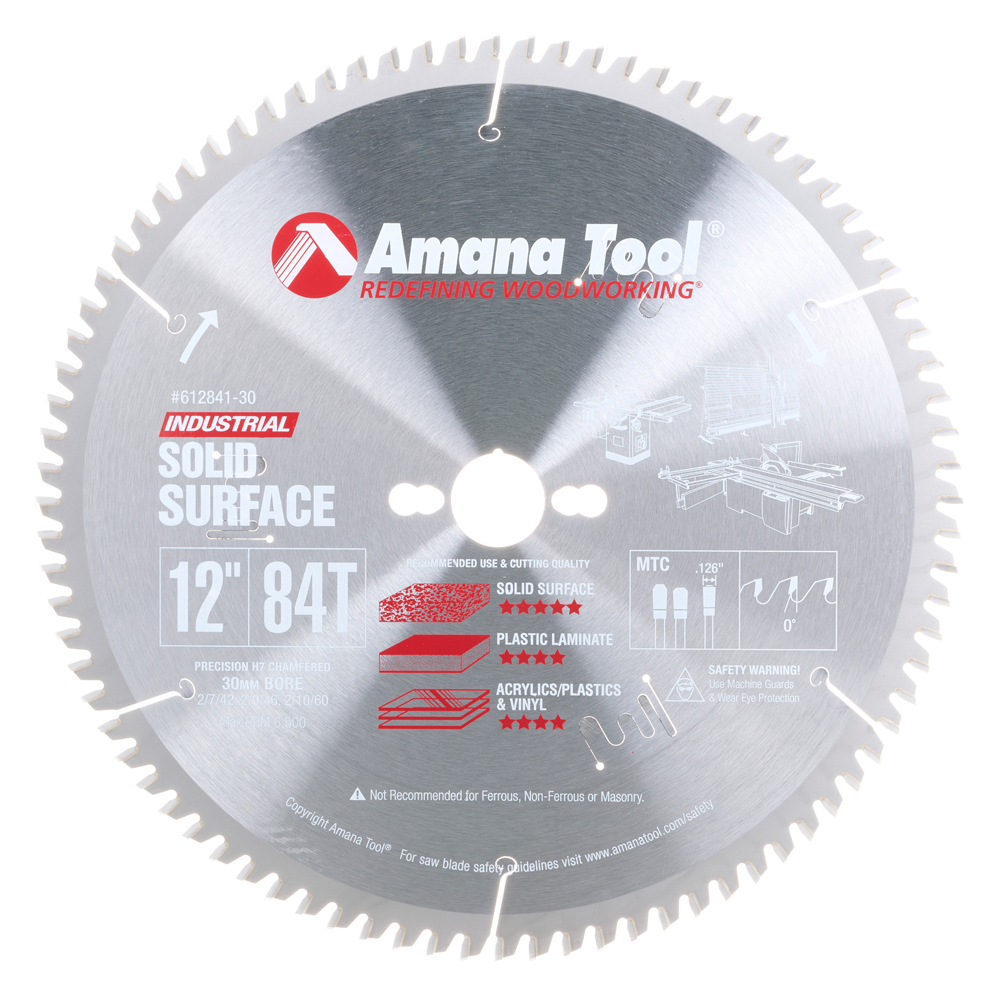

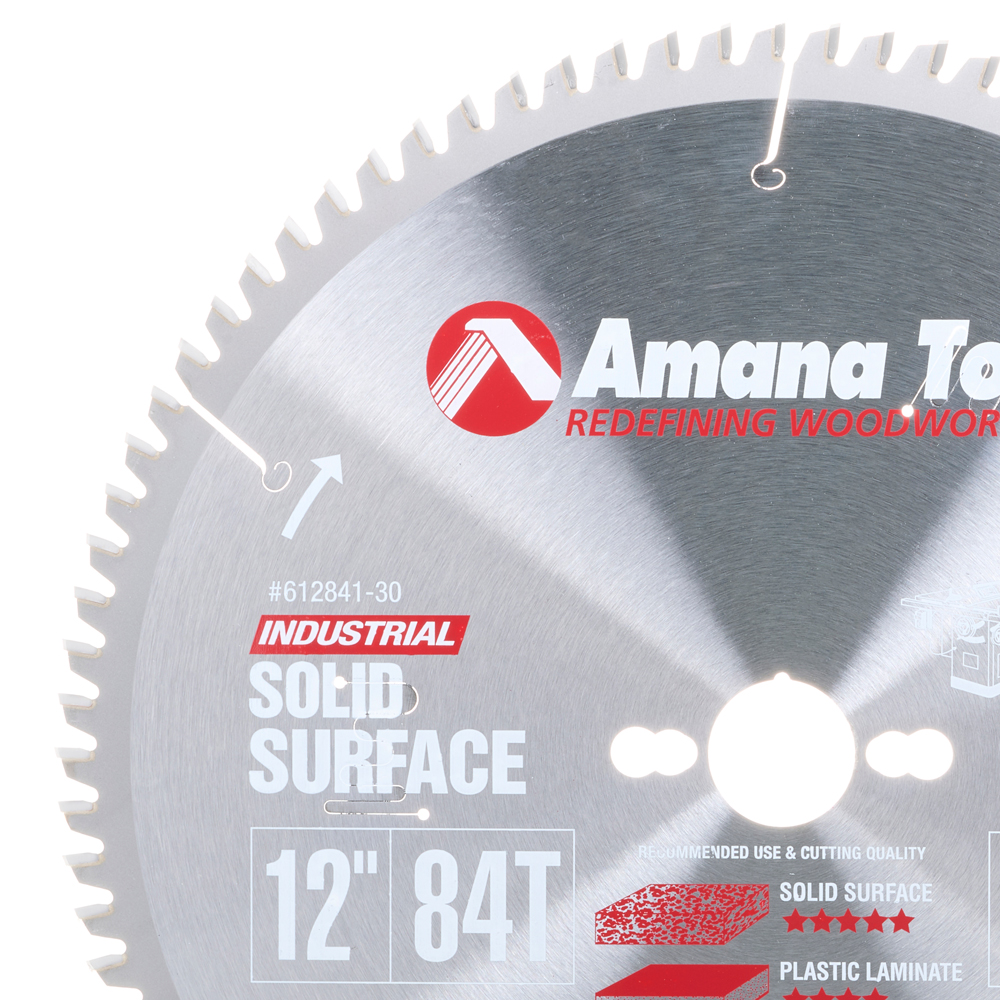

612841-30 Carbide Tipped Solid Surface 12 Inch Dia x 84T MTC, 0 Deg, 30mm Bore

#612841-30

Specification222
(D) Diameter 12 (300mm)
Teeth 84
(d) Bore 30mm
Tooth Grind MTC
Hook Angle
Kerf (B) .126 (3.2mm)
Pinholes 2/7/42, 2/9/46 & 2/10/60
Plate (C) .095 (2.1mm)

This blade is designed for cutting plastic laminate, Plexiglas®, and solid surface materials such as Dupont Corian®, Wilsonart®, Gibraltar® & Fountainhead®. The triple chip grind is especially configured to leave a swirl-free cut in solid surface materials. Thick, stable plate reduces vibration that degrades the cut and shortens tool life. The blade is suitable for a variety of saw configurations. The 0° hook angle virtually eliminates self-feeding when used with a radial arm saw.

Saw Blade Safety Guidelines

File Size : 1.55 MB
Create account or Login to download
