61303 Insert Carbide Steel Adjustable Chamfer -45 to +45 x 110mm (4-11/32) Dia x 40mm (1-1/2) x 1-1/4 Bore

#61303

Specification
(D) Diameter110mm (4-11/32)
(d) Bore1-1/4
(a°) Angle-/+45°
(B) Cutting Height40mm (1-1/2)
RPM7,000-9,000
Cutter BodySteel
Replacement KnivesRCK-40

Insert Adjustable Chamfer Shaper Cutters

Please or

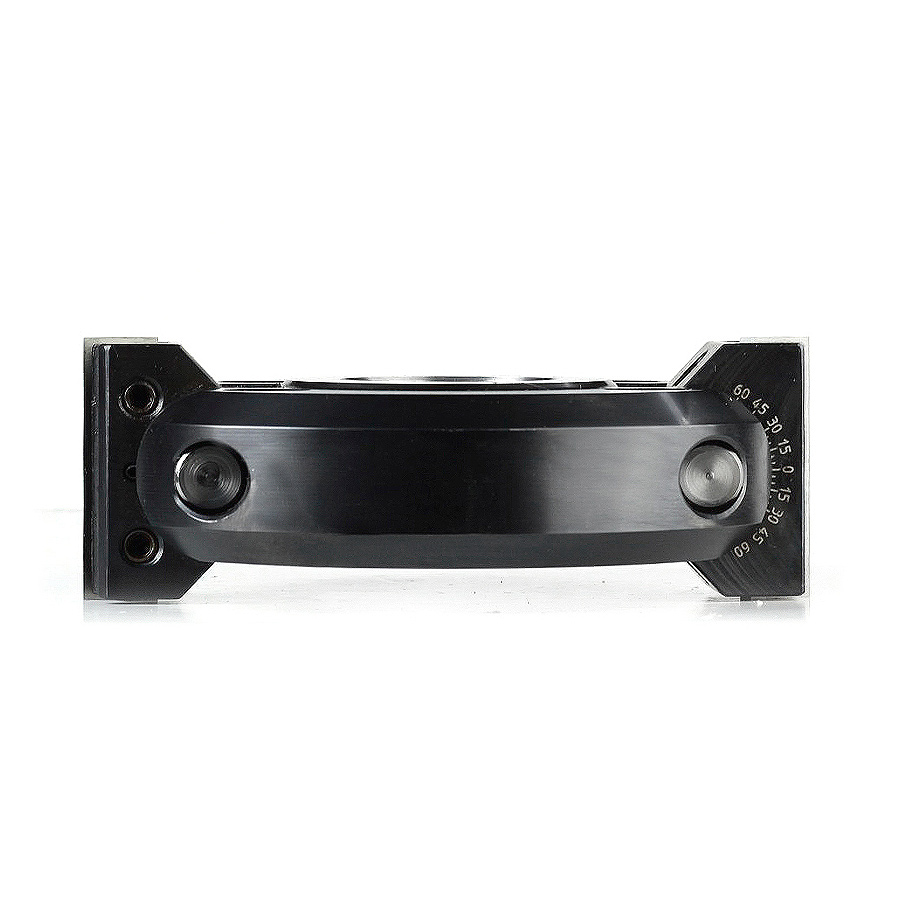

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Fine adjustment of 1° is also possible.

Solid Carbide Knife (2)WedgeHex ScrewLocking WedgeHex Key
WB-45 67199
