Insert Adjustable Chamfer Shaper Cutters

61304 Insert Carbide Aluminum Adjustable Chamfer -45 to +45 x 120mm (4-3/4) Dia x 40mm (1-1/2) x 1-1/4 Bore

#61304

Specification
(D) Diameter120mm (4-3/4)
(d) Bore1-1/4
(a°) Angle-/+45°
(B) Cutting Height40mm (1-1/2)
RPM6,000-8,500
Cutter BodyAluminum
Replacement KnivesRCK-40

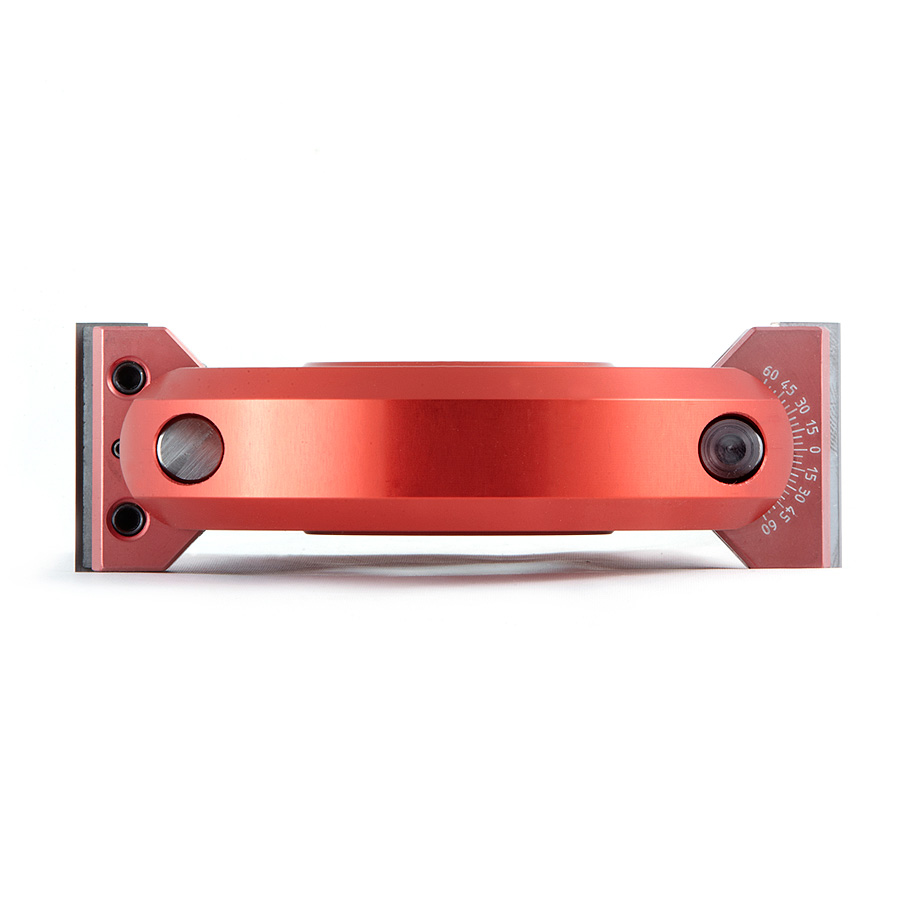

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Aluminum.

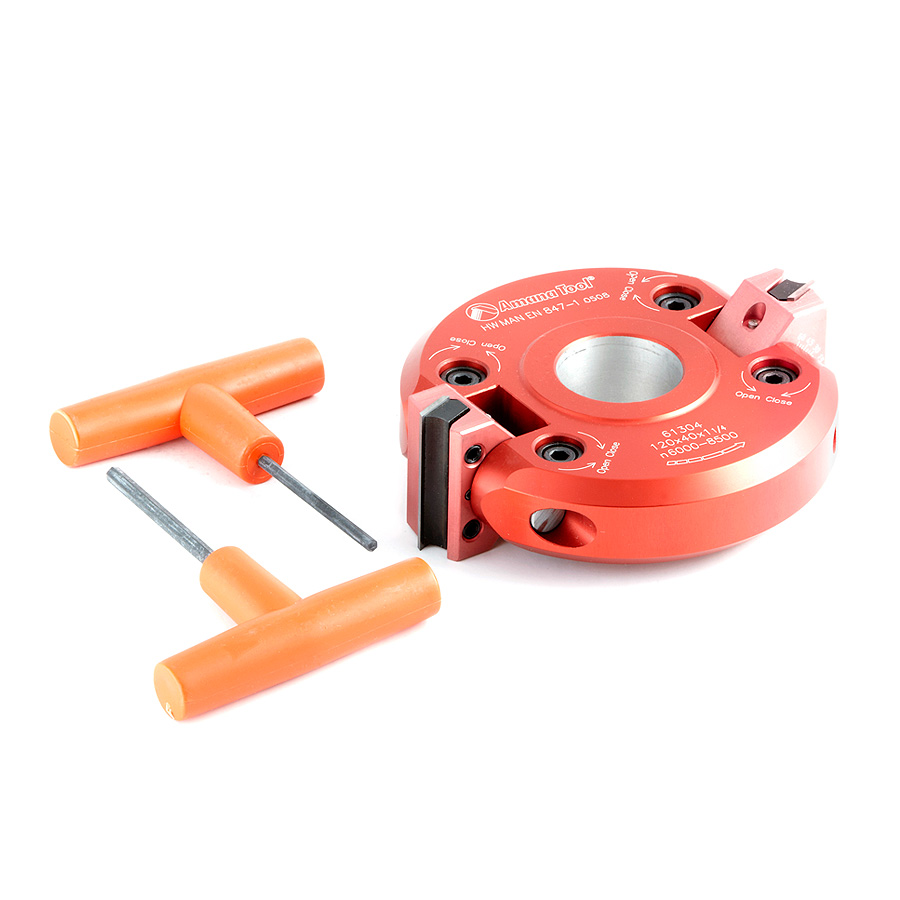

Solid Carbide Knife (2)WedgeHex ScrewLocking WedgeHex Key
WB-45
