Insert Adjustable Chamfer Shaper Cutters

61306 Insert Carbide Steel Adjustable Chamfer -67.5 to +67.5 x 130mm (5-1/8) Dia x 50mm (2) x 1-1/4 Bore

#61306

Specification
(D) Diameter130mm (5-1/8)
(d) Bore1-1/4
(a°) Angle-/+67.5°
(B) Cutting Height50mm (2)
RPM5,000-8,500
Cutter BodySteel
Replacement KnivesICK-50

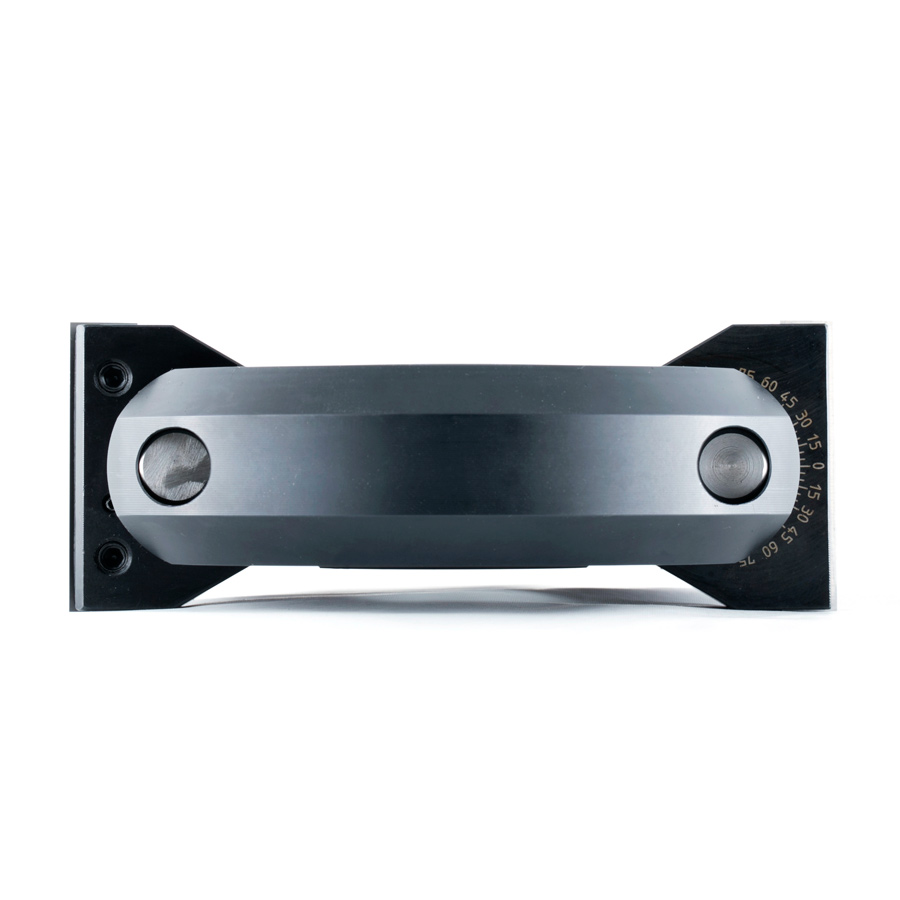

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale.

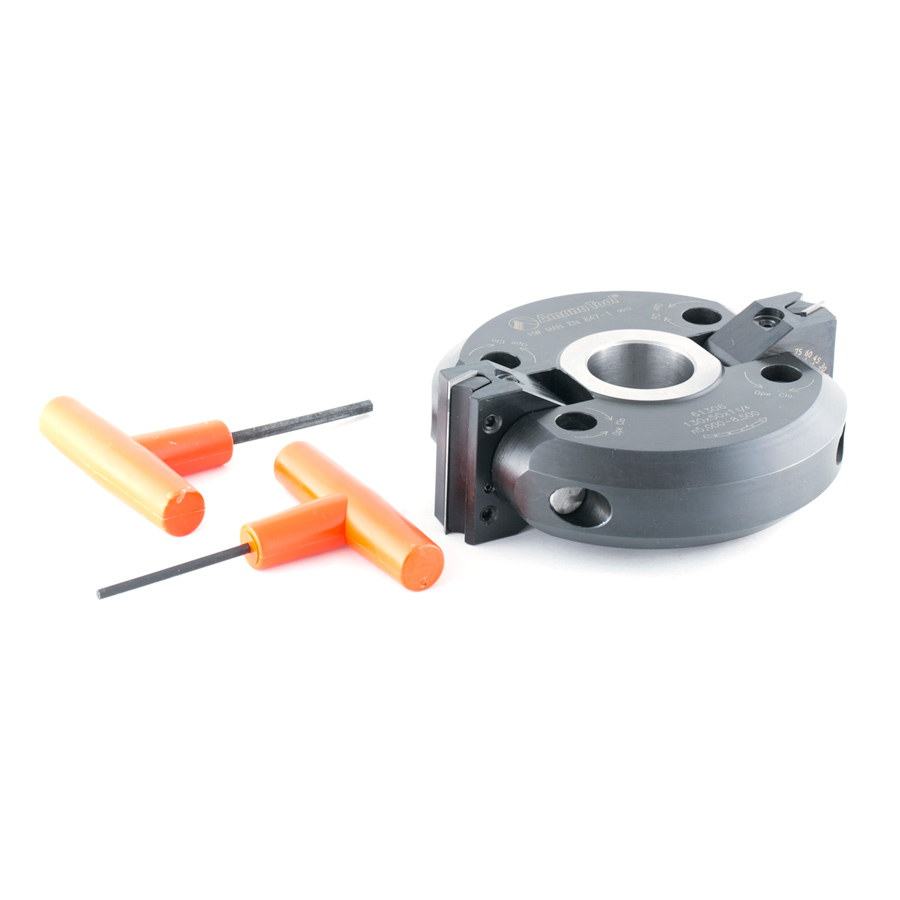

Solid Carbide Knife (2)WedgeHex ScrewLocking WedgeHex Key
WB-47 67199
