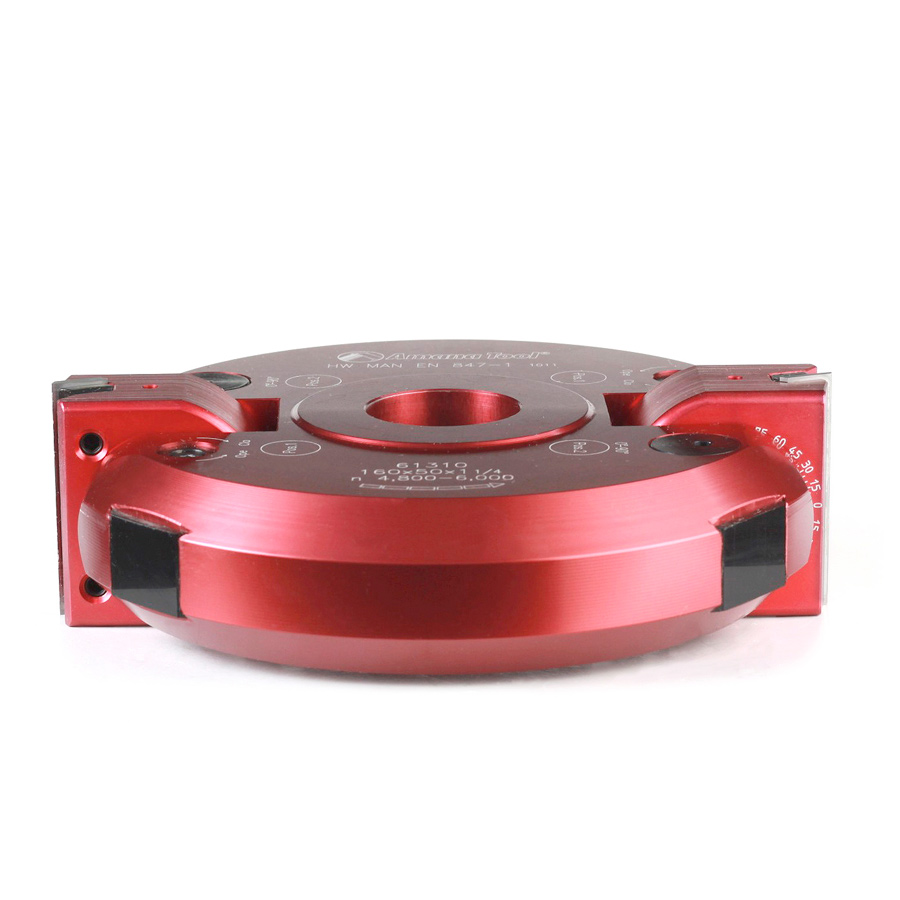

61310 Insert Carbide Aluminum Adjustable Chamfer -90 to +90 x 160mm (6-5/16) Dia x 50mm (2) x 1-1/4 Bore

#61310

Specification
(D) Diameter160mm (6-5/16)
(d) Bore1-1/4
(a°) Angle-/+90°
(B) Cutting Height50mm (2)
RPM4,800-6,000
Cutter BodyAluminum
Replacement KnivesICK-50

Insert Adjustable Chamfer Shaper Cutters

Please or

Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Fine adjustment of 1° is also possible. Tool has special mechanism to enable fine tuning angle of 1°. Aluminum.

Solid Carbide Knife (2)WedgeHex ScrewLocking WedgeHex Key
WB-47 67199
