Insert Adjustable Grooving Shaper Cutters with Scorer and Ring Nut 8 to 24mm

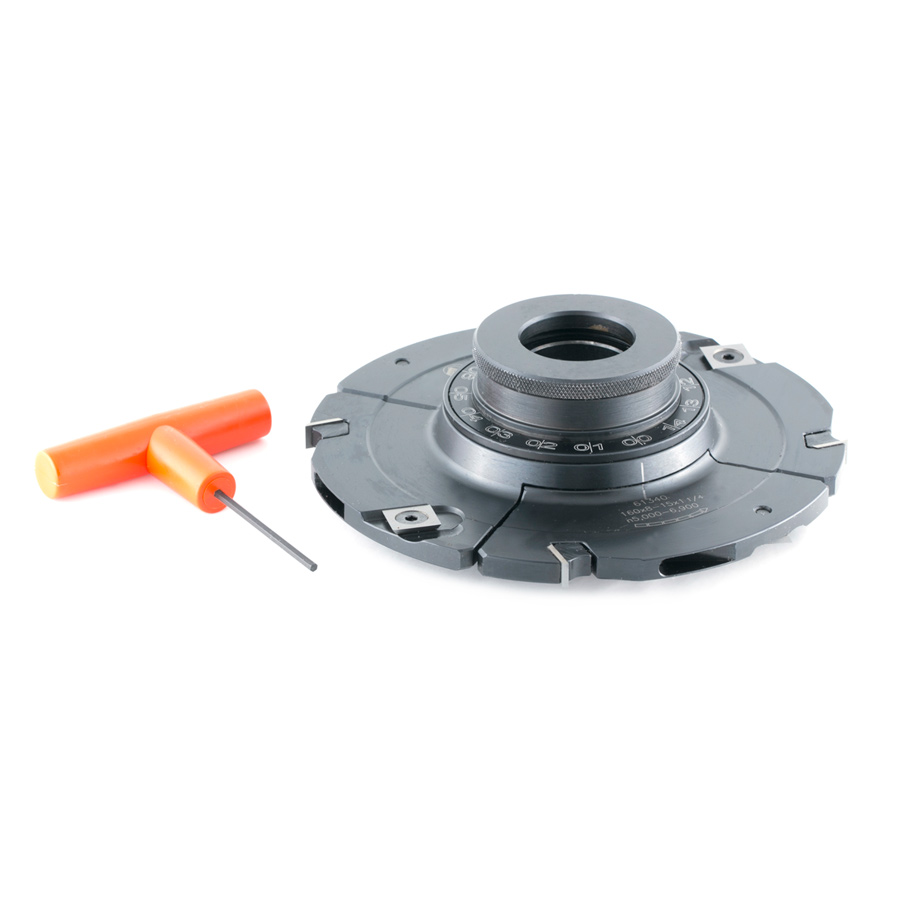

61340 Insert Carbide Adjustable Groove with Scorer & Ring Nut 160mm (6-5/16) Dia x 8 to 15mm (5/16 to 19/32) x 1-1/4 Bore

#61340

Specification
(D) Diameter 160mm (6-5/16)
(d) Bore 1-1/4
(B) Cutting Height 8 to 15mm (5/16 to 19/32)
Max. t 30mm (1-3/16)
RPM 4,800-8,300
Teeth 4+4
Replacement Knives AMA-17, RCK-70

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle.

General Purpose Solid Carbide Knife Scorer (4) | Straight Cutter (4)Diamond-Like Carbon (DLC) Solid Wood Solid Carbide Knife Scorer (4)Wedge (4)Torx ScrewHex ScrewTorx KeyHex Key
