Insert Adjustable Grooving Shaper Cutters with Scorer 4 to 7.5mm Kerf

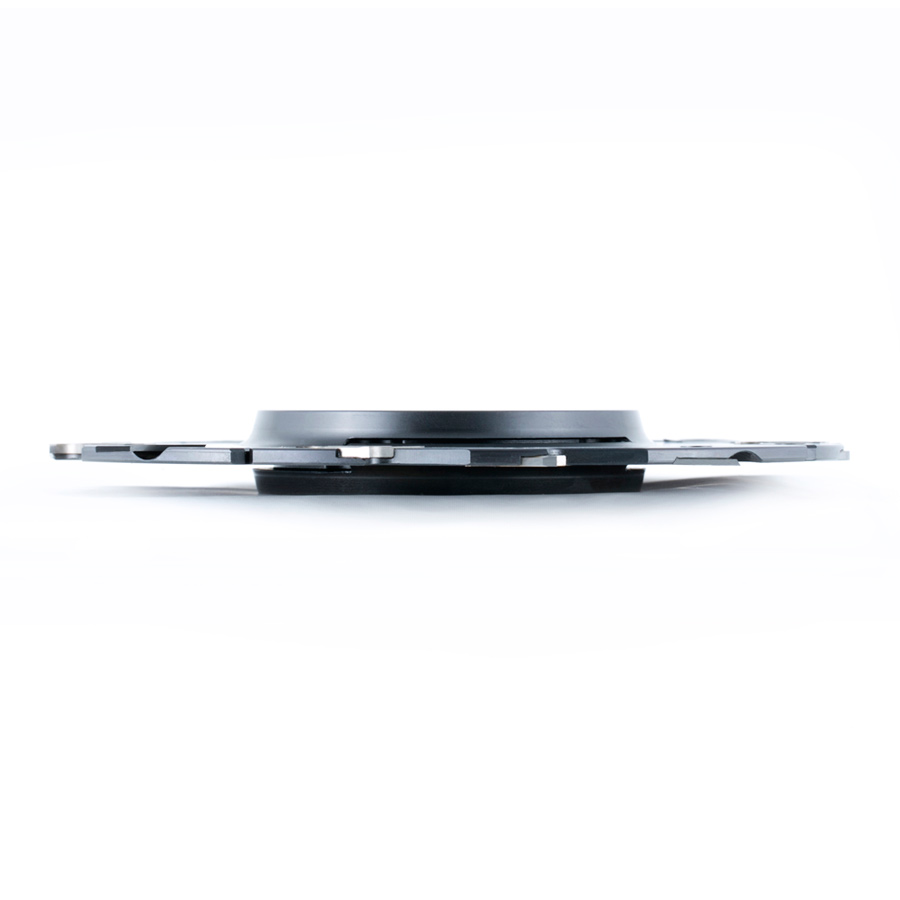

61350 Insert Carbide Adjustable Groove & Rabbet with Scorer 160mm (6-5/16) Dia x 4.0 to 7.5mm (5/32 to 19/64) x 1-1/4 Bore
#61350
(D) Diameter | 160mm (6-5/16) |
---|---|
(d) Bore | 1-1/4 |
(B) Cutting Height | 4 to 7.5mm (5/32 to 19/64) |
Max. t | 30mm (1-3/16) |
RPM | 4,800-8,300 |
Teeth | 8+4 |
E | 6.35mm (1/4) |
Replacement Knives | RCK-18, RCK-71 |
Hard wearing steel body complete with tungsten carbide knives & scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by using supplied spacer rings.
