Insert Adjustable Grooving and Rabbeting Shaper Cutters with Scorer 20.6 to 100mm

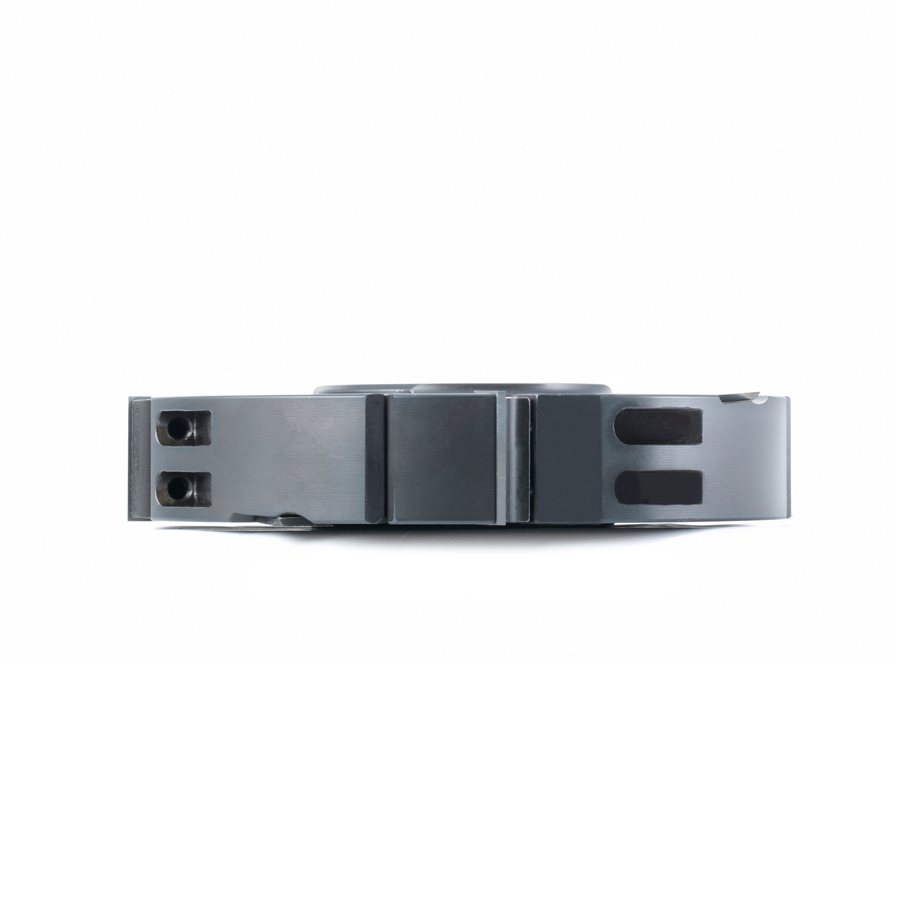

61356 Insert Carbide Adjustable Groove & Rabbet with Scorer 160mm (6-5/16) Dia x 30.6 to 60mm (1-7/32 to 2-3/8) x 1-1/4 Bore
#61356
(D) Diameter | 160mm (6-5/16) |
---|---|
(d) Bore | 1-1/4 |
(B) Cutting Height | 30.6 to 60mm (1-7/32 to 2-3/8) |
Max. t | 40mm (1-1/2) |
RPM | 4,800-8,000 |
Teeth | 4+4 |
Replacement Knives | RCK-30, RCK-70 |
Hard wearing steel body complete with tungsten carbide knives & scorer for improved finish. Suitable for producing various thickness grooves and rabbets in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by using supplied spacer rings.
General Purpose Solid Carbide Knife Scorer (4) | Straight Cutter (4) | Diamond-Like Carbon (DLC) Solid Wood Solid Carbide Knife Scorer (4) | Straight Cutter (4) | Wedge | Spacer Set | Torx Screw | Hex Screw | Torx Key | Hex Key |
---|---|---|---|---|---|---|---|
WB-32 |
