Plywood / Solid Wood / Chipboard Cutting Saw Blades For Extra Smooth Cut

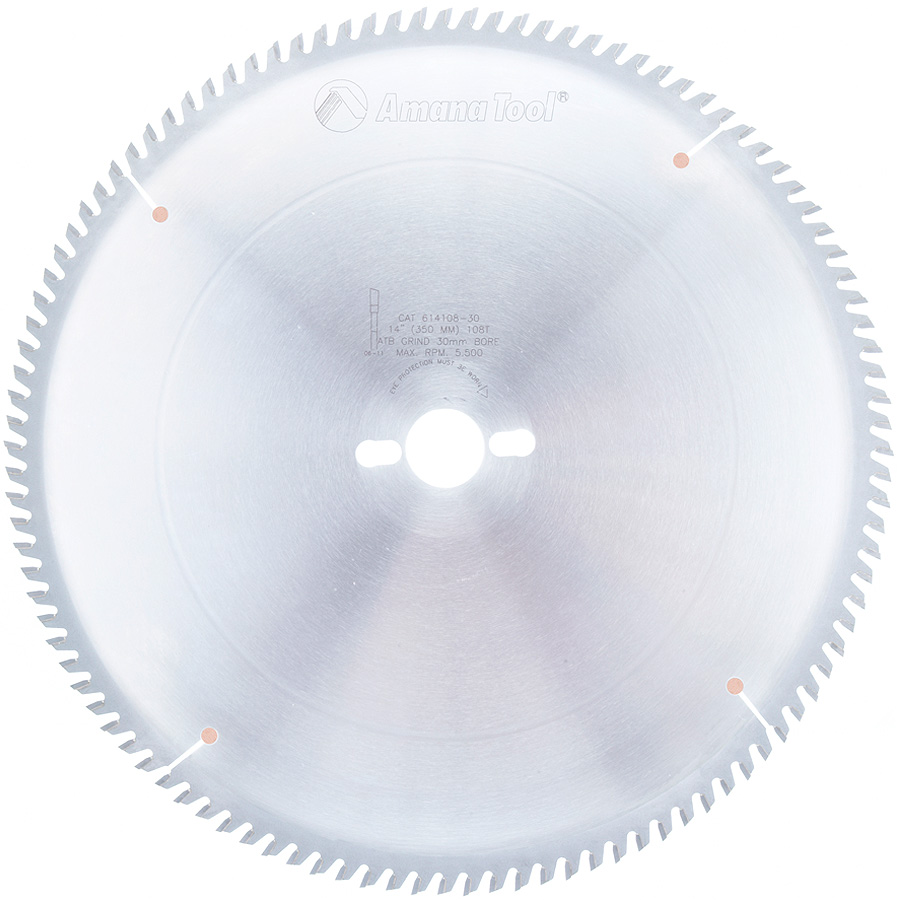

614108-30 Carbide Tipped Trim 14 Inch Dia x 108T ATB, 10 Deg, 30mm Bore

#614108-30

Specification
(D) Diameter14 (350mm)
Teeth108
(d) Bore30mm
Tooth GrindATB
Hook Angle10°
Kerf (B).137 (3.5mm)
Pinholes2/7/42, 2/9/46 & 2/10/60
Plate (C).098 (2.5mm)

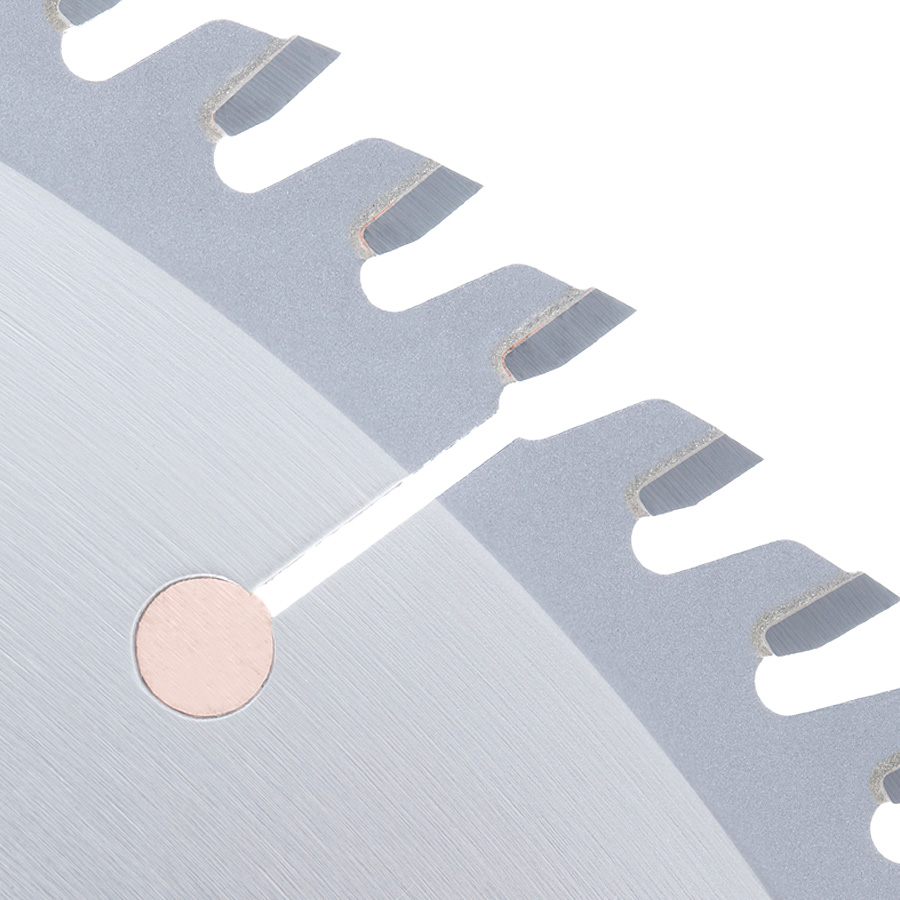

Our trim blade, suitable for use on table saws, sliding table saws, radial arms, and miter saws of all types, leaves a super-smooth finish when cutting hard or softwood. It is especially suited to trimming and sizing veneers and laminates, in single sheets or in stacks. The alternate top bevel grind and high tooth counts produce excellent, chip-free cuts. The 10° hook angle provides effortless feeding.

Saw Blade Safety Guidelines
