Single and Double Sided Laminate Cutting Saw Blades

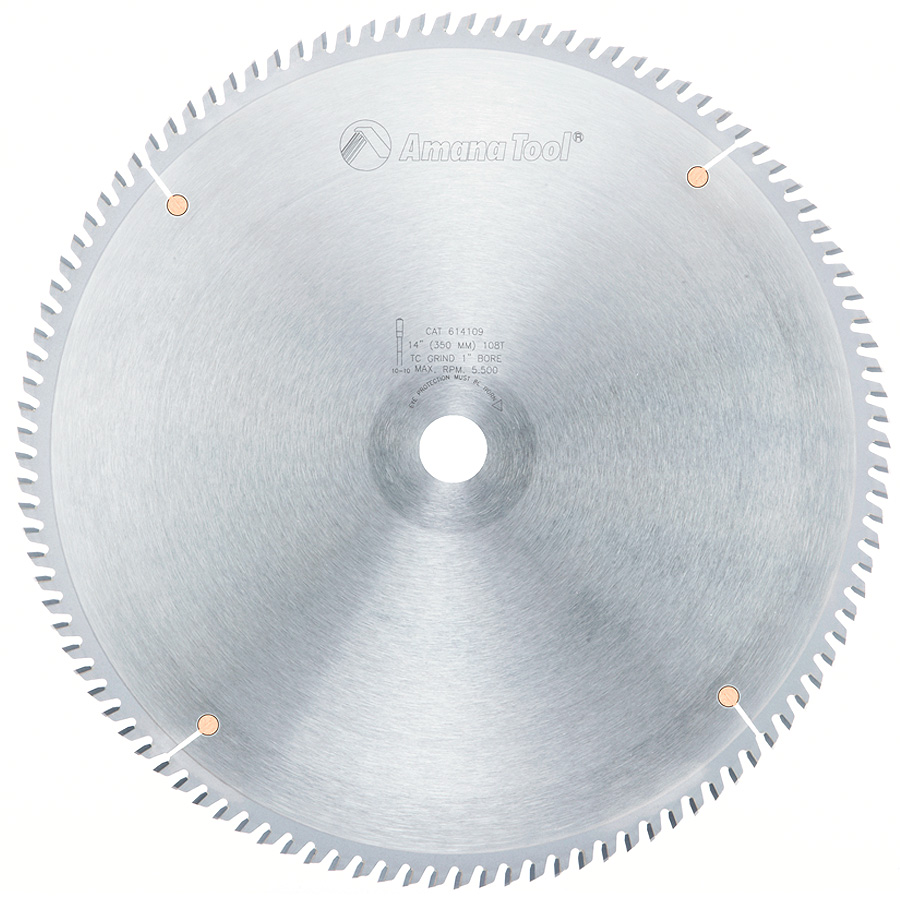

614109 Carbide Tipped Fine Cut-Off and Crosscut 14 Inch Dia x 108T TCG, 10 Deg, 1 Inch Bore

#614109

Specification
(D) Diameter 14 (350mm)
Teeth 108
(d) Bore 1
Tooth Grind TCG
Hook Angle 10°
Kerf (B) .137 (3.5mm)
Plate (C) .098 (2.5mm)

This blade is ideal for cutting materials with fragile surface layers, like veneers and laminates. High tooth counts yield smooth finishes. The 10° hook angle provides effortless feeding. The triple-chip tooth opens a narrow kerf, and the raker widens it.
